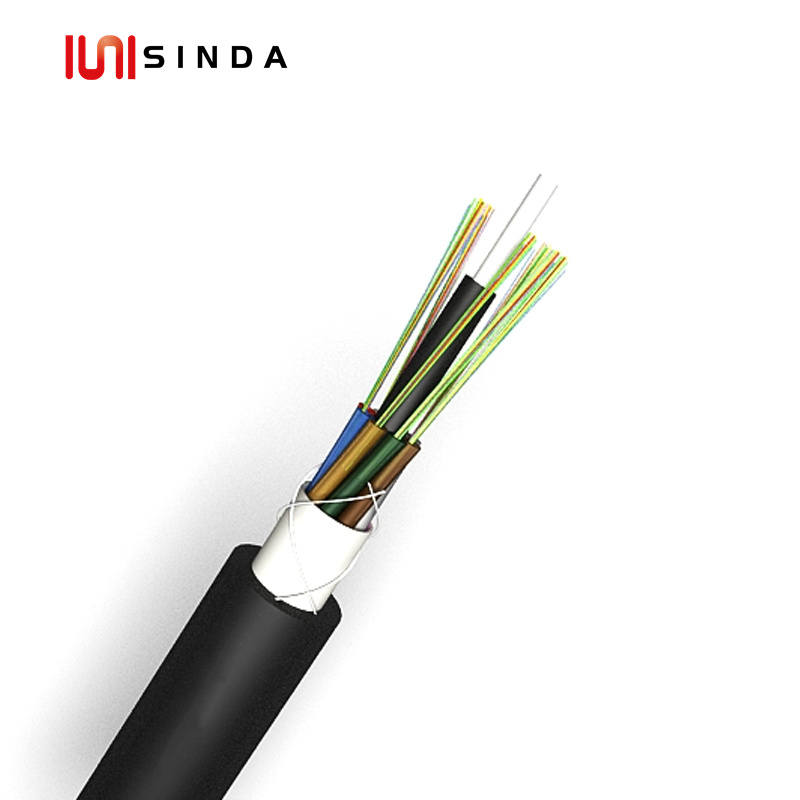

6 - 144 Core Air Blown Fiber Optic Cable

6 - 144 Core Air Blown Fiber Optic Cable

6 - 144 Core Air Blown Fiber Optic Cable,The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) wrapped with a layer of PE locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable is completed with a PE sheath.

Chat Now

Description

6 - 144 Core Air Blown Fiber Optic Cable,

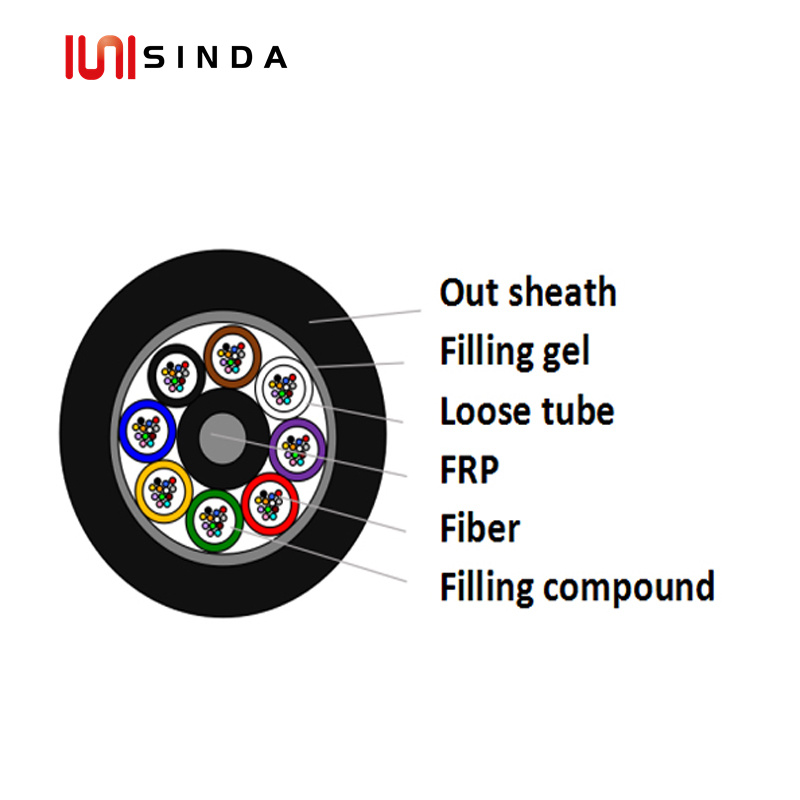

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) wrapped with a layer of PE locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable is completed with a PE sheath.

Features

Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Loose tube filling compound
100% cable core filling

Structure details

No. of fibers	6F	12F	24F	36F	48F	72F	96F	144F
No. of tubes	1	1	2	3	4	6	8	12
fibers per tube	6	12	12	12	12	12	12	12
Filler Rod	5	5	4	3	2	0	0	0
Tube diameter (±0.1mm)	1.55	1.55	1.55	1.55	1.55	1.55	1.55	1.55

Thickness of loose tube (±0.05mm)	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25

Out diameter (±0.5mm)	5.7	5.7	5.7	5.7	5.7	5.7	6.7	8.8
Thickness of out sheath(±0.1mm)	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5

Loose tube	Material	PBT			Color	Standard spectrum
Central strength member	Material	FRP			Diameter	1.5mm
	Layer material	PE ( for 96F-144F only)

Water blcoking system	Material	Filling gel
Out sheath	Material	PE			Color	Black

Mechanical and environment performance

Tensile strength	Long term（N）	300N
	Short term（N）	800N
Crush load	Long term	200N/100mm
	Short term	500N/100mm
Bending radius	Dynamic	20D
	Static	10D
Storage Temperature	-20℃～+70℃
Installation Temperature	-10℃～+60℃

Fiber Performance

Fiber style	Unit	SM G652D	MM 50/125	MM 62.5/125
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.22	≤3.0/1.0	≤3.0/1.0
Cladding diameter	um	125±1	125±1	125±1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±7	242±7	242±7

Applications

Adopted to outdoor distribution.
Adopted to trunk power transmission system.
Access network and local network in high electromagnetic interfering places.
