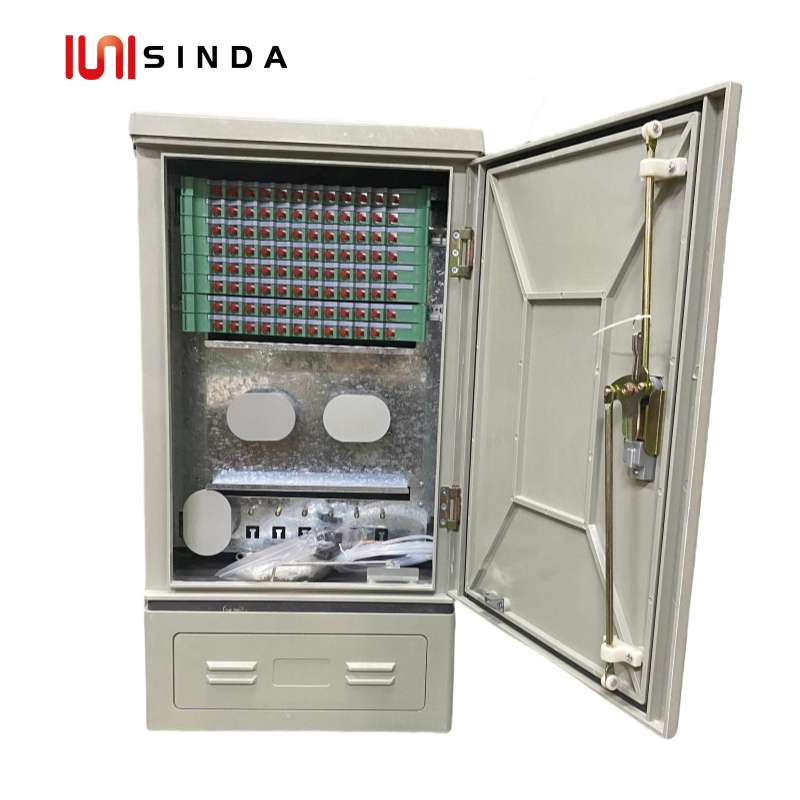

96C/144C/288C/576C SMC Cabinet

Features

1.The equipment is protected all-weather. The shell is made of high-strength anti-corrosion special synthetic material, which has the characteristics of heat insulation, waterproof gas condensation, etc., and can effectively prevent the influence of any harsh environment such as rain, snow, insects and corrosive gases.

2.The structural design is reasonable. The box adopts single-sided lockable door, and the wiring space in the box is large, which is convenient for operation and maintenance.

3.Have grounding device.

4.Internal optical path is clearly marked, splicing and coiling position are clear.

5.Compact structure, easy installation and excellent sealing performance.

6.The fusion part adopts integrated fiber tray, which integrates adapter installation, fiber fusion and storage. The splitting part adopts splitter module.

7.Safe optical fiber curvature radius protection structure.

8.For ribbon and non-ribbon cable. 9.Meet UL94-V0 standard.

Working Environment Working temperature：-40℃～+45℃　

Storage temperature：-40℃～+60℃

Relative humidity：≤95%

Atmospheric pressure：70Kpa～106Kpa

Main Technical Performance Working wavelength: 1310nm～1550nm

The insertion loss for the connectors: ≤0.2dB

Return loss：APC≥60dB；UPC≥50dB；PC≥40dB

The insulation resistance between the grounding device and the metal accessories in the cabinet ≥2×104MΩ

Temperature performance: -55℃～55℃±2℃

Thermal performance: the box is made of special material with superior heat insulation performance.

Sealing performance: dustproof, superior GB4208/1P53 requirements.

Waterproofing: the water droplets will not enter in the box after being caught in the rain in 15 minutes with 80Kpa pressure

Cabinet static load capacity：shell cover ≥1000N Lateral surface ≥500N Door hinge ≥300N Anti-shock capability: using the impact test bed, in the X，Y,Z three axis to impose six each, the peak acceleration is 300m/ S2 ,duration 6ms of the impact, without any damage and injuries. Collision durability ≥250N/cm2 Seal of life: more than 10 years Fiber bending radius: ≥ 40mm.

Specifications

Quality Certification

Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber Box is 100% optically inspected  before you receive it.

High Quality Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
