DIN Rail Fiber Optic Splice Termination Box

DIN Rail Fiber Optic Splice Termination Box

DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Chat Now

Description

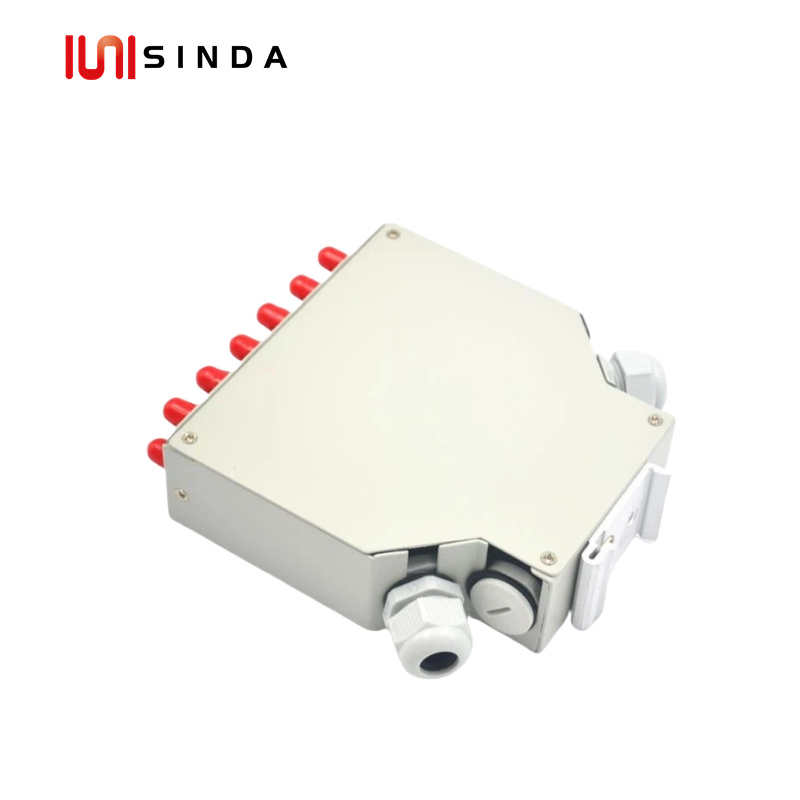

DIN Rail Fiber Optic Splice Termination Box

Features

Aluminum, electrostatic painting

Suitalbe for different adapters: FC, SC, ST, LC …

2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports

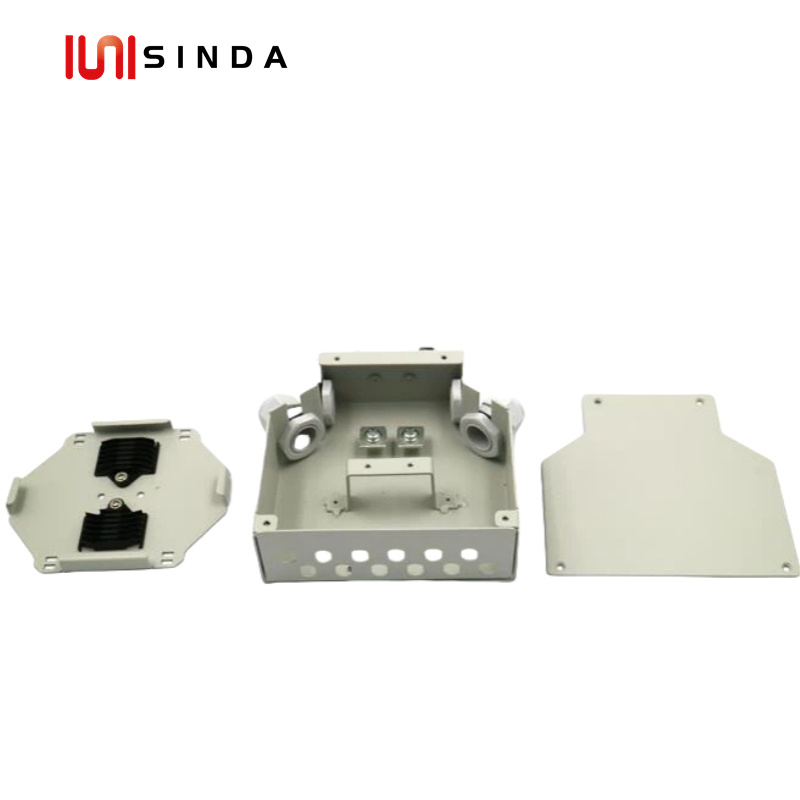

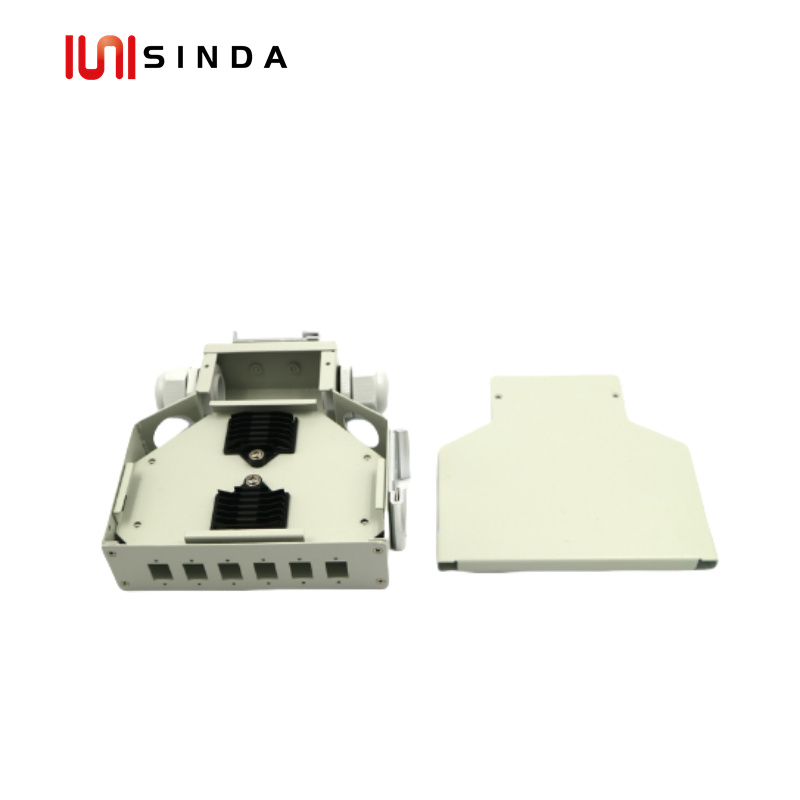

Splicing module of 12 fibers inside

Max. 12pcs adapters can be loaded

Application

Suitable for Pigtail, ribbon and bunch cable connect distribution

Used for wall-mounted applications

Used in FTTH, Telecommunications, CATV ect.

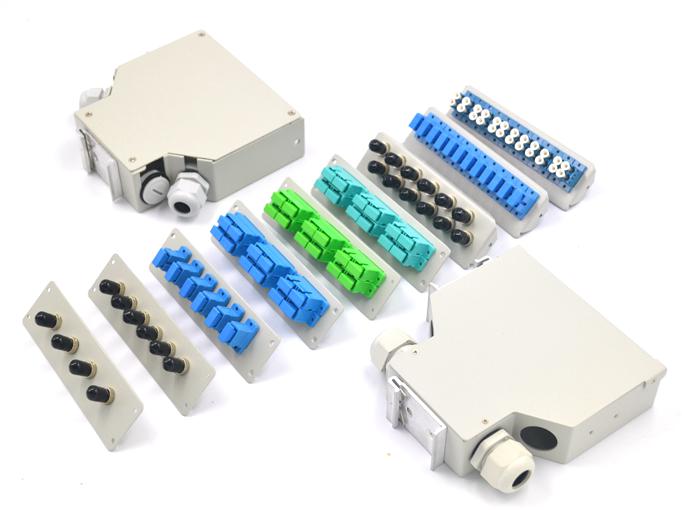

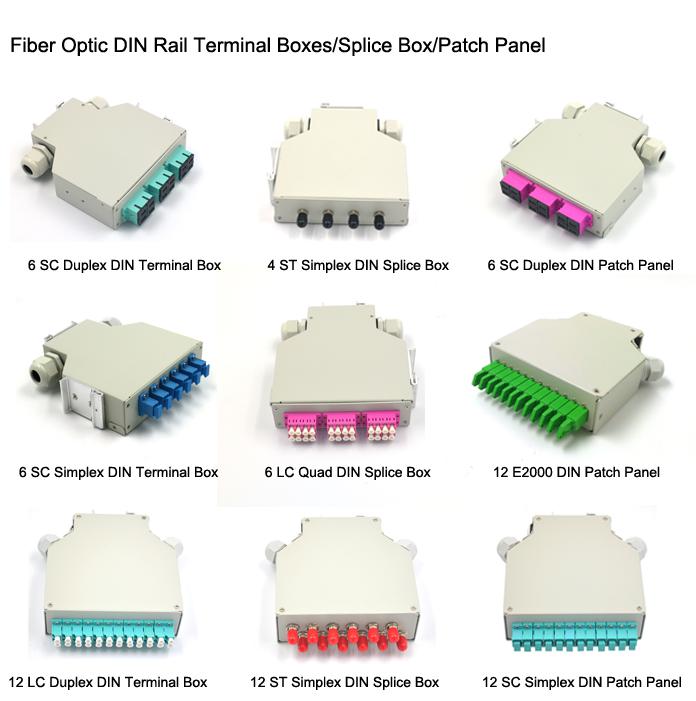

Front Panels

6 SC duplex adapters

6 ST/LC duplex adapters

4/6 ST simplex adapters

8 LC simplex adapters

8 LC Duplex adapters

12 SC/LC simplex adapters

12 LC duplex adapters

12 ST simplex adapters

Others on request

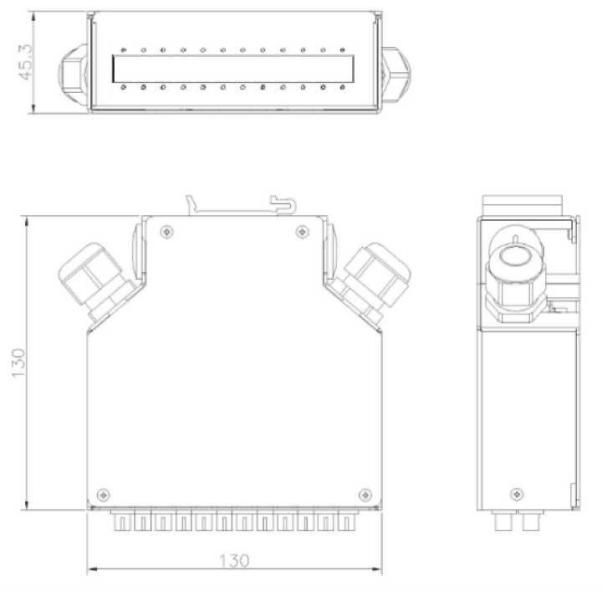

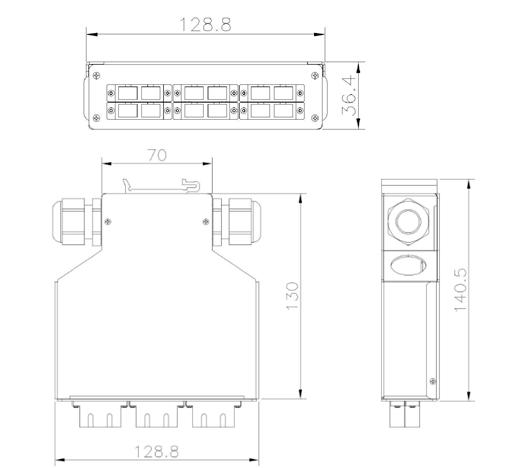

Specifications

TYPE One-----For 4/6 ST Simplex Adapters, 6 SC Duplex Adapters, 6 LC Duplex Adapters, 6 ST Duplex Adapters,8 LC Simplex Adapters

TYPE Two--- For 8 SC Simplex Adapters, 8 LC Duplex Adapters,12 SC Simplex Adapters, 12 ST Simplex Adapters, 12 LC Simplex Adapters, 12 LC Duplex Adapter

More different plate

Packing info

Description	HS code	Qty	Cardbord SIZE	Total G.W(kg)
DIN Rail box Series full loaded with LC	8536700000	20	433618CM	30

Hot Tags : Enclosure din rail Fiber DIN rail termination box DIN Rail Box DIN Rail Terminal Box Fiber Din Rail box
