FC Female to SC Female Hybrid Simplex Single Mode/Multimode Copper Fiber Optic Adapter/Coupler with Flange
FC Female to SC Female Hybrid Simplex Single Mode/Multimode Copper Fiber Optic Adapter/Coupler with Flange, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
FC Female to SC Female Hybrid Simplex Single Mode/Multimode Copper Fiber Optic Adapter/Coupler with Flange
The FC-SC Hybrid Fiber Optic Adapter is a special style of fiber optic adapter that supports the precision connection of different types of fiber optic connectors. It is specially designed to incorporate the Small Form Factor FC into SC configured environment. The compact design enables network operators to reduce costs via space savings, and by eliminating hybrid cable assemblies.
Features
≤0.2dB (Typical) Low Insertion Loss
Zirconia Ceramic Sleeve with High-precision Alignment

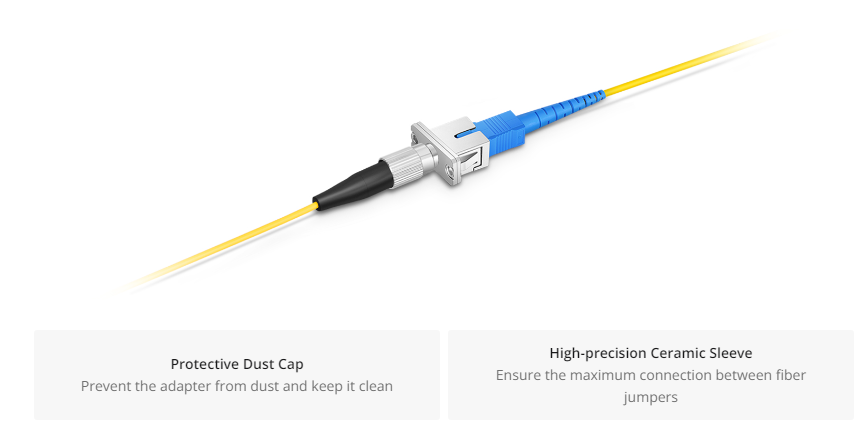

Protective Dust Cap Keeps Adapter’s Interior Clean from Dust
Stainless Steel Clips for Tool-less Snap-in Installation
Can be Used with M2 Model Screw
Specifications
Connector Type | FC/UPC Female | Connector 2 | SC/UPC Female |
Body Style | Simplex | Fiber Mode | Single Mode/Multimode |
Insertion Loss | ≤0.2dB | Durability | 1000 times |
Flammability Rate | UL 94V-0 | Working Temperature | -25~70°C |
Applications
Extending Fiber Connection with Adapters,With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.
