LC Uniboot Push-Pull (Switch Polarity)

LC Uniboot Push-Pull (Switch Polarity)

SINDA Technologies designed the first version of LC connectors as a solution to make a connector smaller than SC in order to stack more connectors in 1U panels. This invention dramatically boosted the density of data center panels. Later, the necessity for bi-directional communications in fiber infrastructure necessitated the development of a new solution. Technicians needed asolutions for patching two LC connectors at the same time. This resulted in the adoption of duplex connectors, which feature two LC connectors in one housing. But duplex connectors still needed to have two separate or joined fiber cords. Nonetheless, increasing fiber panel density doubled the number of fiber cables connected to each panel, necessitating greater cable management. Uniboot LC connectors fixed this issue by unifying the connectors and fiber cords as well. Consequently, cable clutter became minimal, and patch panel cable management became considerably easier.

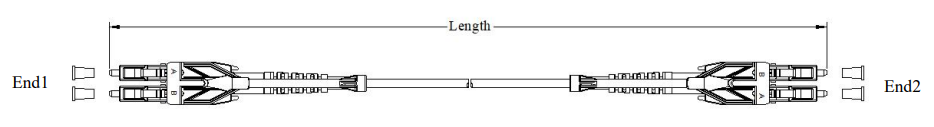

Dimensional Diagrams

1.LC Uniboot Push-Pull (Switch Polarity) 3.0mm patchcord

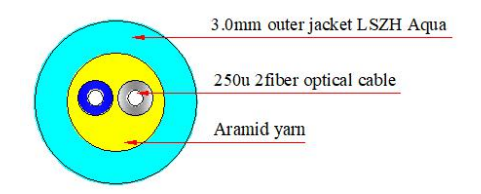

Cable Structure

Features

1.Uniboot with a Single Housing

2.Unique Push-Pull Design and Function

3.Interchangeable polarity

4.Low insertion loss and added loss.

5.Height of attenuation.

6.High back loss, small volume, light weight.

7.End-face geometry and quality superior than IEC and Telcordia standards.

8.LSZH, OFNP, OFNR cable jacket.

9.Mechanical performance: IEC 61754-20 standard.

10.RoHS and REACH materials compliant.

Specifications

Application

1.Data Centers

2.Local Area Networks

3.High-Density Applications

4.Interconnects

5.Cross-connects

Quality Certification
