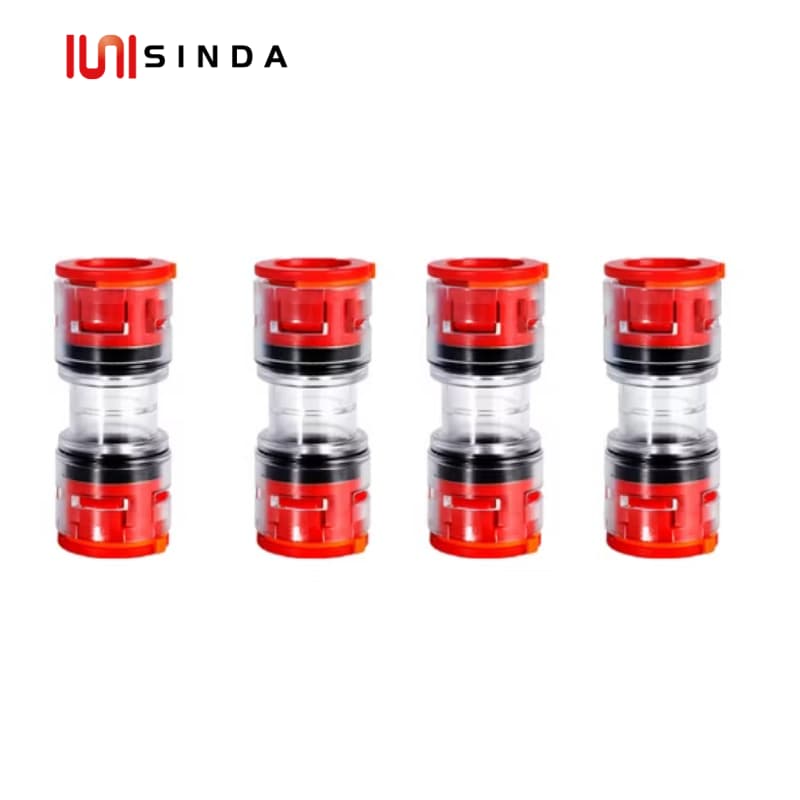

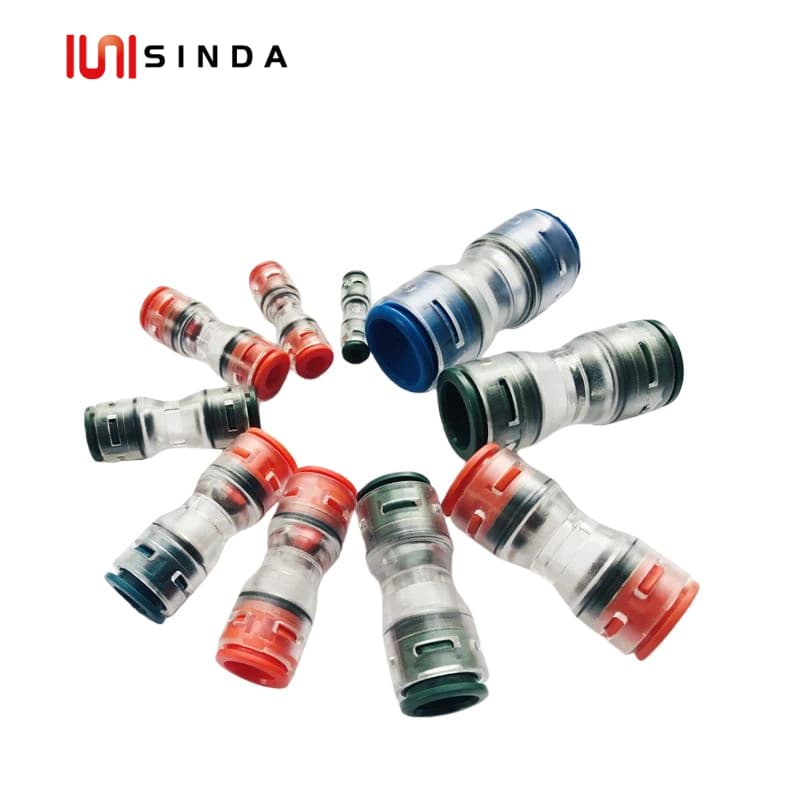

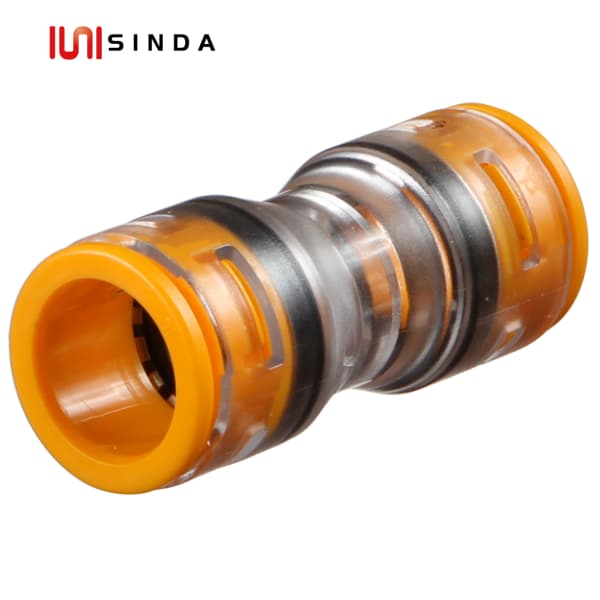

Microduct Straight Connector

For 3-25 mm Microducts.
Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.

Chat Now

Description

These connectors were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.

Specification

Materials :	1. Collar	POM
	2. Sleeve	POM
	3 .Lock Claw	Stainless steel
	4. Washer	POM
	5. Seal	EPDM
	6. Body	Polycarbonate
Fluid		Compressed air with a blowing system
Working pressure		15 Bar used for the blowing system
Working temperature		From -20℃ to +50℃
Protection class		IP68
Estimated life		25 years
Standards		EN 50411-2-8 Rohs
Microduct to connect		Polyethylene HDPE
Microduct outer diameters		Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20
Patent		Connectors patent

Order Informations

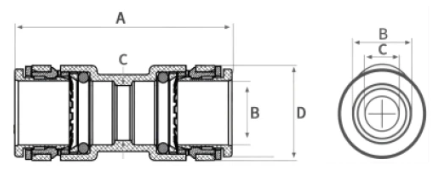

Product Code	Description	for Microduct OD/IDφ(mm)	A	B	C	D
SDPU3/2.1	Straight Connector 3/2.1mm	3/2.1	27.8	3.3	2.3	8.3
SDPU4/2.5	Straight Connector 4/2.5mm	4/2.5	36.2	4.2	2.8	11.8
SDPU4/2.8	Straight Connector 4/2.8mm	4/2.8	36.2	4.2	3.1	11.8
SDPU5/2.1	Straight Connector 5/2.1mm	5/2.1	36.2	5.2	2.3	11.8
SDPU5/3.5	Straight Connector 5/3.5mm	5/3.5	36.2	5.2	3.7	11.8
SDPU6/4	Straight Connector 6/4mm	6-4	36.2	6.3	4.3	12.6
SDPU7/3.5	Straight Connector 7/3.5mm	7/3.5	38.8	7.3	3.7	14.8
SDPU7/4	Straight Connector 7/4mm	7-4	38.8	7.3	4.2	14.8
SDPU7/5.5	Straight Connector 7/5.5mm	7/5.5	38.8	7.3	5.7	14.8
SDPU8/5	Straight Connector 8/5mm	8-5	38.8	8.3	5.3	14.8
SDPU8/5.5	Straight Connector 8/5.5mm	8/5.5	38.8	8.3	5.8	14.8
SDPU8/6	Straight Connector 8/6mm	8-6	38.8	8.3	6.3	14.8
SDPU10/6	Straight Connector 10/6mm	10-6	43.0	10.3	6.3	16.6
SDPU10/8	Straight Connector 10/8mm	10-8	43.0	10.3	8.3	16.6
SDPU12/8	Straight Connector 12/8mm	12-8	47	12.4	8.3	19.0
SDPU12/10	Straight Connector 12/10mm	12-10	47	12.4	10.4	19.0
SDPU14/10	Straight Connector 14/10mm	14-10	49.8	14.5	10.4	21.5
SDPU14/12	Straight Connector 14/12mm	14-12	49.8	14.5	12.4	21.5
SDPU16/12	Straight Connector 16/12mm	16-12	55.2	16.5	12.4	24.4
SDPU16/13	Straight Connector 16/13mm	16/13	55.2	16.5	13.4	24.4
SDPU16/14	Straight Connector 16/14mm	16/14	55.2	16.5	14.4	24.4
SDPU18/14	Straight Connector 18/14mm	18/14	69.0	18.5	14.5	29.0
SDPU20/14	Straight Connector 20/14mm	20/14	83.4	20.6	14.5	33.5
SDPU20/15	Straight Connector 20/15mm	20/15	83.4	20.6	15.5	33.5
SDPU20/16	Straight Connector 20/16mm	20/16	83.4	20.6	16.5	33.5
