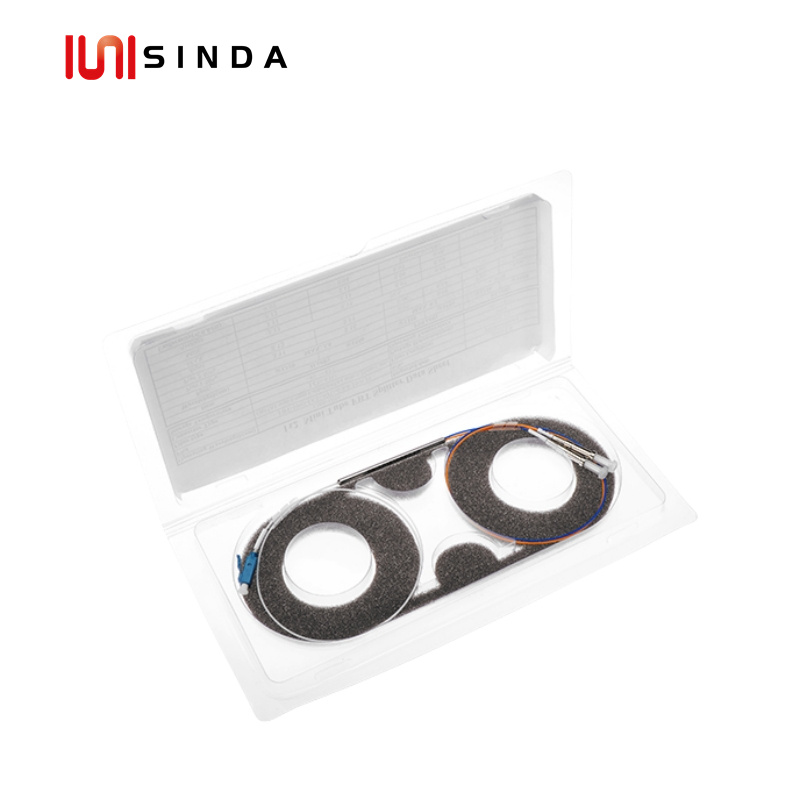

Mini tube FBT Splitter 0.9mm 1xN,The Fused Biconic Taper (FBT) coupler, also called the FBT splitter, is to bundle together two or more optical fibers and then pulls the cone machine to melt stretching.
Mini tube FBT Splitter 0.9mm 1xN,
Real-time monitoring of the change of the ratio and spectral ratio requirements after melt stretching, one side retains a single fiber (the rest of the cut) as input, and the other end is a multi-channel output.
Features
Low insertion loss and low PDL
Wide operating wavelength range
Compact design
High reliability
High channel counts
Wide operating temperature range
Customized packaging and configuration
Specifications
| Parameter | 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×48 | 1×64 | 1×128 |
| Insertion loss(dB) | 3.9 | 6.1 | 7.2 | 9 | 10.2 | 12.5 | 13.5 | 15.5 | 16.8 | 18.4 | 20.1 | 23.8 |
| Uniformity(dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | 1.8 | ≤1.8 | ≤2.5 |
| Polarization-dependent | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.35 | ≤0.35 |
| loss (dB) |
Applications
FTTX Systems
LAN, WAN and Metro Networks
CATV Networks
Analog/Digital Passive Optical Networks
Other applications in fiber optic systems
