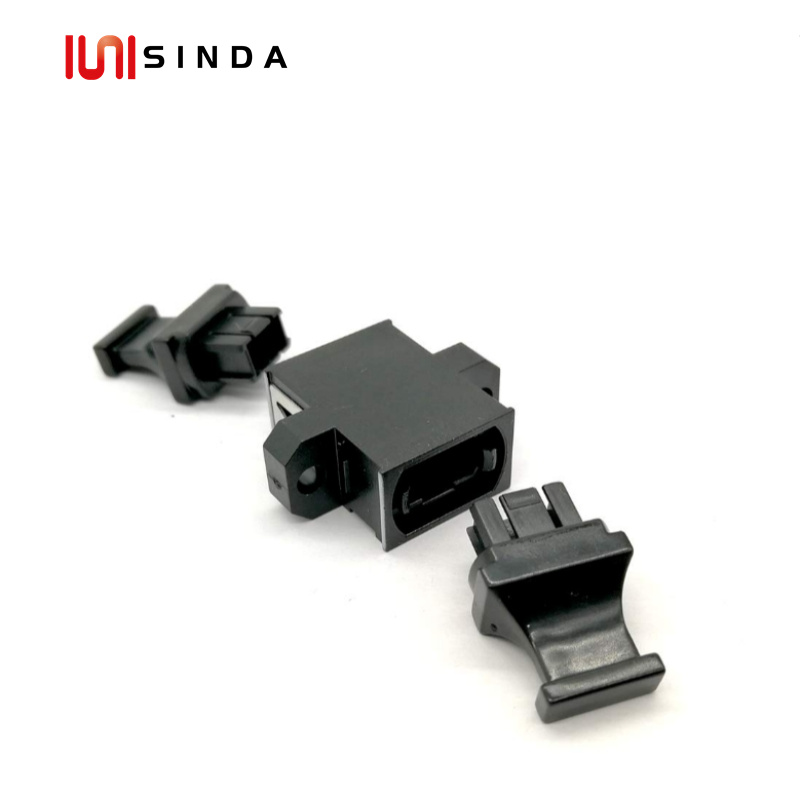

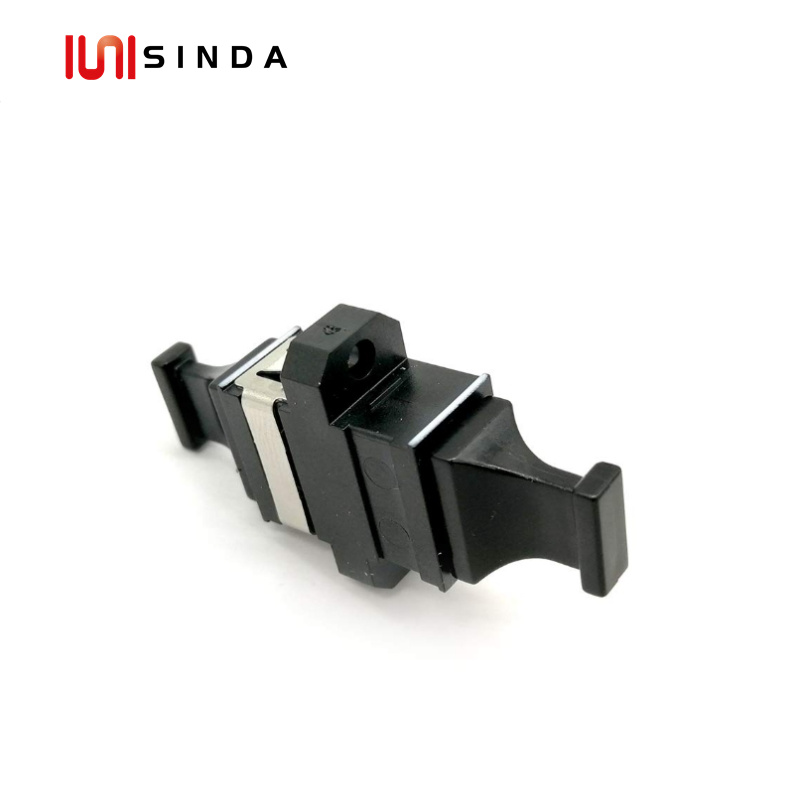

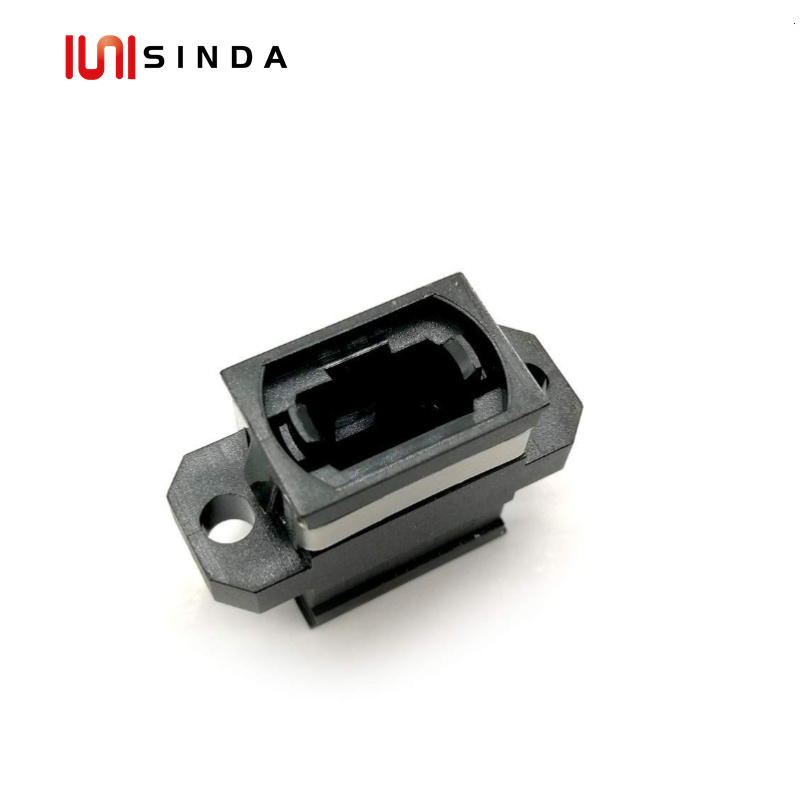

MTP/MPO 12-Core SM/MM Optical Fiber Adapter
The MTP/MPO 12-Core SM/MM Optical Fiber Adapter is a compact and efficient device designed to connect fiber optic cables equipped with MPO connectors seamlessly. This advanced adapter features the MTP connector, a high-performance MPO variant that guarantees exceptional mechanical and optical performance for your networking requirements.
Feature
· Compact design, accomodating 4, 8 or 12 fiber ribbons
· High precision alignment
· Low insertion and return loss and back reflection
Specifications
|
Product Name |
MPO/MTP 12cores Fiber Optic Adapter |
| Tested Wavelength | 850nm,1310nm, 1550nm, 1300nm |
| Connector Type | MTP/MPO |
| Capacity | 12/16/ 24 /32… |
| Flange Type | With/Without Flange |
| Insertion loss | Standard ≤ 0.2dB, Maximum ≤ 0.3dB |
| Return loss | UPC ≥ 50dB; APC ≥ 55dB |
| Fiber Type | SM MM (OM3, OM4).. |
| Housing Color | Beige/Light Green/Yellow/Black/Red… |
| Polishing | PC/UPC/APC |
| Durability | > 1000 times |
Applications
Optical Distribution Frame (ODF);
Optical Communication System;
Optical Instrumentation;
Fiber Optic CATV;
Fiber Optic Sensors, and more.
