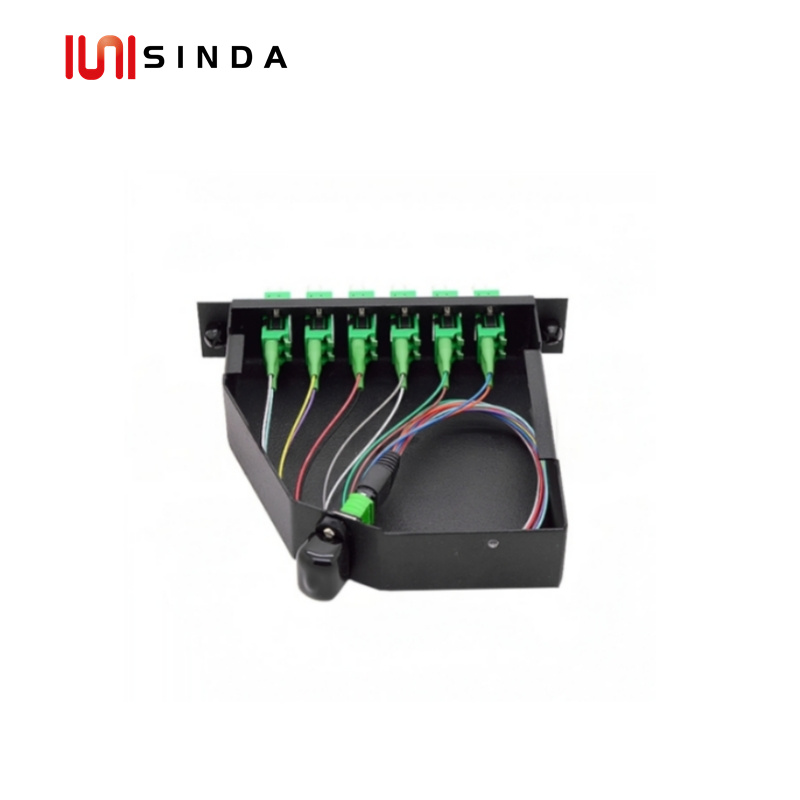

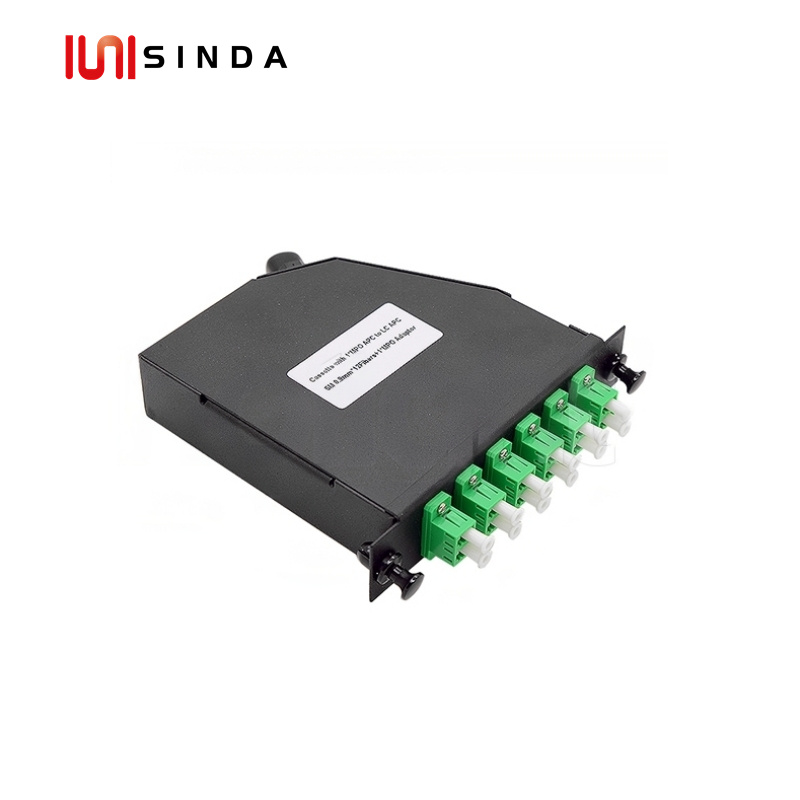

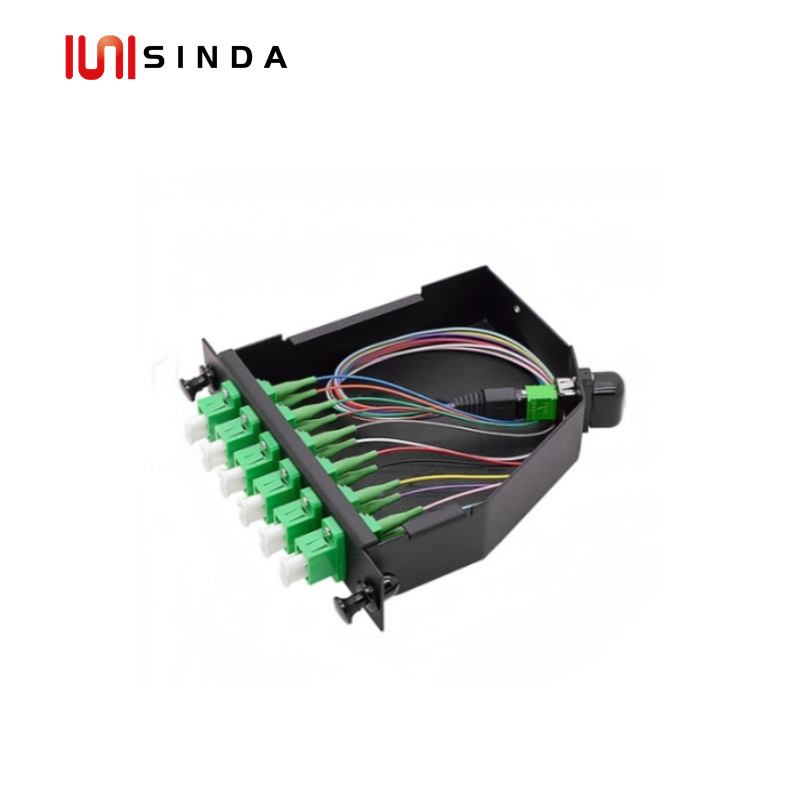

12/24Fibers MPO MTP to LC Cassette,MPO/MTP Cassettes are pre-terminated and pre-tested and come with 12- or 24-fiber MPO/MTP connectors on the back that break out to single or array connectors on the front. It features single or dual-core ports on the front of the module, allowing one or two adapters to be mounted on the module.
Cassettes are custom-built to your configuration needs, and modules are custom-built to meet your specific application needs. Select from a variety of connectors, including LC, SC, and MU for OM1, OM2, OM3, OM4, and OS2 deployment.
Feature
Come with Standard Black LGX footprint styles and is available in Custom-Built Cassettes;
All cassettes use 12-fiber or 24-fiber low-loss MPO/MTP connectors on the back;
Plug-and-play cassette eliminates the need for field termination or splices;
Allows easy migration to 40GbE and 100GbE networks via MPO/MTP cassettes;
MPO/MTP adapter swivel for easy routing and proper bend radius;
100% factory tested with test results included with each cassette.
Specifications
| Fiber Type | SM, MM (OM1-OM5) |
| Connector Type | LC, SC, MU, MPO, MTP; |
| PC, UPC, APC | |
| Fiber Count | 12, 24 |
| MAX IL | LC, SC, MU: ≤0.3dB |
| MPO, MTP: ≤0.75dB | |
| Operating Temperature | -40 ℃ ~+85 ℃ |
| Test Wavelength(nm) | SM: 1310 |
| MM: 850 |
Application
Remote or Data Center Applications;
40G/100G Connectivity Applications;
LAN/SAN;
FTTH Access Network;
Telecommunications Networks;
CATV Networks.
Quality Certification
