MPO/MTP Cassettes

MPO/MTP Cassettes

MPO/MTP Cassettes,MPO/MTP cassette capable of accepting 6-24 fibers. These cassettes are suitable for use with Singlemode, Multimode 62.5 and 50um, as well as Laser Optimized, OM3 applications and are available in LC, SC, ST, FC, MTRJ connector types.

Chat Now

Description

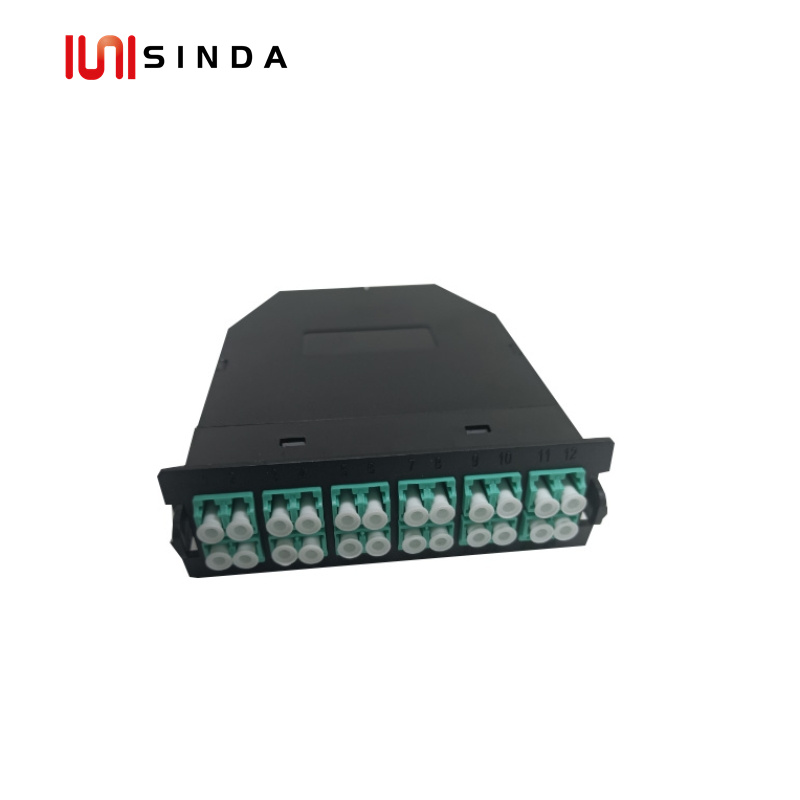

MPO/MTP Cassettes

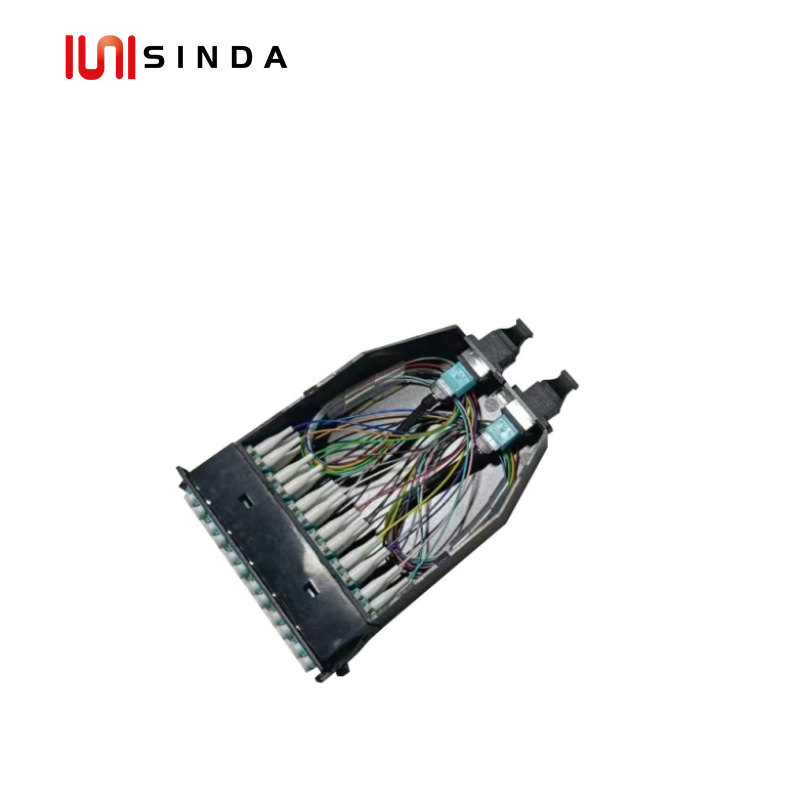

MPO/MTP cassette comes pre-installed with the required adapters featuring Zirconia Ceramic sleeves for enhanced compatibility with all applications. Adapters are color-coded according to the application in use (Blue = 9/125; Beige = 62.5 and 50um; Aqua = OM3; Green = APC). All adapters come standard with dust covers.

Features

100% pre-terminated and tested in factory to ensure transfer performance

Rapid configuration and networking, reduce installation time

Supports 40G and 100G network applications

Specification

Fiber Type	9/125µm Singlmode OS2	Fiber Count	12-Fiber
Front Connector Type	6x LC Duplex	Rear Connector Type	2x MPO-12 Male (Pinned)
Dimensions (WxDxH)	130×112×30mm	Test Wavelength	1310 nm
Insertion Loss	MPO≤0.7dB, LC≤0.3dB	Return Loss	MPO≥60dB, LC≥50dB
Polarity	Type A	Durability	≥500 times
MPO Connector	Key up to Key down	Polish	APC to UPC
Environment	Operating: -20°C to 70°C Storage: -40°C to 85°C	Application	Data Centre Infrastructure Fiber Optic Network Infrastructure High-Density Fiber Management

Application

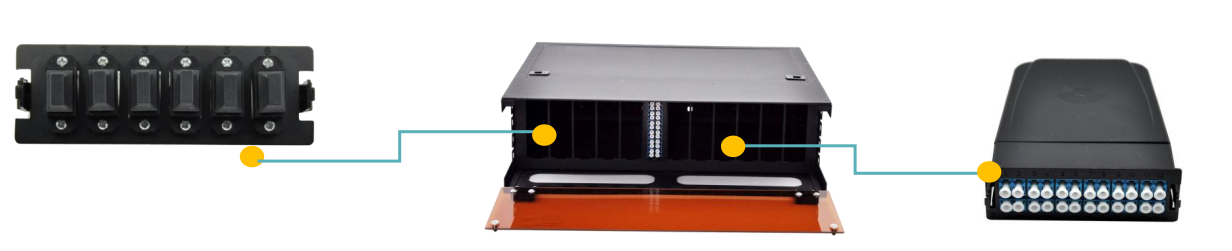

Implementation of the structured cabling in Data Centers

Quality Certification
