E2000/APC to E2000/APC Simplex OS2 Single Mode Plastic Fiber Optic Adapter/Coupler with Flange
E2000/APC to E2000/APC Simplex OS2 Single Mode Plastic Fiber Optic Adapter/Coupler with Flange, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
E2000/APC to E2000/APC Simplex OS2 Single Mode Plastic Fiber Optic Adapter/Coupler with Flange
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

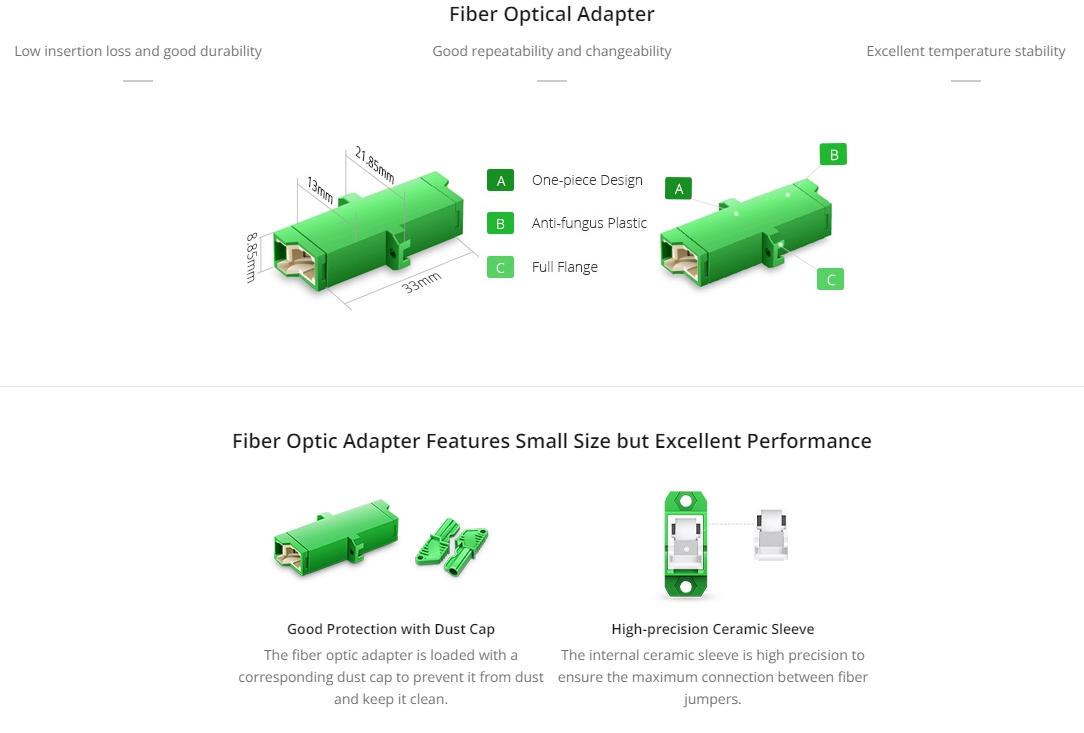

Features
≤0.2dB(Typical) Low Insertion Loss
Color Coded for Rapid Fiber Management
Protective Dust Cap Keeps Adapter’s Interior Clean from Dust
No Tools Required for Assembly
Available in A Variety of Connector Types
Can be Used with M2 Model Screw
Specifications
Connector Type | LSH-LSH | Body Style | Simplex |
Polish Type | APC | Fiber Mode | OS2 9/125μm |
Insertion Loss | ≤0.2dB | Durability | 1000 times |
Mounting Type | Full Flanged | Alignment Sleeve Material | Ceramic |
Color | Green | Flammability Rate | UL 94V-0 |
Package Quantity | 1Pcs | RoHS Compliancy Status | Compliant |
Products Details
Quality Certification
