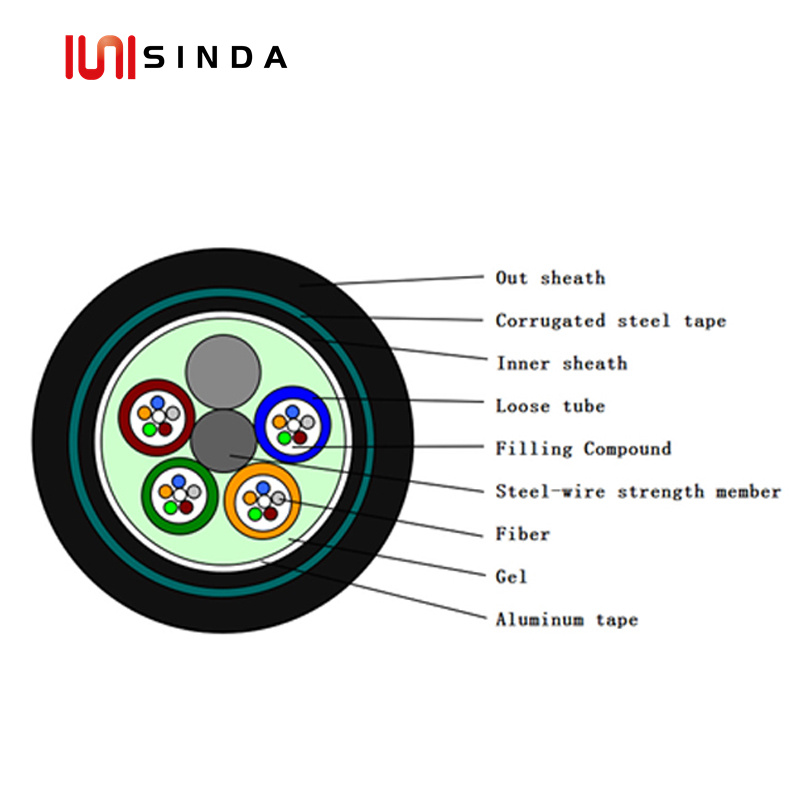

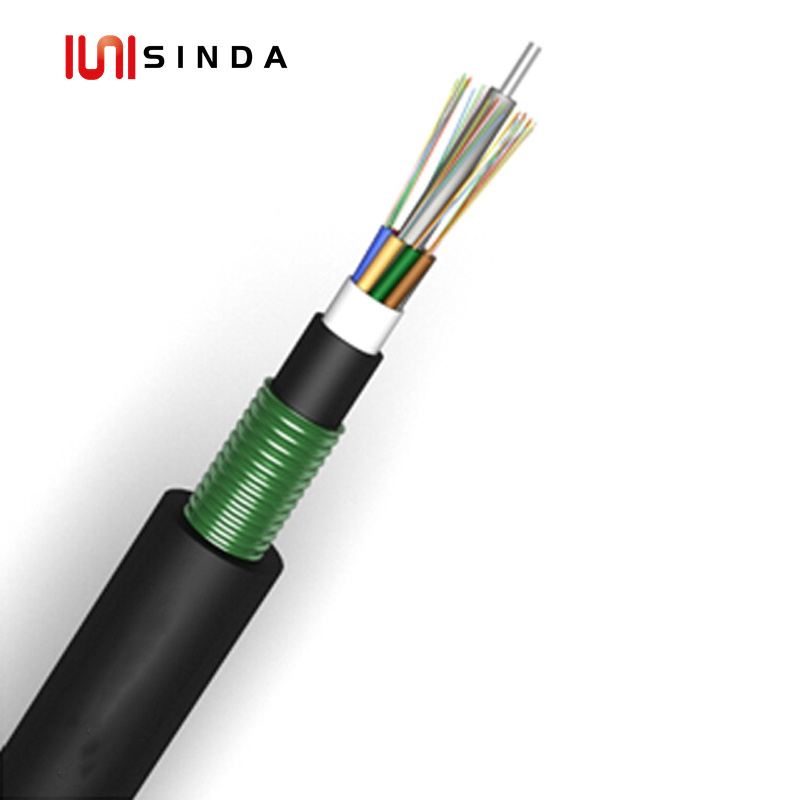

GYTA53 Double Armored and Double Sheathed Stranded Outdoor Optical Cable,The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

GYTA53 Double Armored and Double Sheathed Stranded Outdoor Optical Cable,

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.







Features


Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound and 100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material









Cable construction details


Number of fiber  24-144core
Filling rope 4-0
Moisture Barrier Water blocking system
Central strength member  material  Steel wire/FRP
size 1.4mm
Tube-filling Tube filling compoun
Inner sheath material PE/HDPE
diameter 2.0mm
Loose tube material PBT
diameter Ф2.2(outer/inner)
Inner armored material  Aluminium tape
Outer armored material  Corrugated steel tape
Outer sheath material  PE/HDPE
diameter 1.7±0.2mm











Fiber color


Number of fiber per tube 8cores 1 2 3 4 5 6
Blue  Orange  Green  Brown  Grey  White
7 8 9 10 11 12
Red Black Yellow  Violet  Pink  Aqua
Color 13~24 will be marked with a black tracer.  For black color no need marked black tracer, will use nature color instead.







Cable Mechanical characteristic


core  Cable diameter  weight
24 core to 42core 14.0±0.3mm 150±10kg/km
48core 14.0±0.3mm 200±10kg/km
60core 14.0±0.3mm 205±10kg/km
72cores 15.5±0.5mm 210±10kg/km
96cores 17.1±0.5mm 270±10kg/km
144cores 20.3±0.5mm 310±10kg/km
Min Bending Radius(mm) Long term  10D
Min Bending Short term 20D
Radius(mm)
Min allowable Long term  3000
Tensile Strength(N)
Min allowable Short term 4000
Tensile Strength(N)
Min. Allowable Crush Load (N/100mm) Long term 1000
Min. Allowable Crush Load (N/100mm) short term 3000
Operation 30
temperature (℃)
Installation 45
temperature(℃)









Fiber characteristic


Fiber style Unit SM SM MM MM MM
G652 G652D 50/125 62.5/125 OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- ≧400  ≧160  Bandwith
1300nm MHZ.KM ---- ---- ≧800  ≧500
Zero dispersion wavelength nm 1300-1324 ≧1302, ---- ---- ≧ 1295,
≤1322 ≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr   ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*km) ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180, ≧1180, ---- ---- ----
≤1330 ≤1330
Cable sutoff nm ≤1260 ≤1260 ---- ---- ----
wavelength λcc
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical   ---- ---- 0.200+/ 0.275+/-0. 0.200+/-0
Aperture(NA) -0.015 15 0.015
Step(mean of bidirectional dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
measurement)
Irregularities over fiber dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
length and point
Dicontinuity
Difference backscatter dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
coefficient
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um     50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
concentrically error
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----











Applications


Adopted to ourdoor distribution;
Suitable for aerial, duct and direct buried;
Long distance and local area network communication.





Packing Info

Description HS code Qty Cardbord SIZE G.W(kg)
GYTA53-144B1.3 8544700000 3000m/roll 1700*1820*1200CM 1355.75
GYTA53-48C 8544700000 2KM/ROLL 1105*1105*80CM 420
GYTA53-288C 8544700000 1KM/ROLL 125*74*135CM 470
