IP67 LC UPC OS2 Single Mode Bulkhead Adapter/Mating Sleeve with Dust Cap

IP67 LC UPC OS2 Single Mode Bulkhead Adapter factory price

IP67 LC UPC OS2 Single Mode Bulkhead Adapter factory

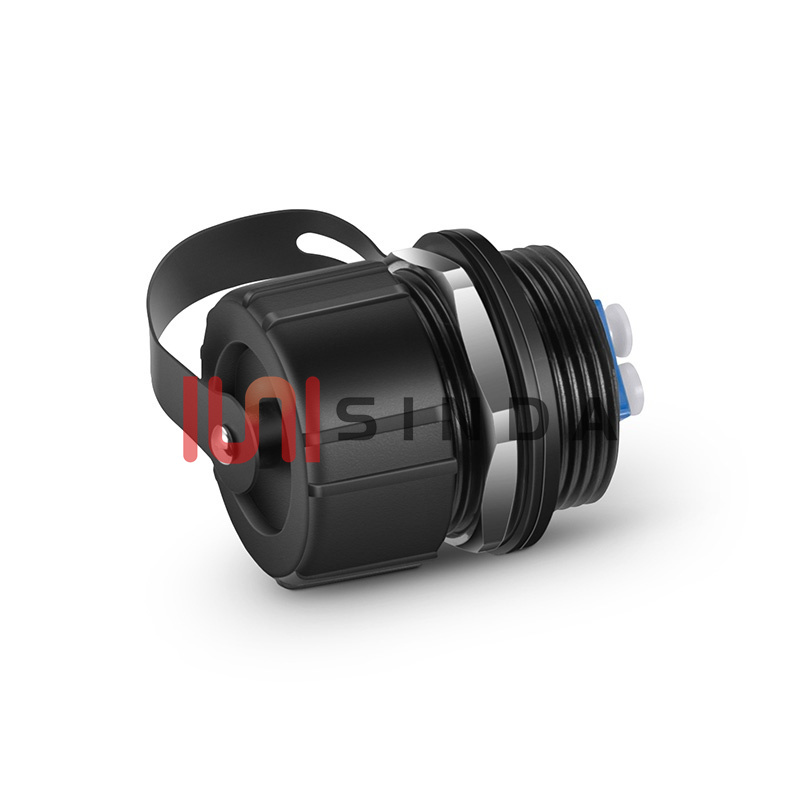

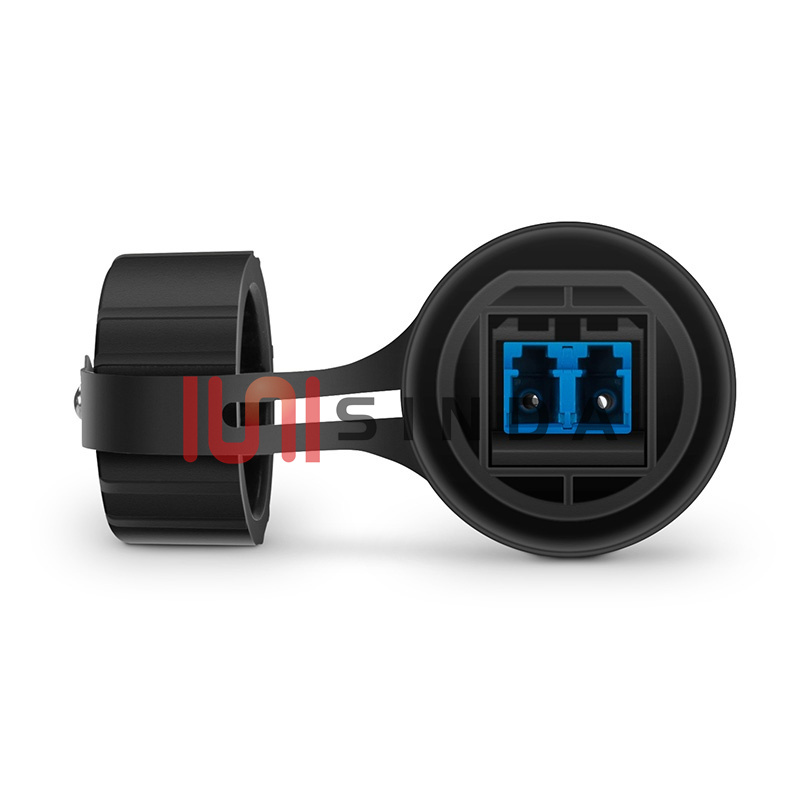

IP67 LC UPC OS2 Single Mode Bulkhead Adapter/Mating Sleeve with Dust Cap

IP67 LC UPC OS2 Single Mode Bulkhead Adapter/Mating Sleeve with Dust Cap is intended for bulkhead installation. Connecting with single mode fiber and multimode fiber, the adapter is designed to be durable and provide reliable mechanical mating of cable assemblies in harsh/outdoor environments. Therefore, it is the ideal choice for a low-cost and easy solution in Industrial, Fiber to the Antenna (FTTA), or any other harsh environmental applications.The dust cap protects ruggedized patch cords from exposure to elements or accidental damage when not in use.

Chat Now

Description

IP67 LC UPC OS2 Single Mode Bulkhead Adapter/Mating Sleeve with Dust Cap

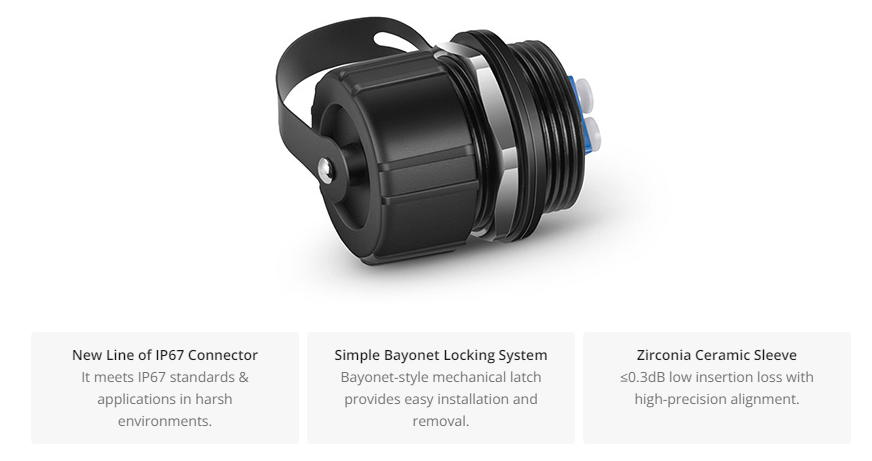

Features

IP67-rated Adapter Ensures Reliable Connections in Harsh Environments

≤0.3dB(Typical) Low Insertion Loss

Waterproof Dust Cap Protects Adapter from Water and Dust Ingress

Bayonet-style Mechanical Latch Provides Easy Installation and Removal

Available in A Variety of Connector Types

Can be Used with M2 Model Screw

Specifications

Connector Type	LC-LC	Body Style	Duplex
Color	Black	IP Rating	IP67
Insertion Loss	≤0.3dB	Flammability Rate	UL94-V2
Operating Temperature	-40°C to 80°C	Storage Temperature	-40°C to 80°C

Applications

IP67 LC Bulkhead Adapter Characteristics,IP67 LC adapter protects the product against intrusion, dust, water, accidental contacts, etc.

Quality Certification

Hot Tags : IP67 LC UPC OS2 Single Mode Bulkhead Adapter FTTA used LC Bulkhead Adapter LC Adapters used for harsh environmental LC outdoor Adapter IP67 waterproof lc fiber optic adapter Fiber to the Antenna (FTTA) lc adapter
