The Fusion Splice MPO Fiber Optic Connector is a multimode 50/125μm OM3/OM4/OM5 fiber connector, intended for use with bare tape. Field termination can be done on several common splice machine brands. The connector is non-pinned ("Female"), standard IL, and is aqua.

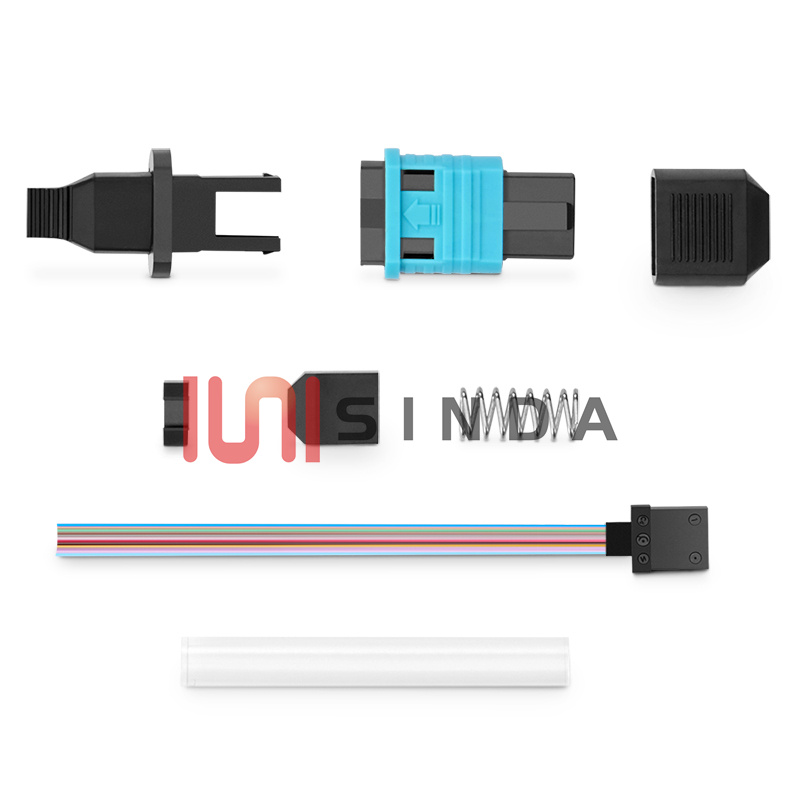

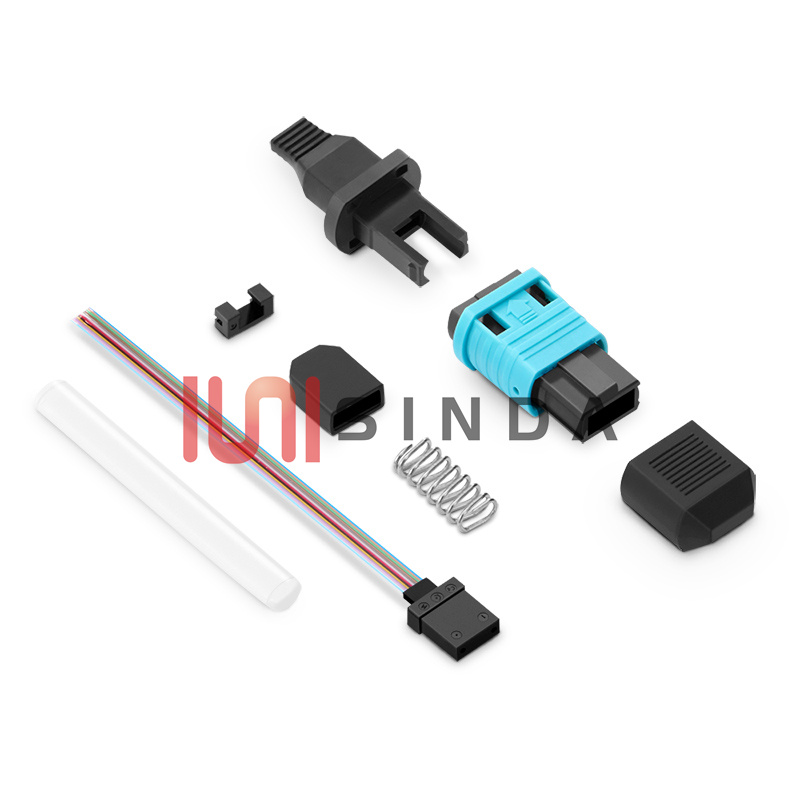

MPO (Female) OM3 Pre-polished Fiber Optic Connectors
The Fusion Splice MPO Fiber Optic Connector is a multimode 50/125μm OM3/OM4/OM5 fiber connector, intended for use with bare tape. Field termination can be done on several common splice machine brands. The connector is non-pinned ("Female"), standard IL, and is aqua.
Features
Fiber Can be Reinserted up to Two Times for Optimal Termination
No Polishing, Fast and Easy to Install
Used for OM3 Fiber Optic Cable
Low Insertion Loss ≤ 0.75dB
Applied for LAN/WAN Connections, Equipment Test Leads, etc.
Specifications
Polish Type | Pre-Polished | Fiber Type | OM3/OM4 |
Connection Type | MPO(Female) | Color | Aqua |
Number of Fibers | 12 | Temperature | Installation 38 to 42°C, Operating 0 to 60°C |
Maximum Connector Insertion Loss | 0.75dB | Minimum Connector Return Loss | 20dB |
Quality Certification
