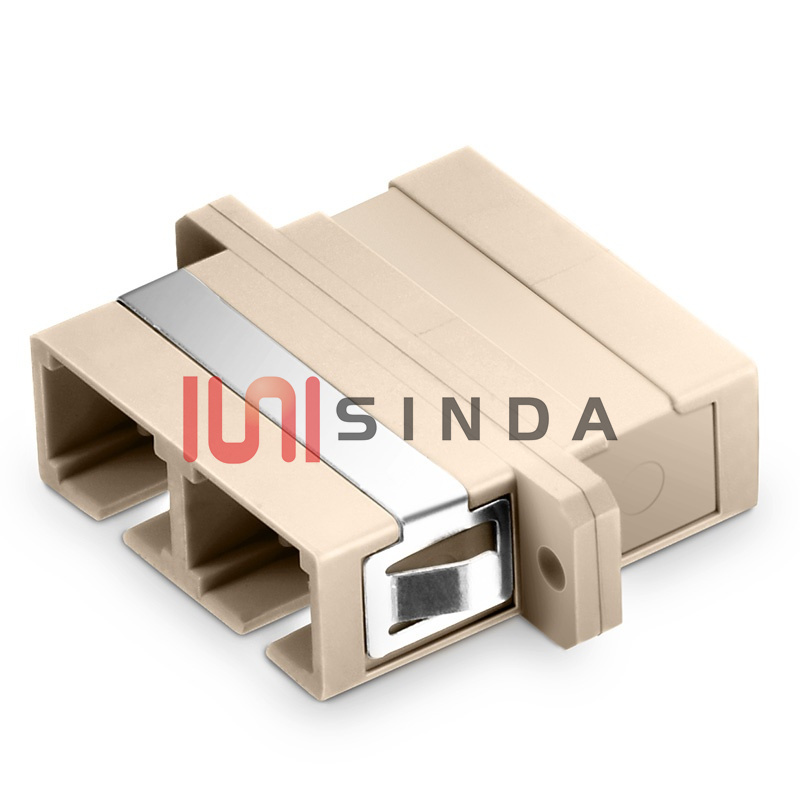

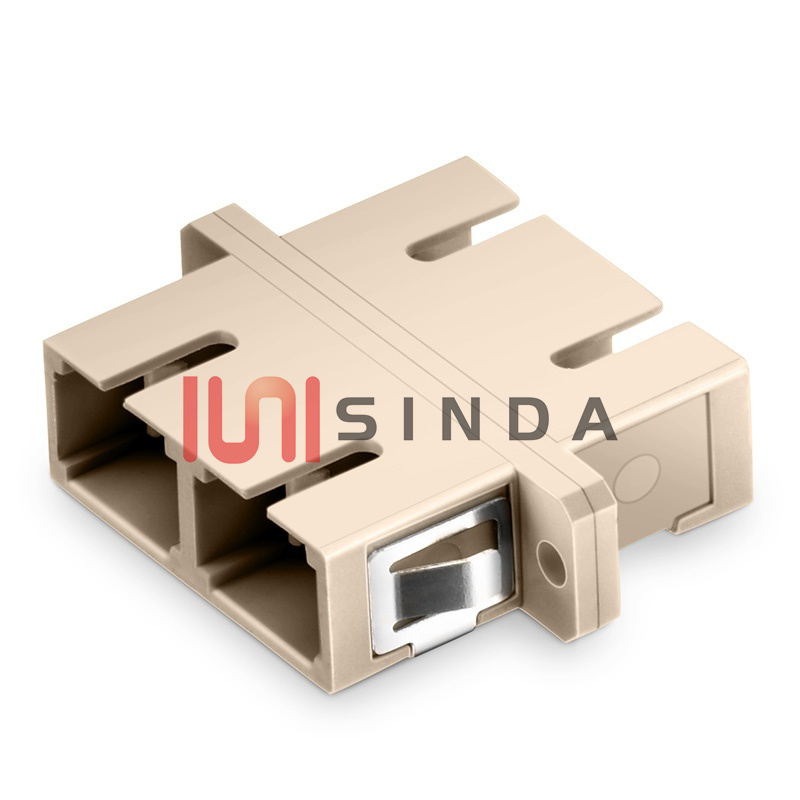

SC to SC Duplex OM1/OM2 Multimode Plastic Fiber Optic Adapter/Coupler with Flange
SC to SC Duplex OM1/OM2 Multimode Plastic Fiber Optic Adapter/Coupler with Flange, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
SC to SC Duplex OM1/OM2 Multimode Plastic Fiber Optic Adapter/Coupler with Flange
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. SINDA supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Features
≤0.2dB(Typical) Low Insertion Loss
Color Coded for Rapid Fiber Management

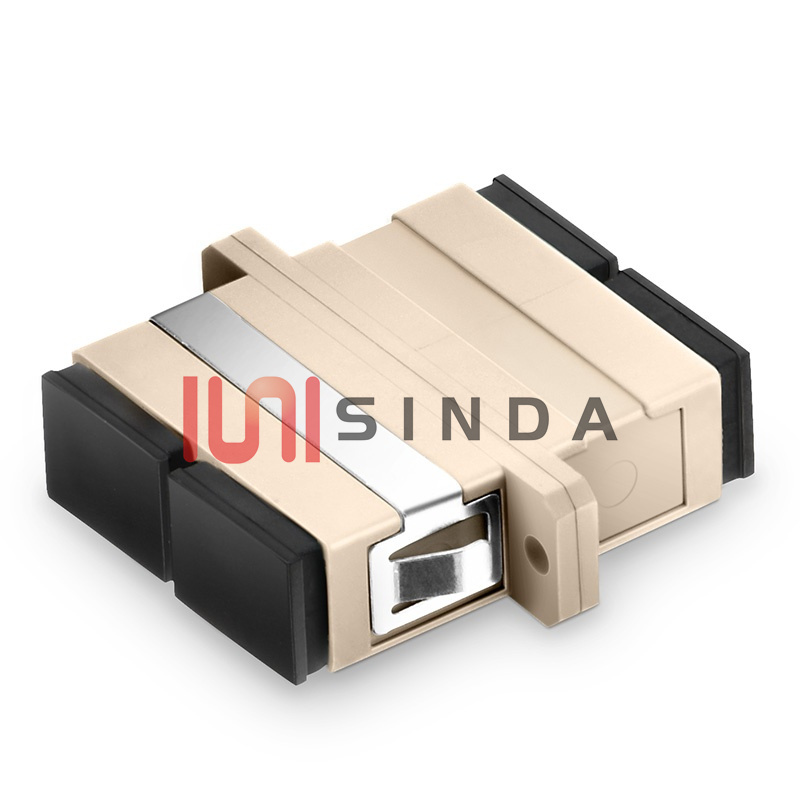

Protective Dust Cap Keeps Adapter’s Interior Clean from Dust
Stainless Steel Clips for Tool-less Snap-in Installation
Available in A Variety of Connector Types
Can be Used with M2 Model Screw
Specifications
Connector Type | SC-SC | Body Style | Duplex |
Polish Type | UPC | Fiber Mode | OM1 62.5/125μm/OM2 50/125μm |
Insertion Loss | ≤0.2dB | Durability | 1000 times |

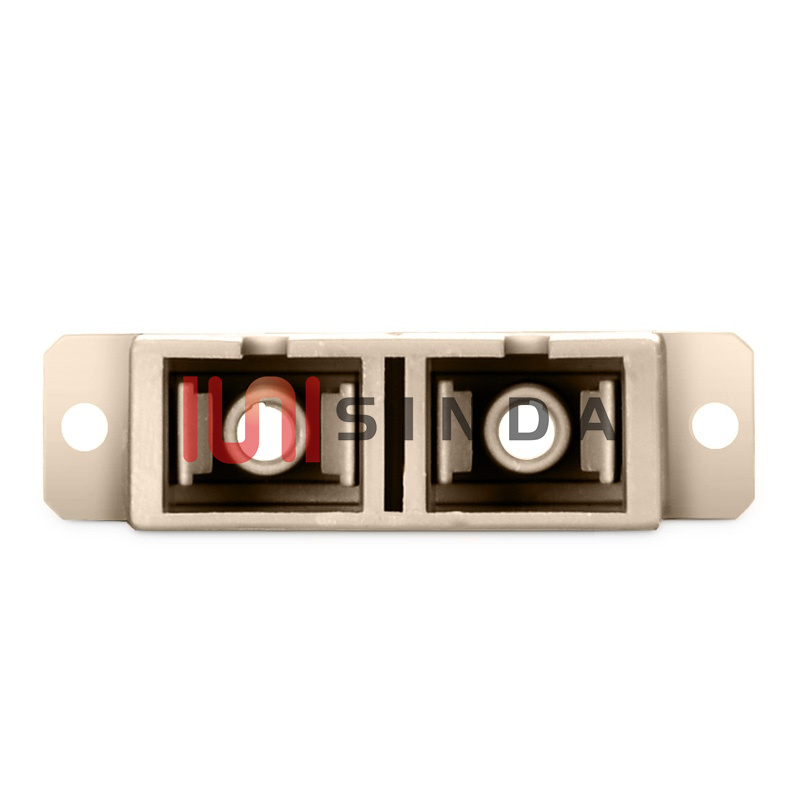

Mounting Type | Full Flanged | Alignment Sleeve Material | Ceramic |
Color | Beige | Flammability Rate | UL 94V-0 |
Package Quantity | 1Pcs | RoHS Compliancy Status | Compliant |
Applications

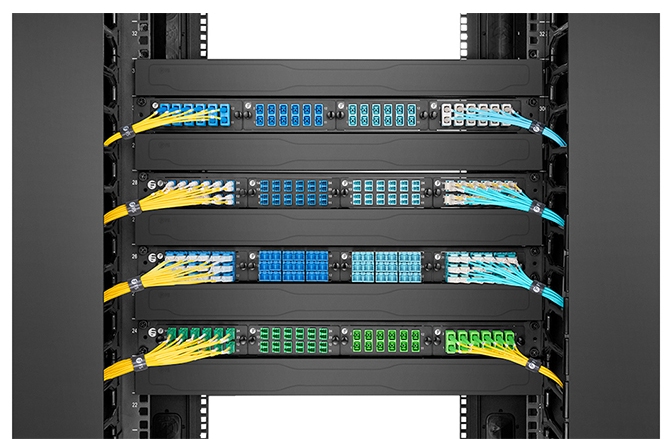

Color-coded Adapters Simplify Fiber Management,The adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme, effectively helping technicians make better cable management and reduce human errors.
Quality Certification
