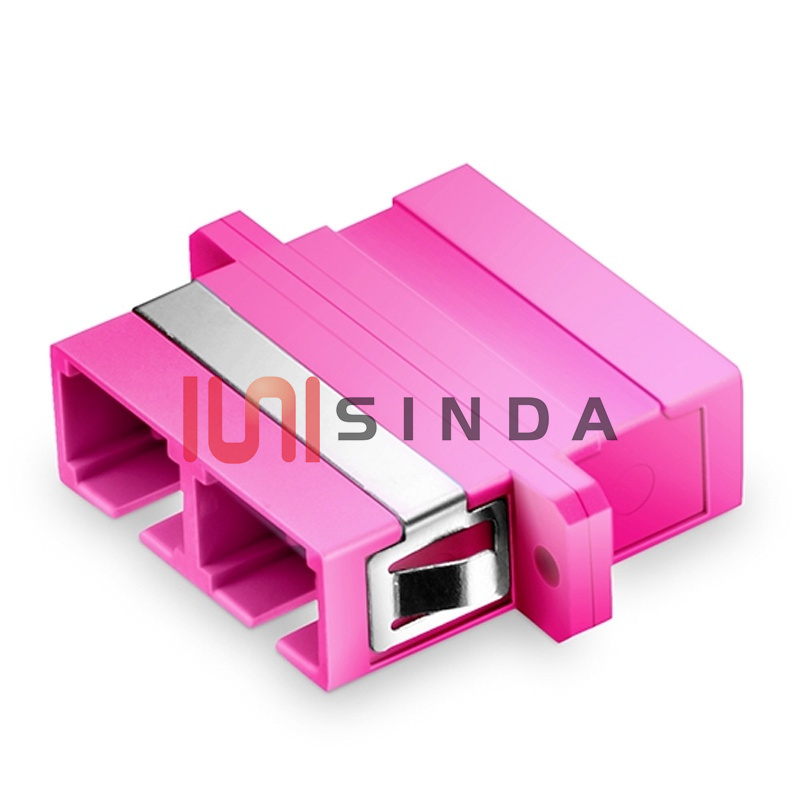

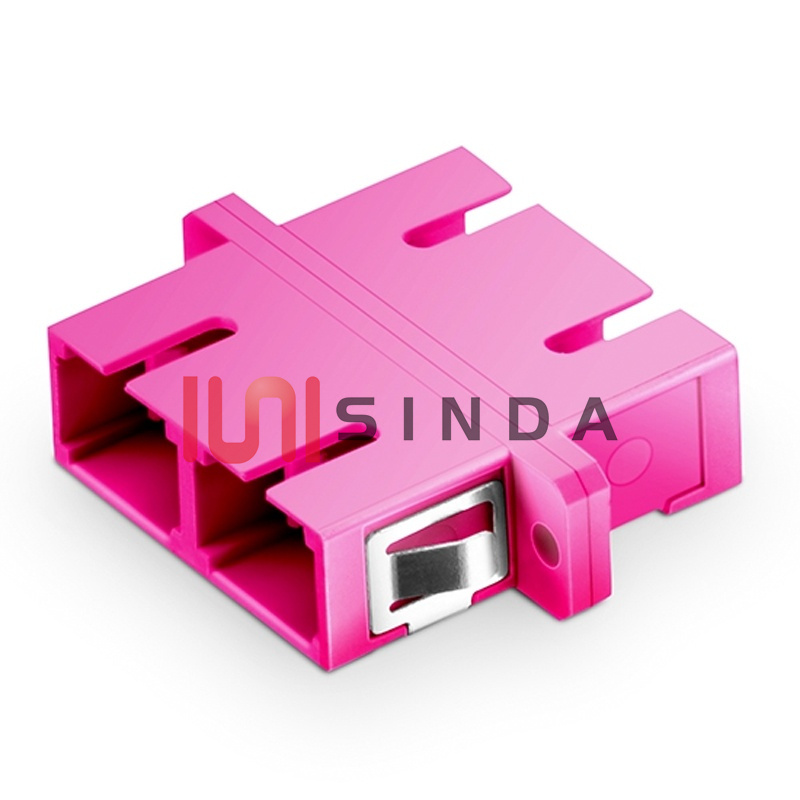

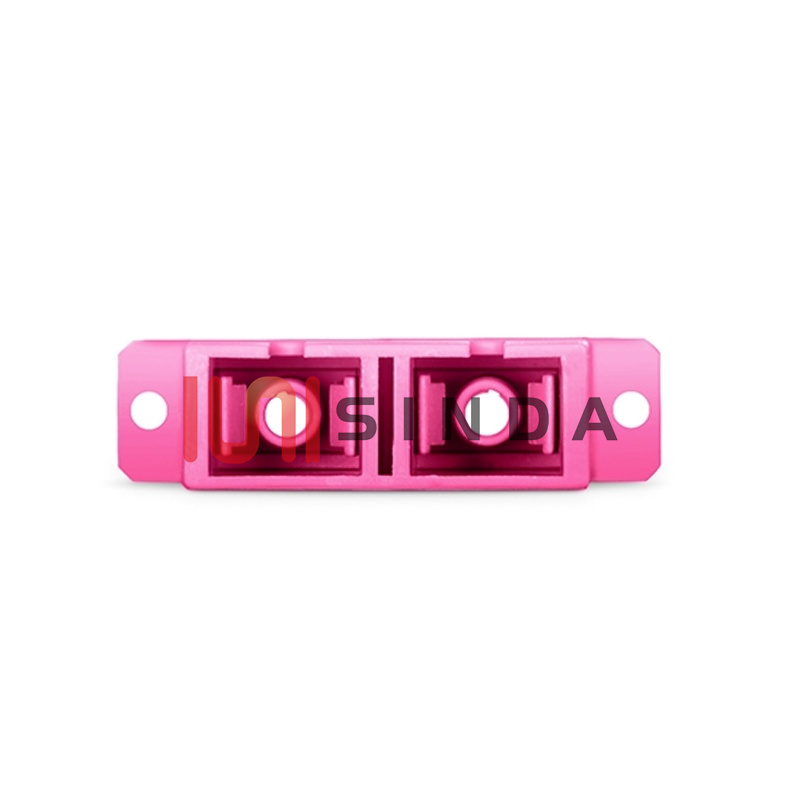

SC to SC Duplex OM4 Multimode Plastic Fiber Optic Adapter/Coupler with Flange, Violet
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
SC to SC Duplex OM4 Multimode Plastic Fiber Optic Adapter/Coupler with Flange, Violet
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. SINDA supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters
Features
≤0.2dB(Typical) Low Insertion Loss
Color Coded for Rapid Fiber Management

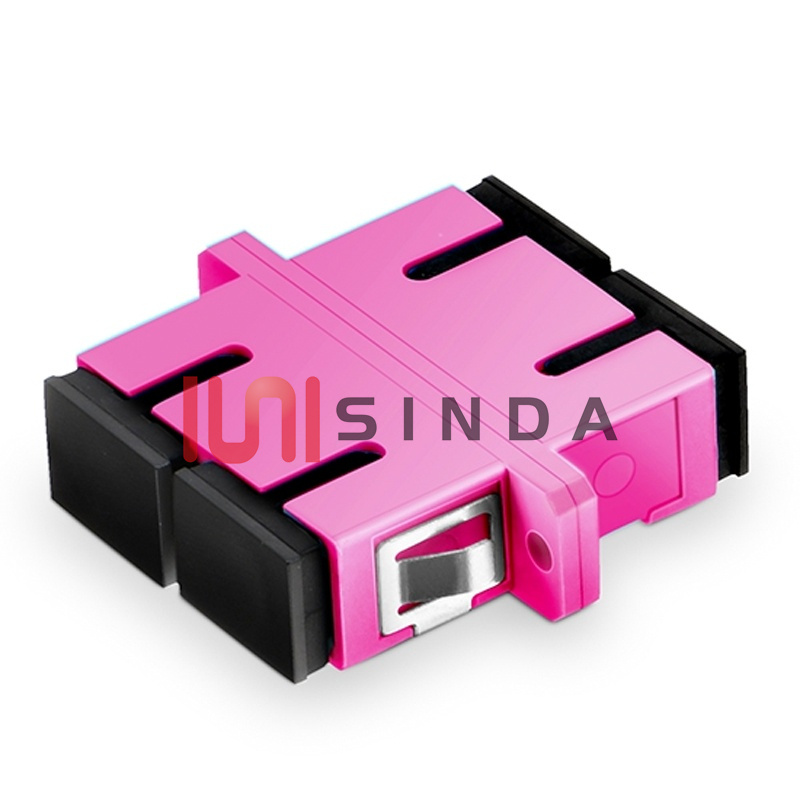

Protective Dust Cap Keeps Adapter’s Interior Clean from Dust

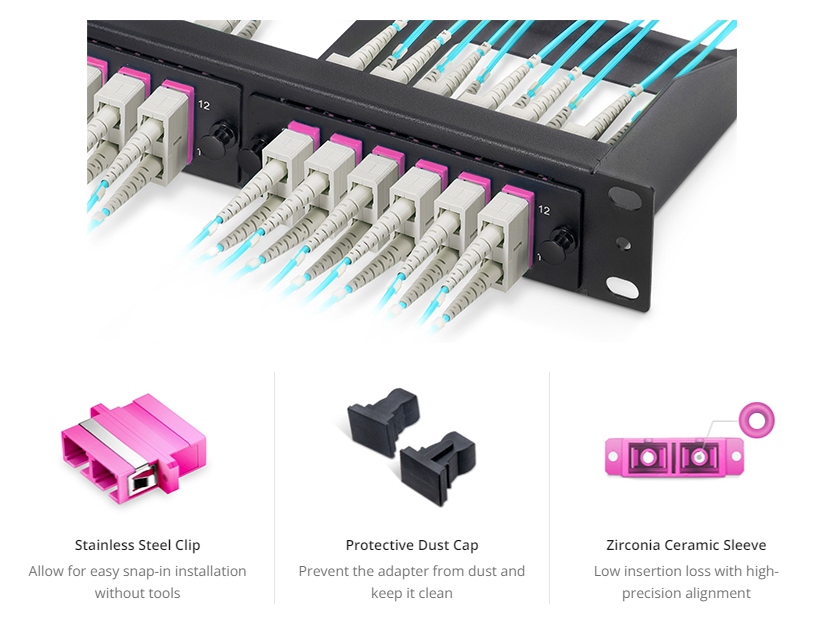

Stainless Steel Clips for Tool-less Snap-in Installation
Available in A Variety of Connector Types
Can be Used with M2 Model Screw
Specifications
Connector Type | SC-SC | Body Style | Duplex |
Polish Type | UPC | Fiber Mode | OM4 50/125μm |
Insertion Loss | ≤0.2dB | Durability | 1000 times |
Mounting Type | Full Flanged | Alignment Sleeve Material | Ceramic |
Color | Violet | Flammability Rate | UL 94V-0 |
Package Quantity | 1Pcs | RoHS Compliancy Status | Compliant |
Applications

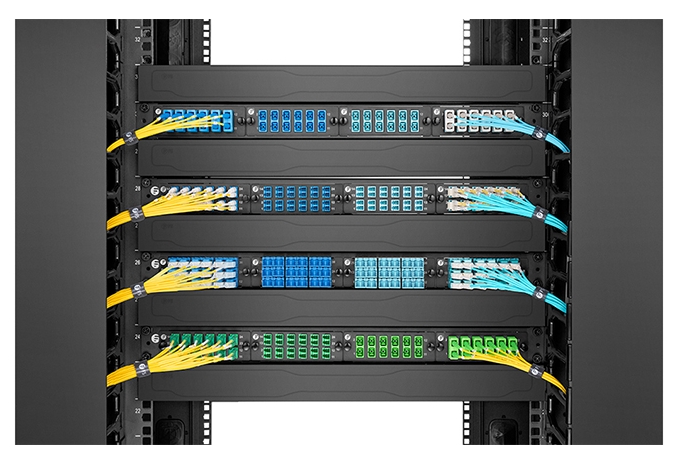

Extending Fiber Connection with Adapters,With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.
Color-coded Adapters Simplify Fiber Management
The adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme, effectively helping technicians make better cable management and reduce human errors.
