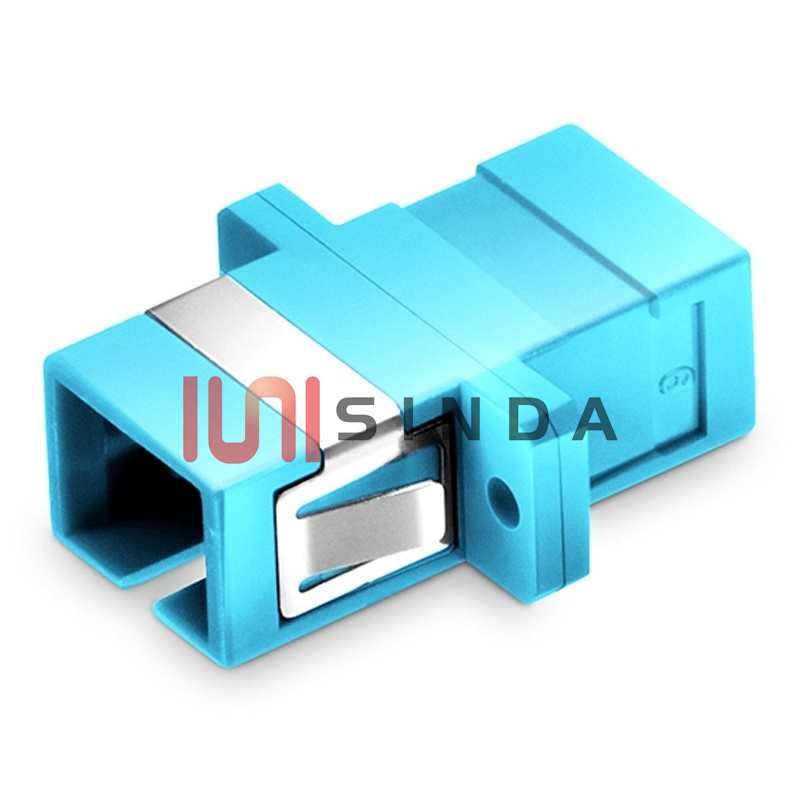

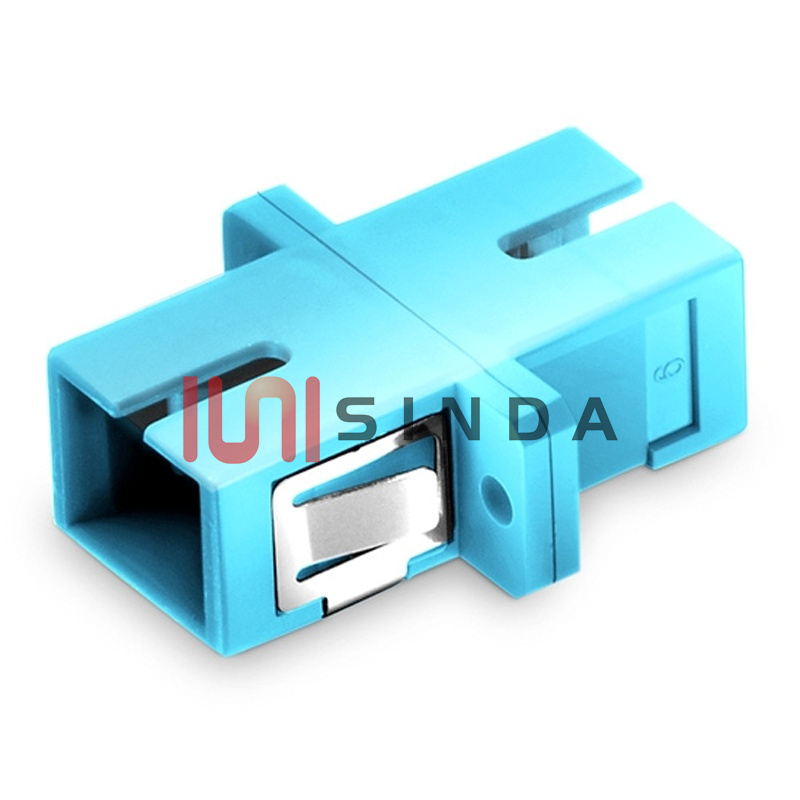

SC to SC Simplex OM3 Multimode Plastic Fiber Optic Adapter/Coupler with Flange, Aqua

A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

Chat Now

Description

SC to SC Simplex OM3 Multimode Plastic Fiber Optic Adapter/Coupler with Flange, Aqua

By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. SINDA supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

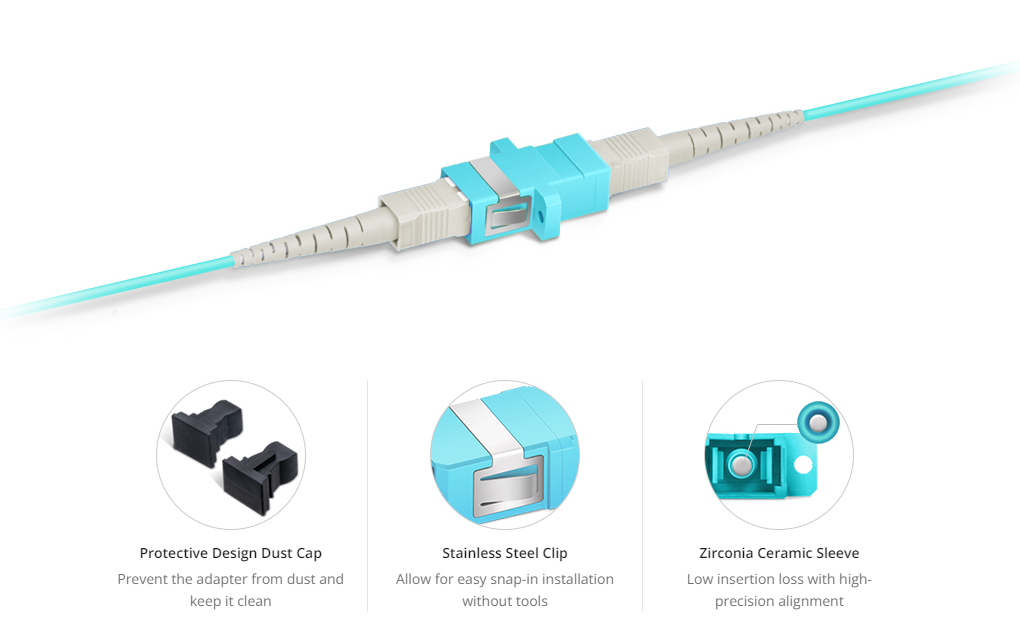

Features

≤0.2dB(Typical) Low Insertion Loss

Color Coded for Rapid Fiber Management

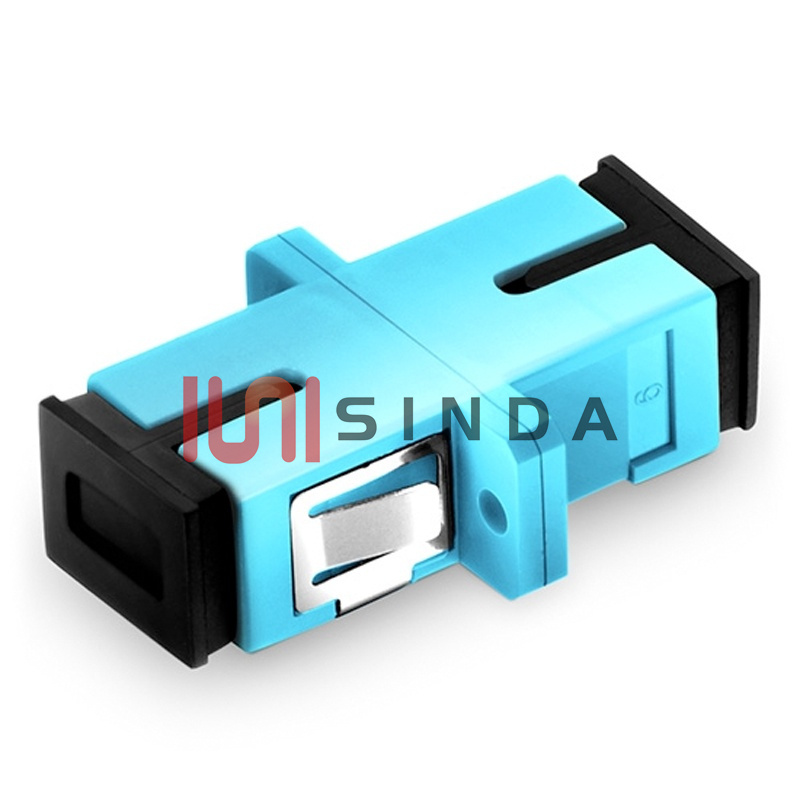

Protective Dust Cap Keeps Adapter’s Interior Clean from Dust

Stainless Steel Clips for Tool-less Snap-in Installation

Available in A Variety of Connector Types

Can be Used with M2 Model Screw

Specifications

Connector Type	SC-SC	Body Style	Simplex
Polish Type	UPC	Fiber Mode	OM3 50/125μm
Insertion Loss	≤0.2dB	Durability	1000 times

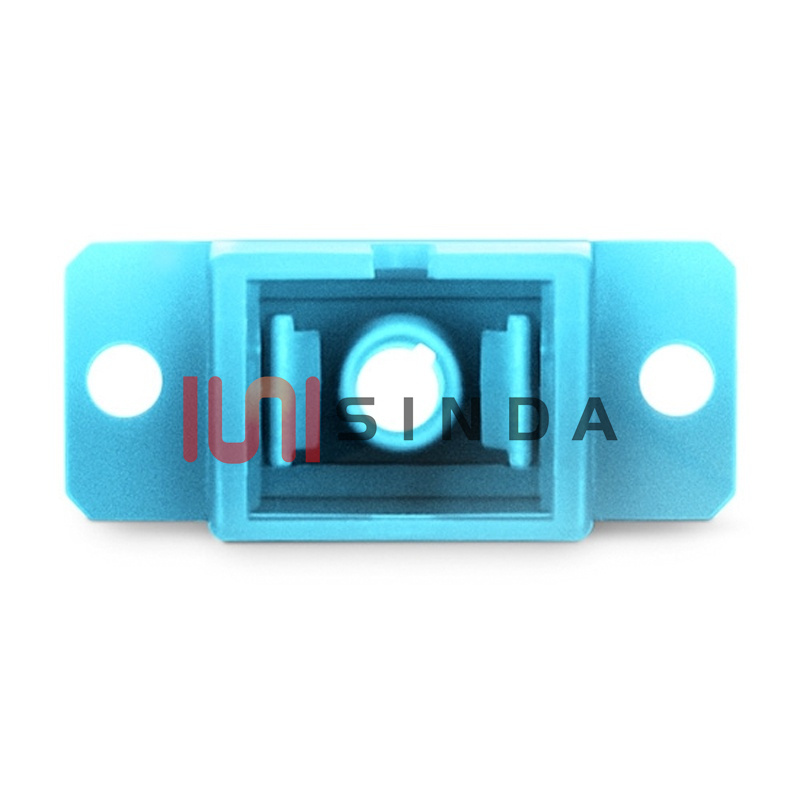

Mounting Type	Full Flanged	Alignment Sleeve Material	Ceramic
Color	Aqua	Flammability Rate	UL 94V-0
Package Quantity	1Pcs	RoHS Compliancy Status	Compliant

Applications

Extending Fiber Connection with Adapters,With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.

Quality Certification
