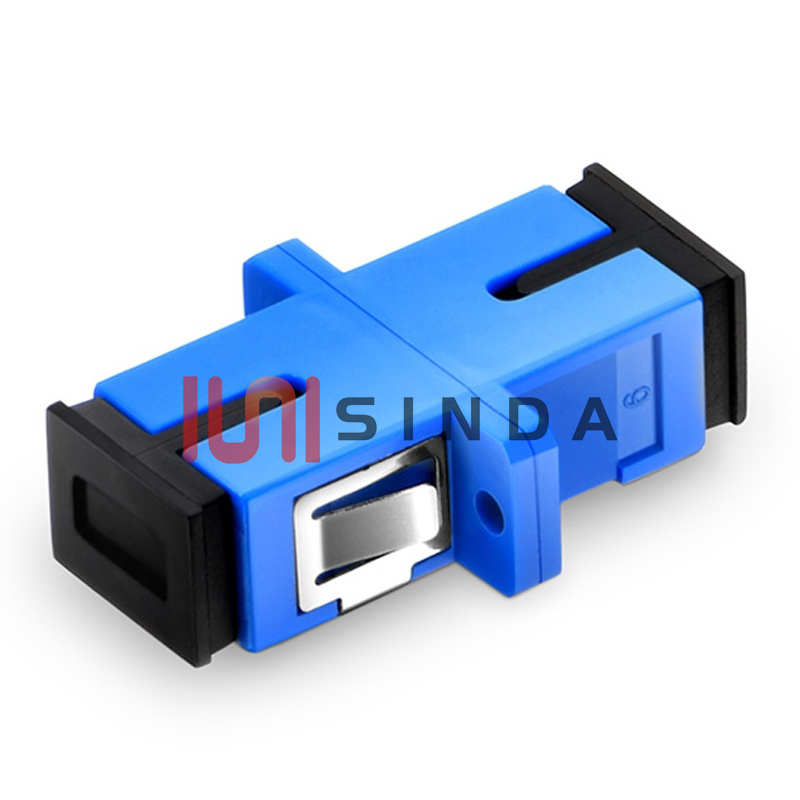

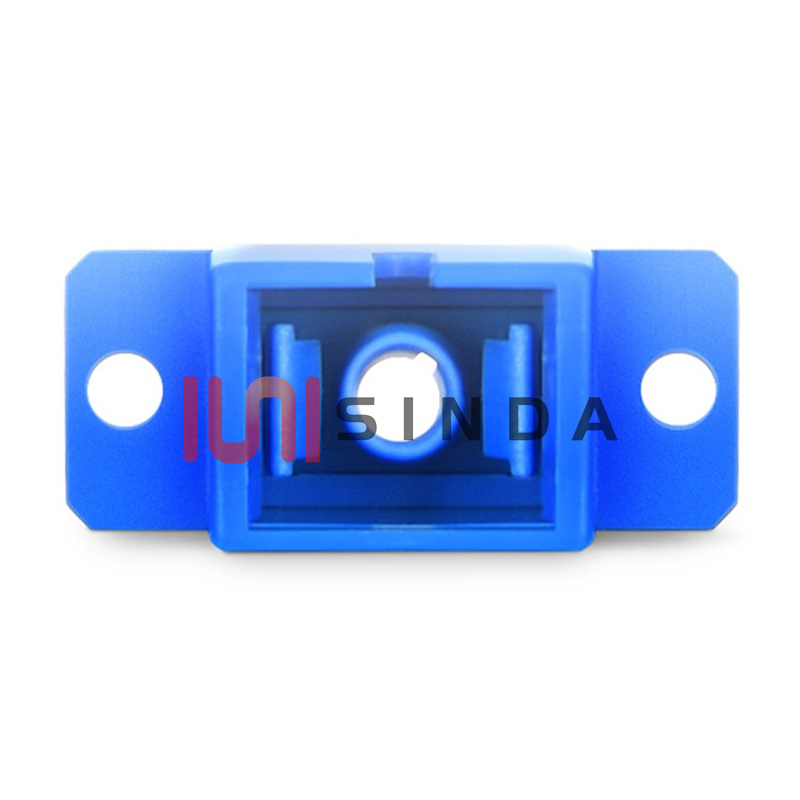

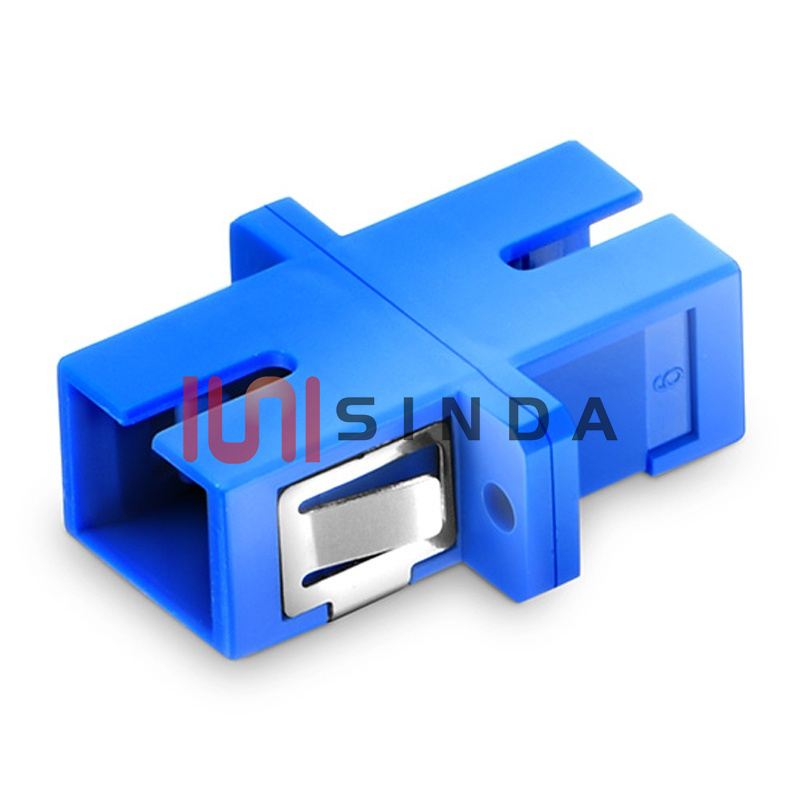

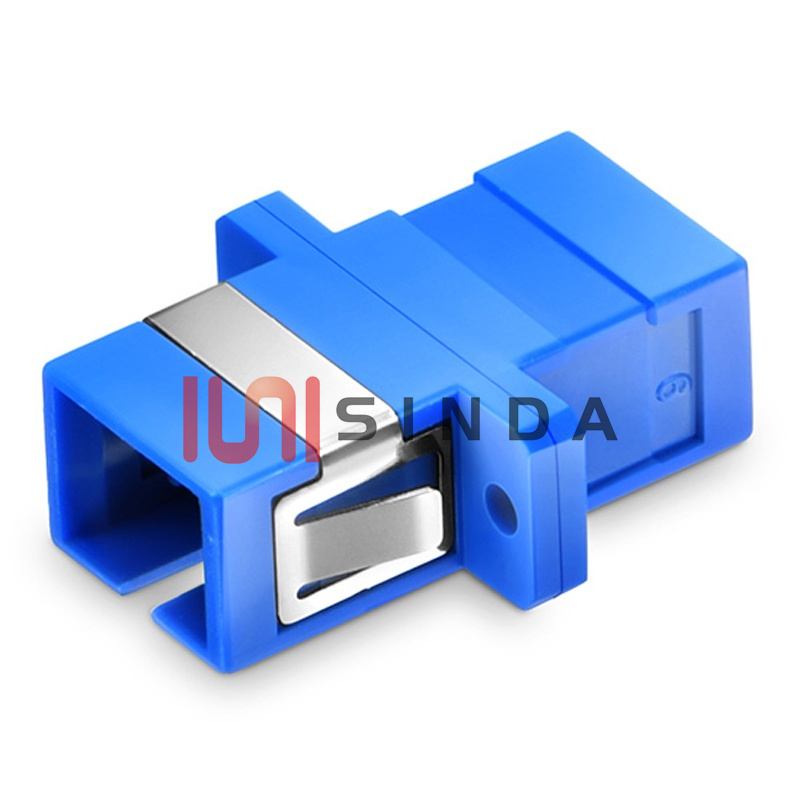

SC to SC Simplex OS2 Single Mode Plastic Fiber Optic Adapter/Coupler with Flange
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. SINDA supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
SC to SC Simplex OS2 Single Mode Plastic Fiber Optic Adapter/Coupler with Flange
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. SINDA supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

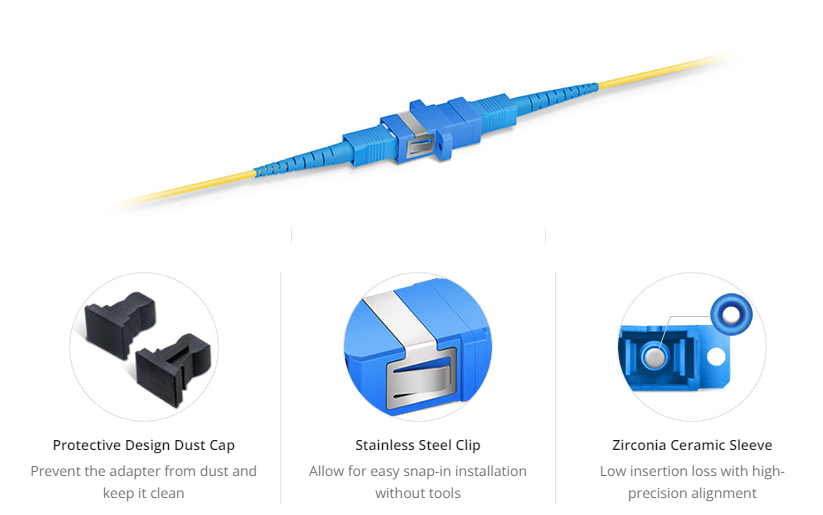

Features
≤0.2dB(Typical) Low Insertion Loss
Color Coded for Rapid Fiber Management
Protective Dust Cap Keeps Adapter’s Interior Clean from Dust
Stainless Steel Clips for Tool-less Snap-in Installation
Available in A Variety of Connector Types
Can be Used with M2 Model Screw
Specifications
Connector Type | SC-SC | Body Style | Simplex |
Polish Type | UPC | Fiber Mode | OS2 9/125μm |
Insertion Loss | ≤0.2dB | Durability | 1000 times |
Mounting Type | Full flanged | Alignment Sleeve Material | Ceramic |
Color | Blue | Flammability Rate | UL 94V-0 |
Package Quantity | 10 Pcs | RoHS Compliancy Status | Compliant |
Applications
Extending Fiber Connection with Adapters,With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber Adapters is 100% optically inspected and tested for insertion loss before you receive it.
