As optical passive devices, SINDA attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.

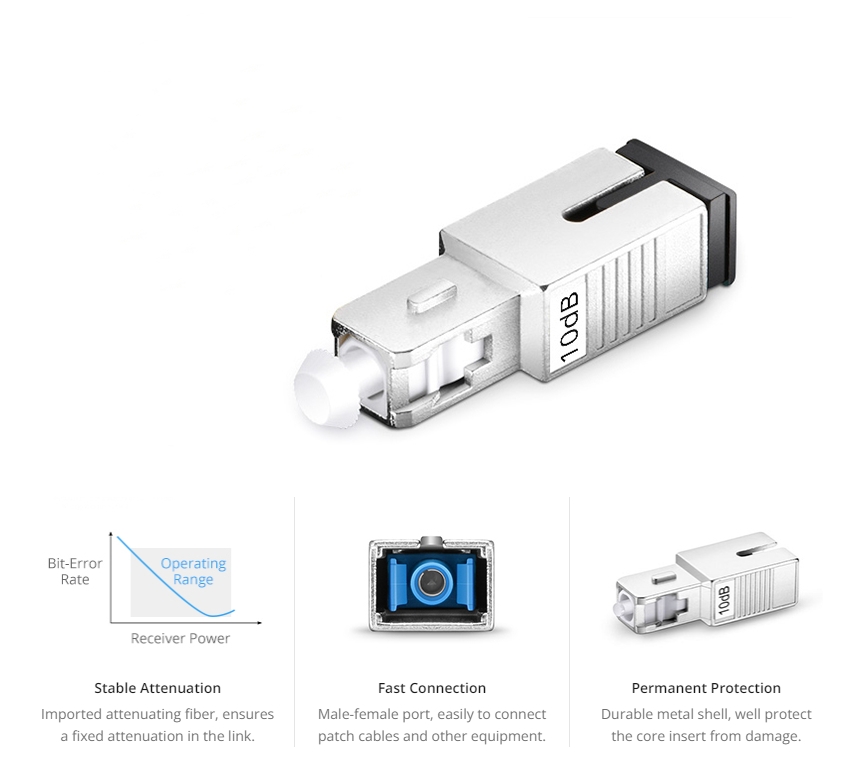

Features
Standard Fixed Attenuation Values of 1dB up to 25dB
Applied for CWDM, DWDM, Test Equipment, CATV Systems, Point to Point Systems, etc.
Attenuating Material-ion Doped Fiber
1260 to 1620nm Wavelength Singlemode Attenuators
Precision Polishing for Reduced Back Reflection
High Precision Fiber Optic Ceramic Ferrules
Snap in Body for Fast Mating and De-mating
Specifications
| Fiber Connector | SC | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male to Female | Transfer Mode | SMF |
| Attenuation | 1~25dB | Operating Wavelength(nm) | 1260~1620 |
| Attenuation Accuracy | 1-9dB±0.5dB, 10-25dB±10% | Return Loss | UPC≥50dB, APC≥60dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Humidity | 95%RH | Operating Temperature Range | -25 to 70°C (-13 to 158°F) |
| Storage Temperature Range | -40 to 85°C (-40 to 185°F) |

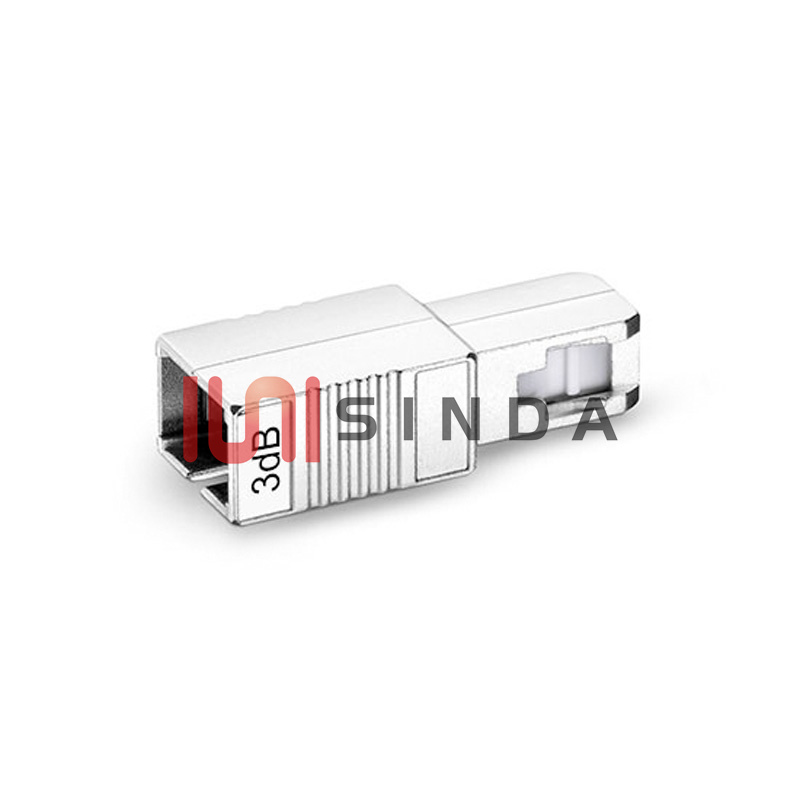

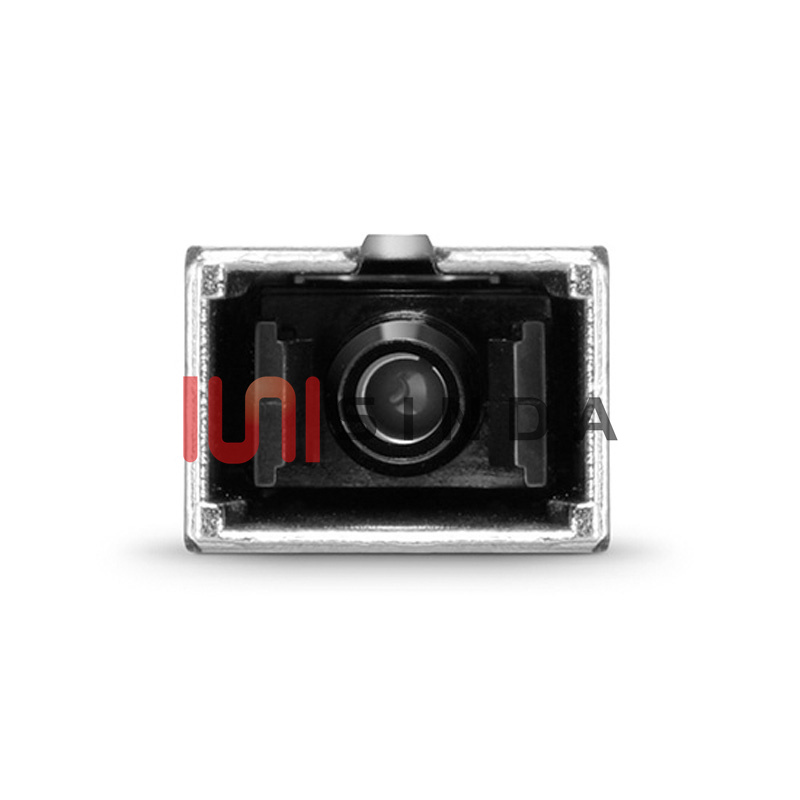

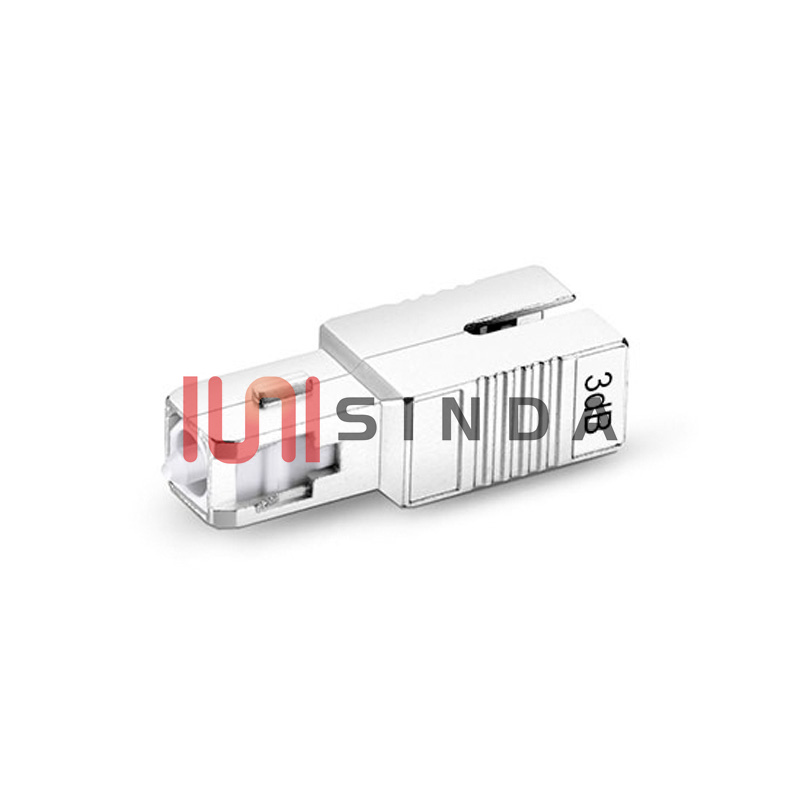

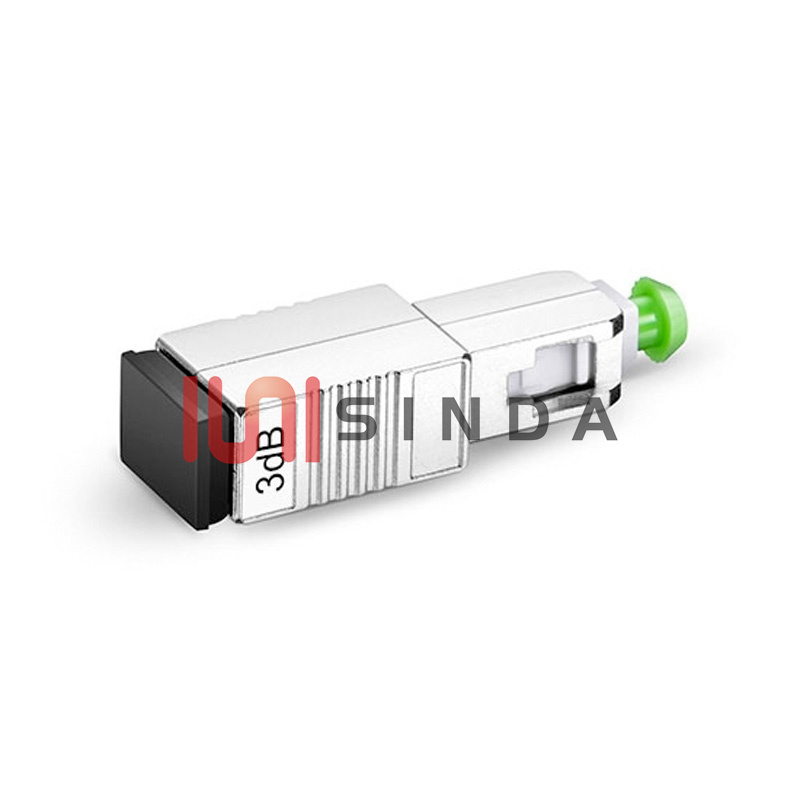

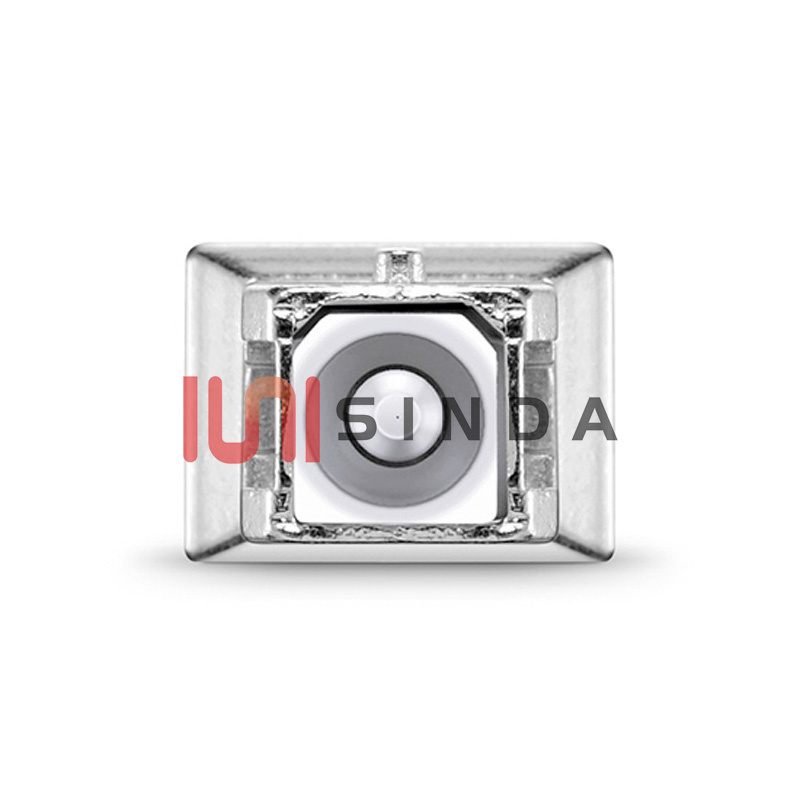

Fixed SC Singlemode Fiber Optic Attenuator, 1~25dB

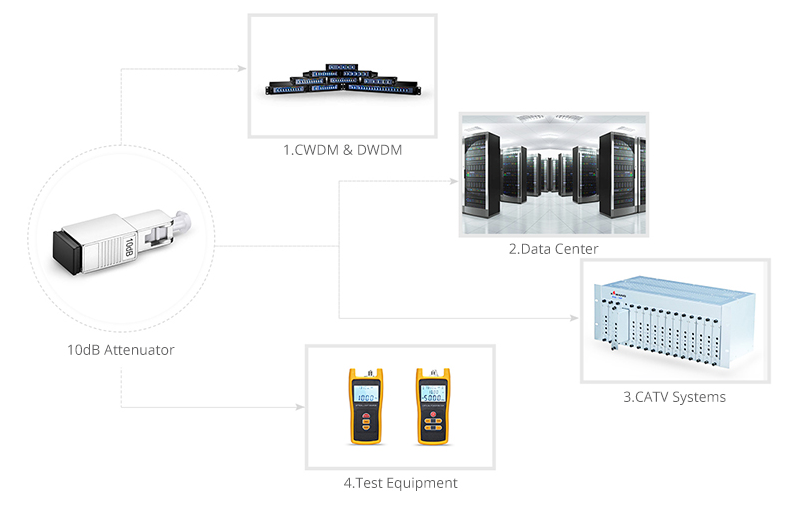

Attenuator Application
Optical attenuator is widely used in CWDM & DWDM, CATV systems, data center networks, test equipment and other high power applications.
