Specifications
| Fiber Connector | ST | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male to Female | Transfer Mode | SMF |
| Attenuation | 1~25dB | Operating Wavelength(nm) | 1260~1620 |
| Attenuation Accuracy | 1-9dB±0.5dB, 10-25dB±10% | Return Loss | UPC≥50dB, APC≥60dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Humidity | 95%RH | Operating Temperature Range | -25 to 70°C (-13 to 158°F) |
| Storage Temperature Range | -40 to 85°C (-40 to 185°F) |
Features
Standard Fixed Attenuation Values of 1dB up to 25dB
Applied for CWDM, DWDM, Test Equipment, CATV Systems, Point to Point Systems, etc.
Attenuating Material-ion Doped Fiber
1260 to 1620nm Wavelength Singlemode Attenuators
Precision Polishing for Reduced Back Reflection
High Precision Fiber Optic Ceramic Ferrules

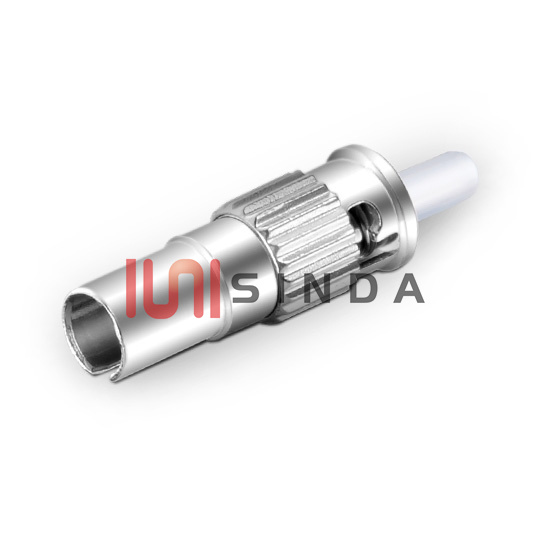

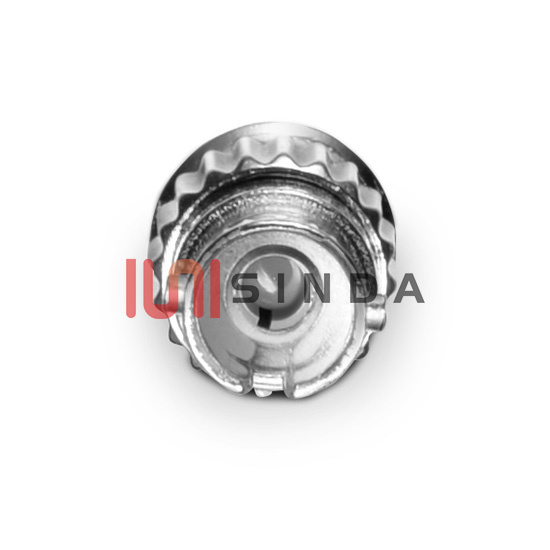

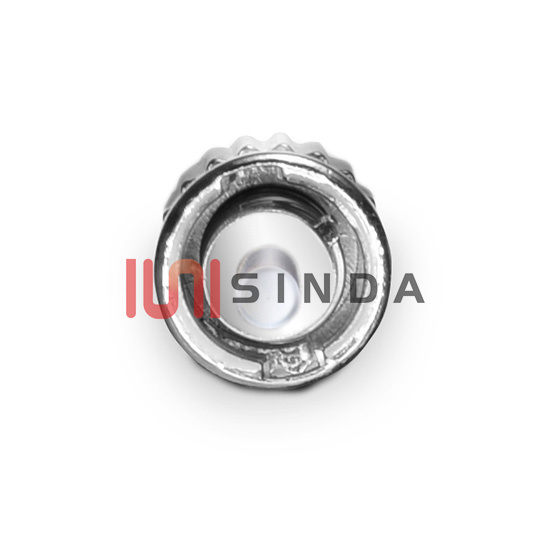

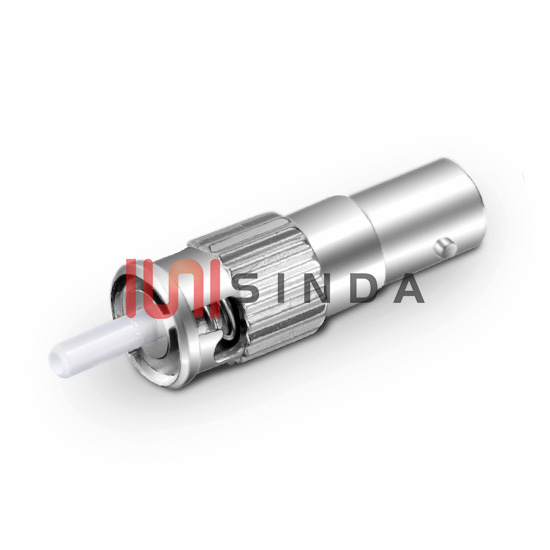

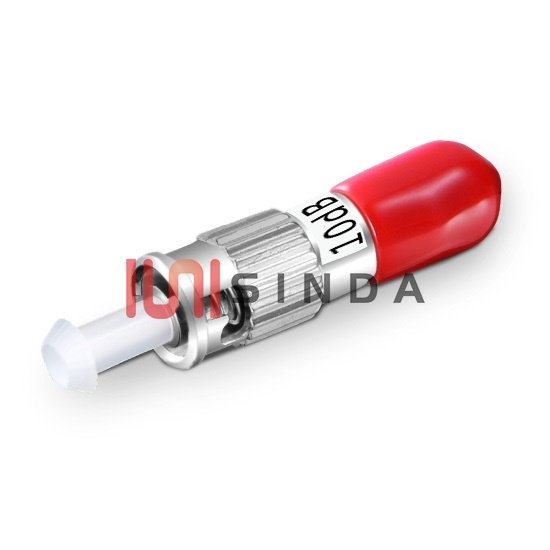

Fixed ST Singlemode Fiber Optic Attenuator, 1~25dB

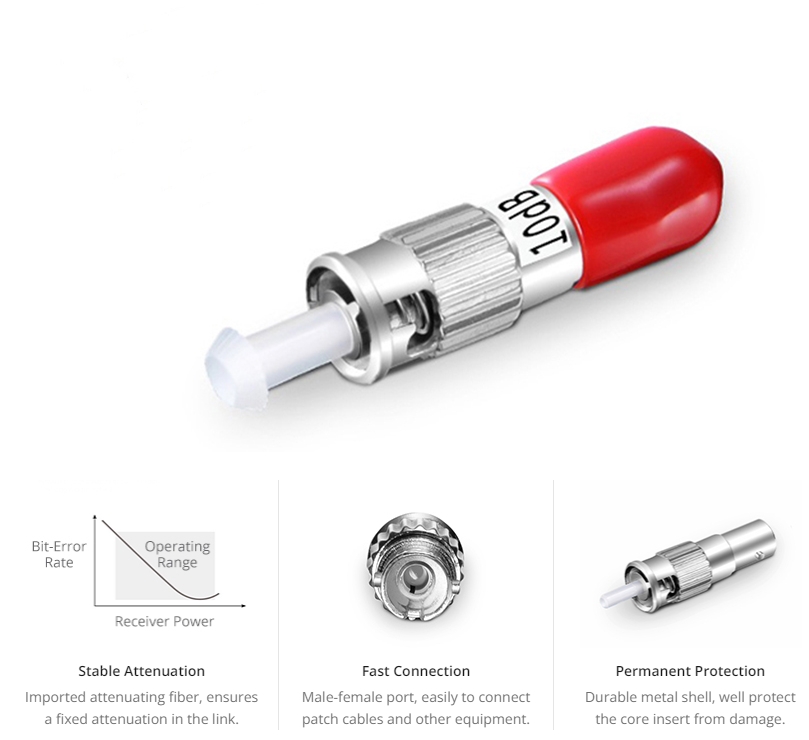

The Optical attenuator has precise attenuation values, low PDL, low insertion loss and fine reflection polishing.

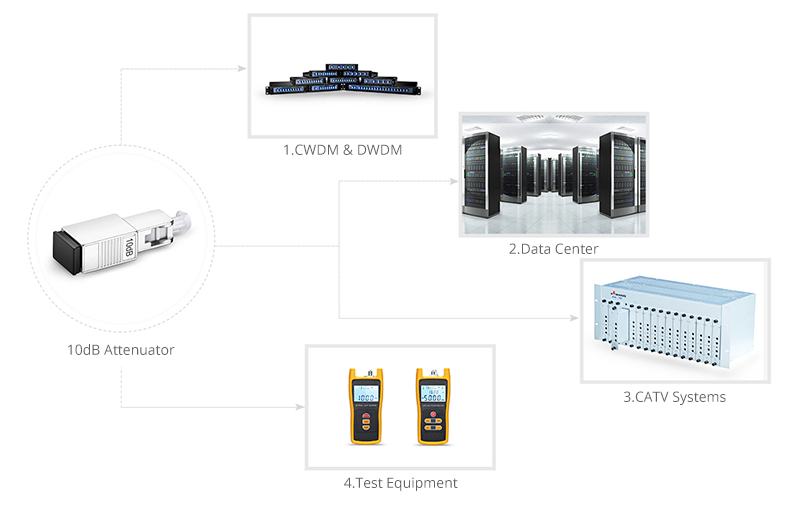

Attenuator Application
Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.
