Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site

Spiral types SC fast connector wholesale

Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site

Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site,The SINDA Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Chat Now

Description

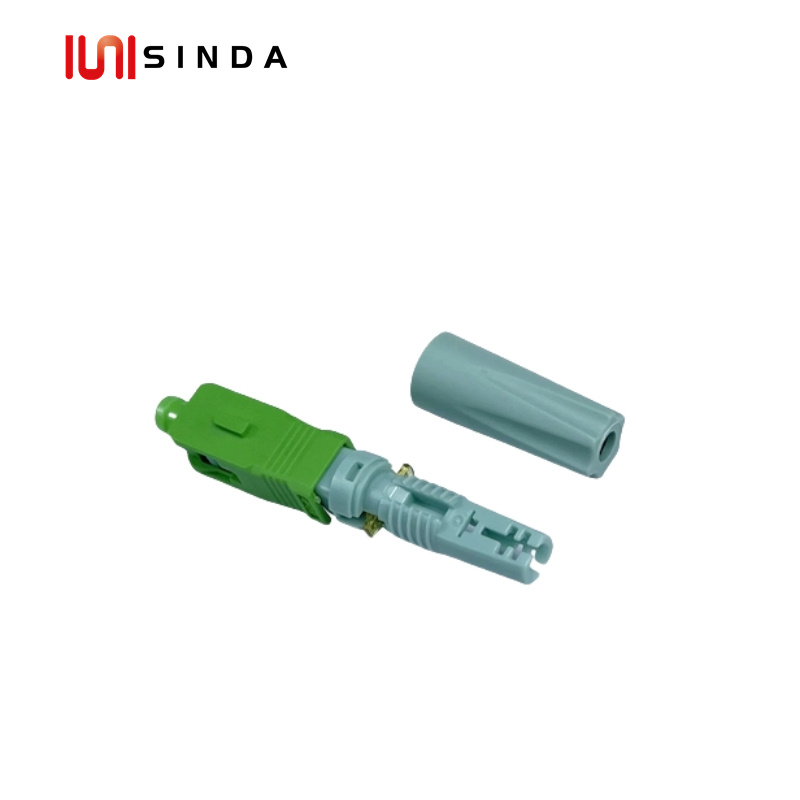

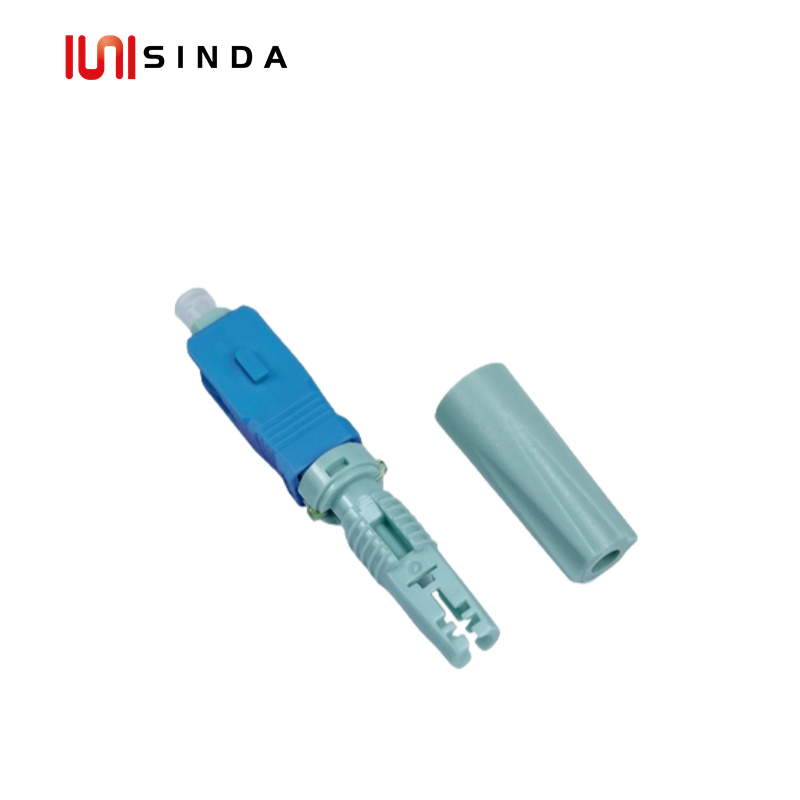

Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site

The SINDA Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Features

1.Ease of use: Fast Connectors are designed for easy and fast installation, eliminating the need for specialized tools and reducing the time and cost associated with traditional connector types.

2.Flexibility: Fast Connectors are available in a range of configurations, including single mode and multimode, and can be used with different types of fiber optic cables, making them a versatile option for a variety of applications.

3. Reliability: Fast Connectors are designed to provide a stable and secure connection that is resistant to vibration and other environmental factors that can cause signal loss or degradation.

4. Low insertion loss: Fast Connectors have low insertion loss, which means that they can transmit signals with minimal attenuation, ensuring that data is transmitted with high accuracy and speed.

5. Reusability: Fast Connectors are reusable, allowing them to be disconnected and reconnected multiple times without affecting their performance, which can save time and money in the long run.

6. Compatibility: Fast Connectors are designed to be compatible with other fiber optic equipment, such as transceivers and switches, making them a seamless and efficient part of a larger fiber optic network.

Specifications

Name	Spe.	Remarks
Fiber type	Single mode or Multi mode	Consistent with ROHS,IEC
Applicable for	Indoor or Outdoor FTTH
Cable diameter	Φ3.0～φ3.5mm Round Cable
Diameter of Cermic core	2.499±0.002mm
Concentricity of Ceramic core	≦0.5um
Material of plastic parts	PBT(Main-body)；PEI(Inner-core);Dust Cap(PE)
Spring material	304

Project	Index	Remarks
Operating Wavelength	1260～1650nm	Consistent with GR326,IEC
Insertion loss	0.3dB(Typical);0.5dB(Max.)
Return loss	APC ≥50dB;UPC≥45dB
Repeatability	500 repetitions / I L ≤0.3 DB
Tensile Strength	≥40N(Δ IL≤ 0.2dB)
Operation time	About 50S
Reusable	≥10 times
Operating Temperature	-25～+85℃

Applications

Router
Set top Box
Wireless Device
Television Equipment

Quality Certification

Hot Tags : Spiral types SC fast connector Fast connector SC/APC Fast SC connector SC field fast connector Fast connector SC/UPC SC fiber fast connector
