1-4 core SM bare fiber Indoor FTTH Drop cable

1-4 core SM bare fiber Indoor FTTH Drop cable

1-4 core SM bare fiber Indoor FTTH Drop cable, FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted.

Chat Now

Description

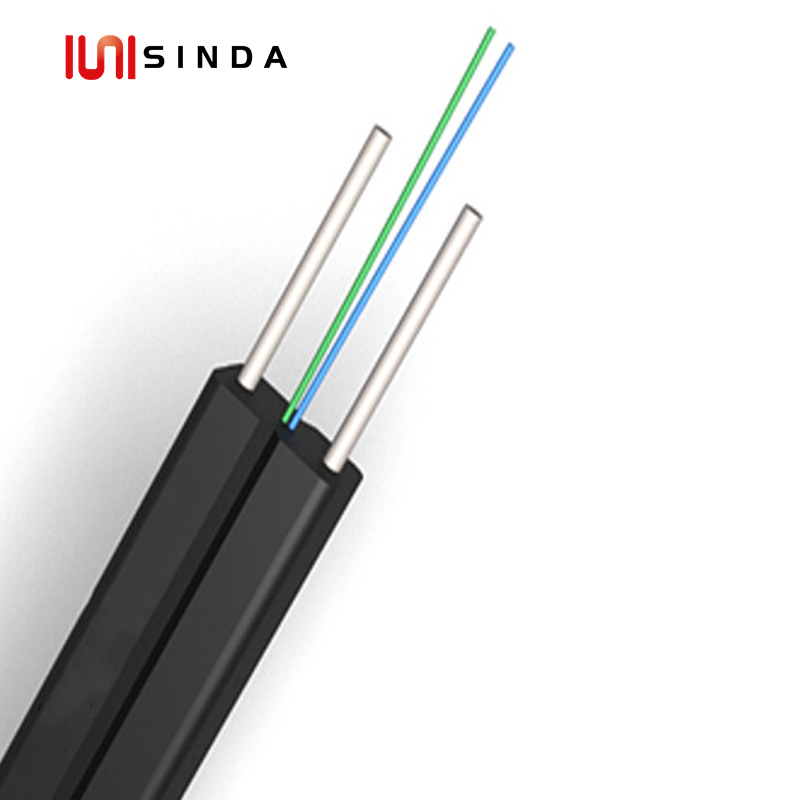

1-4 core SM bare fiber Indoor FTTH Drop cable

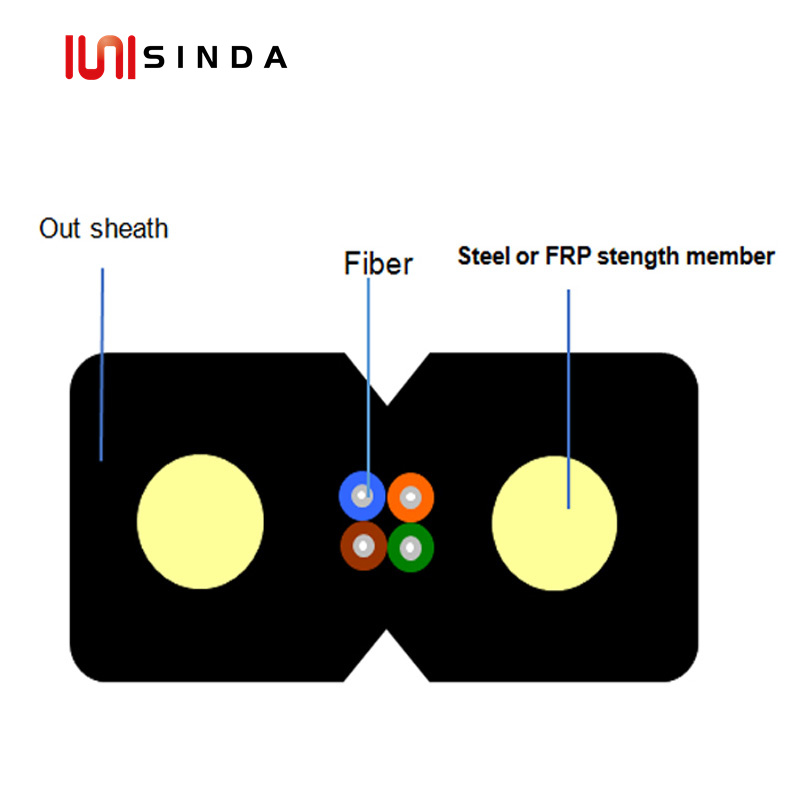

The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.

Feature

Suitable for limited space field of the branch, indoor series;
Laid to facilitate construction operations;part and the cable;
Jacket use low smoke, halogen-free flame-retardant materials;
Prevent lightning and strong electric environment;
FRP strengthen the component materials.

Cable construction details

No.of fiber	1F-4F
Gross weight	8.5kg/km
SM fiber	Fiber type	9/125	MFD	8.6～9.8um
	Cladding diameter	125±0.7um	Cladding non-circularity	≤0.7%
	Coating	245±5um	Fiber color	standard spectrum
	diameter
Strength member	Material	FRP / Steel wire	Color	white
	Diameter	0.5mm	Qty	2
Out sheath	Material	LSZH	Color	White / Black
	Diameter	2.0 (±0.1) *3.0mm (±0.1)	Thickness	≧0.5mm

Cable mechanical and environment characteristics

Tensile strength	Long term（N）	40N
	Short term（N）	80N
Crush load	Long term（N）	500N/100mm
	Short term（N）	1000N/100mm
Bending radius	Dynamic	20D
	Static	10D
Temperature	-20℃～+70℃

Fiber characteristics

Fiber style	Unit	SM G652D	MM 50/125	OM3-150
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Cladding diameter	um	125±1	125±1	125±1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±7	242±7	242±7

Applications

Adopted to indoor distribution;
As pigtail of communication equipment;
Suitable for communication equipment;
Can be installed conveniently.

Quality Certification
