Fiber to the home aerial drop cable (2core FTTH)，FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted.
Fiber to the home aerial drop cable (2core FTTH)

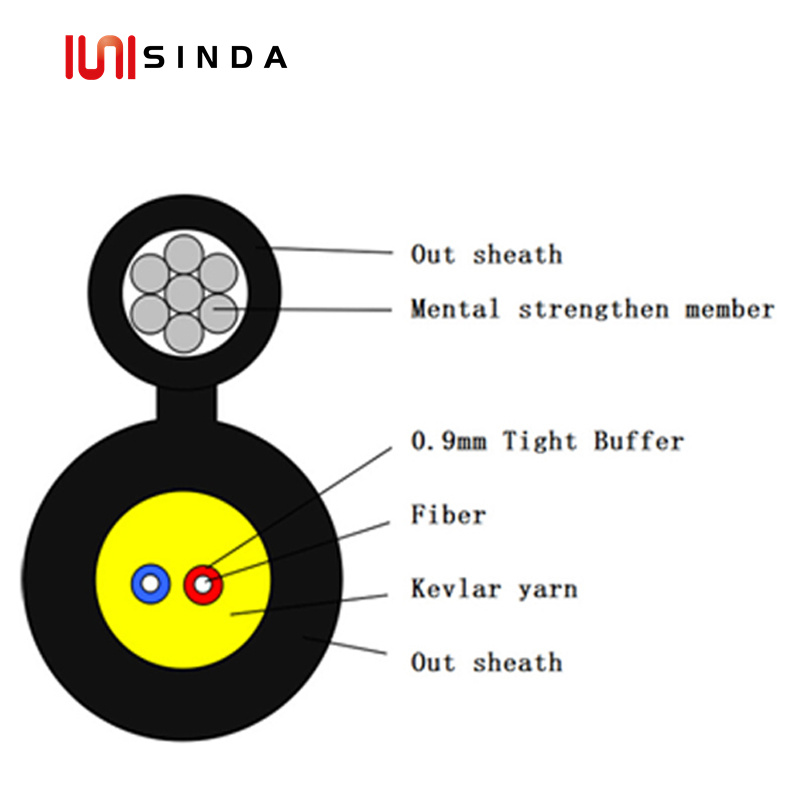

The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black HDPE sheath.
Features
Good mechanical and enviromental characteristic
Anti-UV charateristics meet the requirements of relevant standards
The mechanical charateristics meet the requirements of relevant standards
Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
Meet various requirements of market and clients
Cable construction details
| Items | Description | |||||
| Number of fiber | 2cores | |||||
| Fiber | type | G657A tight buffer | ||||
| diameter | 250µm | |||||
| Strength member | materia | Kevlar yarn | ||||
| Self support | material | Steel wire | ||||
| Messenger wire | diameter | 1.2mm Steel wire | ||||
| Outer sheath | material | LSZH | ||||
| diameter | 1.8±0.2mm | |||||
| Cable size (Height * width) | 3.5 mm × 6.5mm | |||||
| Cable weight | 26KG±1KG | |||||
| Installation Temperature range（℃） | 40 | |||||
| Operation and transport temperature（℃） | 30 | |||||
| Min Bending Radius(mm) | Long term | 15D | ||||
| Min Bending | Short term | 30D | ||||
| Radius(mm) | ||||||
| Min allowable | Long term | 500 | ||||
| Tensile Strength(N) | ||||||
| Min allowable | Short term | 700 | ||||
| Tensile Strength(N) | ||||||
| Crush Load (N/100mm) | Long term | 500 | ||||
| Crush Load (N/100mm) | short term | 1000 | ||||
Standard color of fiber and tube
| Standard Colour Identification | |||||||
| No. | 1 | 2 | |||||
| Color | Blue | Orange | |||||
Fiber characteristic
| Fiber style | Unit | SM | MM | MM | MM | |
| G652 | 50/125 | 62.5/125 | OM3-300 | |||
| condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) | ---- | 0.200+/-0.015 | 0.275+/-0.15 | 0.200+/-00.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | ||||||
| Difference backscatter coefficient | dB/km | ≤0.05 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | ||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ---- | ---- | ---- | |
Application
Adopted to outdoor level and vertical distribution.
Suitable for connect with communication equipment.
Long distance and local area network communication.
Package
| 1.Packing material: Wooden drum | ||||||
| 2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler | ||||||
| if required by custome |
Cable marking and cable reel marking
The cable sheath shall be marked with white characters according to customer's requirement.
Quality Certification
