FTTH 4core Losse Tube Type Fiber Optic Drop Cable

FTTH 4core Losse Tube Type Fiber Optic Drop Cable

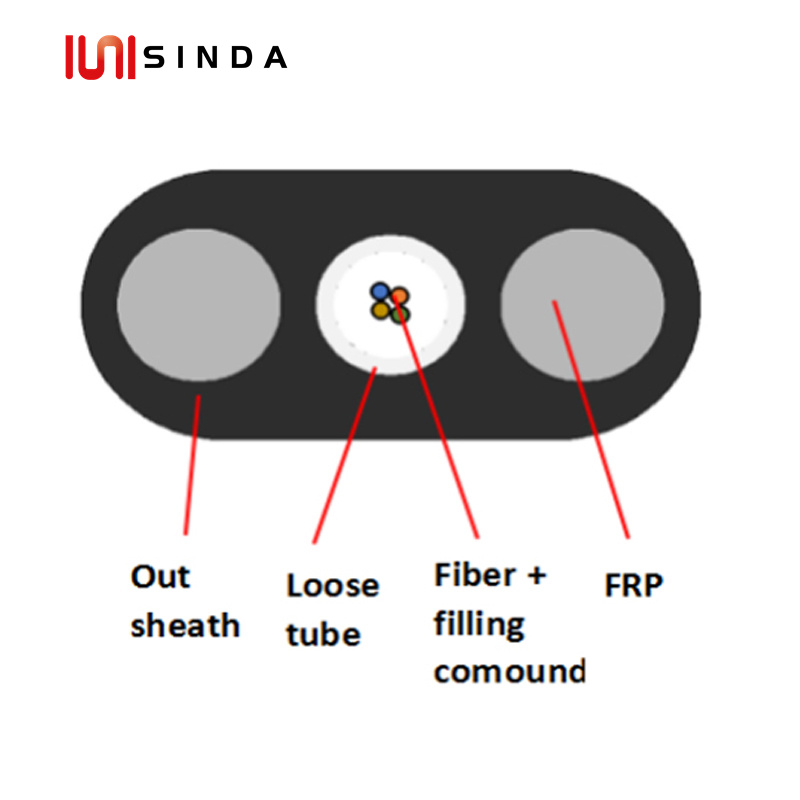

The cable put in side with 2 FRP, the optical fiber unit positioned in the Loose tube. Two parallel strength member are placed at the two sides and have loose tube to protect the inside FTTH, outside sheath is HDPE.

Chat Now

Description

FTTH 4core Losse Tube Type Fiber Optic Drop Cable,

Features

Good mechanical and enviromental characteristic

Anti-UV charateristics meet the requirements of relevant standards
The mechanical charateristics meet the requirements of relevant standards
Big capacity data transmission
Meet various requirements of market and clients

Cable construction details

No.of fiber	4F
SM fiber	Fiber type	G657A1	Concentricity error	≤0.5um
	MFD	8.6～9.8um	Cladding non-circularity	≤0.7%
	Cladding diameter	124.8±0.7um	Fiber color	standard spectrum
Loose tube	Material	PBT	Color	Natural color
	Diameter	1.8±0.1mm	Thickness	0.2±0.05mm
Strength member	Material	FRP	Color	white
	Type	Ф2.0mm	Qty	2
Out sheath	Material	HDPE	Color	black
	Diameter	3.5*7.5（±0.3mm）	Thickness	≧1.0mm

Cable mechanical and environment characteristics

Tensile strength	Long term（N）	40N
	Short term（N）	80N
Crush load	Long term（N）	500N/100mm
	Short term（N）	1000N/100mm
Bending radius	Dynamic	20D
	Static	10D
Temperature	-20℃～+70℃

Fiber characteristics

Fiber style	Unit	SM G652D	MM 50/125	OM3-150
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.4/0.3	≤3.0/1.0	≤3.0/1.0

Applications

Adopted to cabling.
Suitable for aerial and duct drop installation
Long distance and local area network communication.

Certifications
