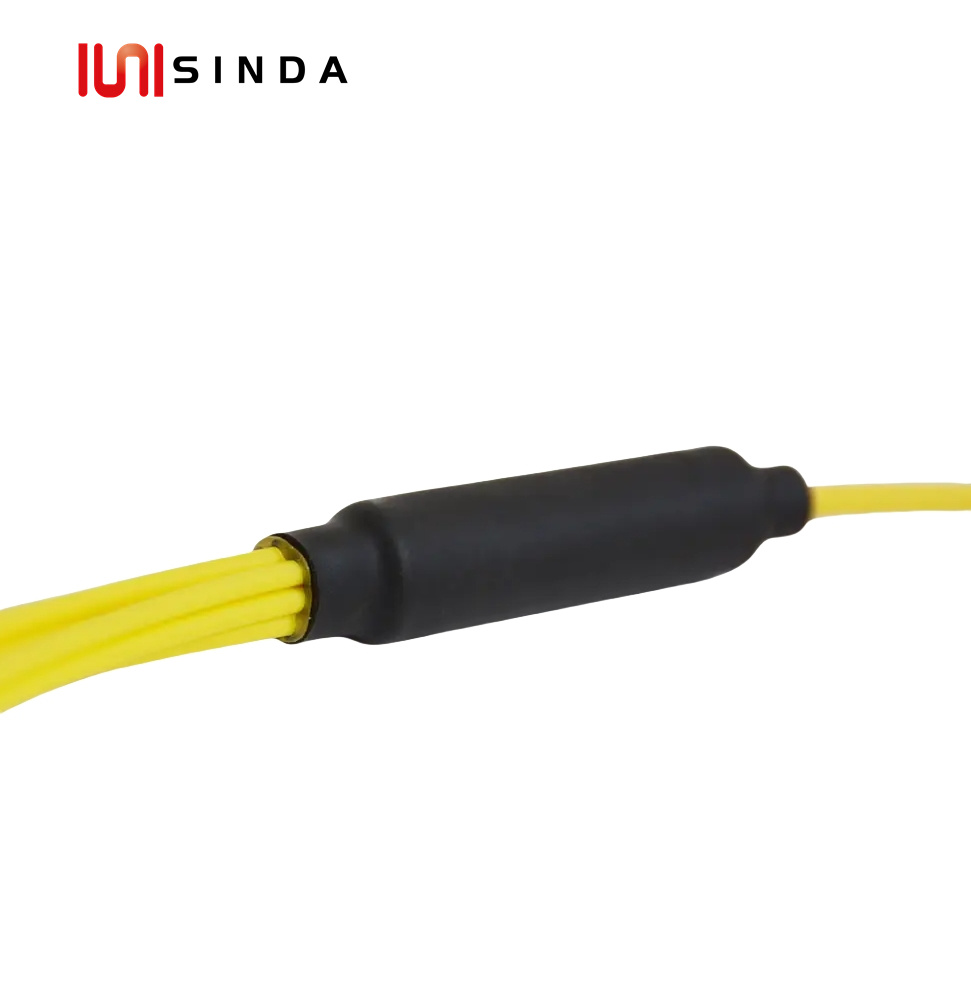

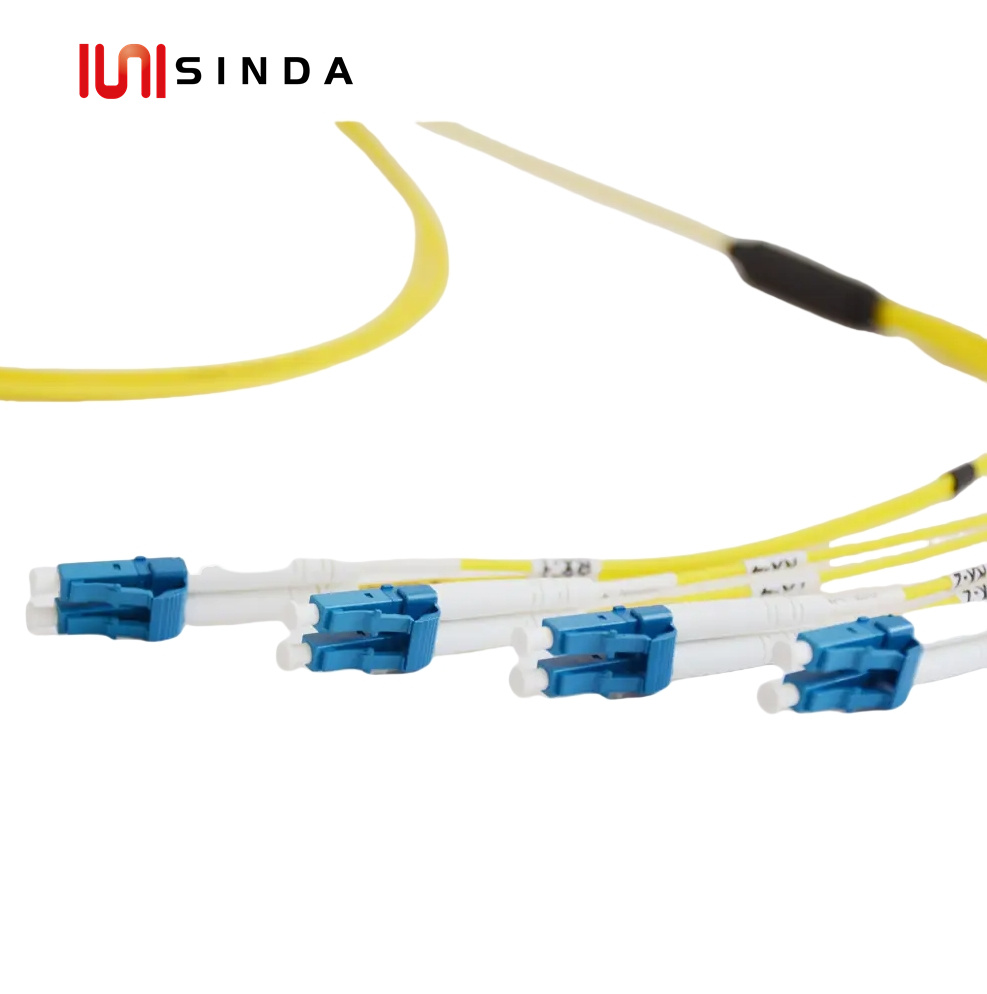

MPO/MTP Harnesses Cables, MTP®-16 UPC (Female) to 8 LC UPC Duplex, 16 Fibers, Single Mode (OS2), Plenum (OFNP), 0.75dB Max, Yellow

MPO/MTP Harnesses Cables, MTP®-16 UPC (Female) to 8 LC UPC Duplex, 16 Fibers, Single Mode (OS2), Plenum (OFNP), 0.75dB Max, Yellow

MPO/MTP Harnesses Cables, MTP®-16 UPC (Female) to 8 LC UPC Duplex, 16 Fibers, Single Mode (OS2), Plenum (OFNP), 0.75dB Max, Yellow.

The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Chat Now

Description

MPO/MTP Harnesses Cables, MTP®-16 UPC (Female) to 8 LC UPC Duplex, 16 Fibers, Single Mode (OS2), Plenum (OFNP), 0.75dB Max, Yellow

MTP®-16 is optimized for 800G OSFP XDR8 to 100G QSFP28 FR, 800G QSFP-DD/OSFP DR8 to 100G QSFP28 DR optics connection and high-density data center applications.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Features

US Conec MTP Connector with Standard 0.75dB IL

Corning SMF-28 Ultra Fiber with 10mm Min. Bend Radius

OFNP Fire Safety-Rated for Use in Plenum Air Spaces

Color-Coded Connector Boots for Easy Identification

Typically Used for Patching Within a Cabinet

Specification

Connector A	US Conec MTP®-16 Female (Pinless) with Offset Key	Connector B	LC UPC Duplex
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Glass Fiber	Corning SMF-28® Ultra	Fiber Grade	G.657.A1 (Compatible with G.652.D)
MTP Connector IL	0.75dB Max (0.35dB Typ.)	LC Connector IL	≤0.2dB
MTP Connector RL	≥60dB	LC Connector RL	≥50dB
Attenuation at 1310nm	≤0.32dB/km	Attenuation at 1550nm	≤0.18dB/km
Cable Jacket	Plenum (OFNP)	Fiber Count	16 Fibers
Cable Outside Diameter (OD)	3.0mm	Breakout Outside Diameter (OD)	2.0mm
Installation Tensile Load	66N	Tensile Strength (Long/Short Term)	80/240N
Operating Temperature	-10 to 60°C (14 to 140℉)	Storage Temperature	-10 to 70°C (14 to 158℉)

Applications

FTTx hardened connector cabling infrastructure

MTP brand MPO cable assemblies

Optical backplane connectivity for OBO architectures

Standards Compliance IEC 61754-5

Standards Compliance IEC 61754-7-1; 61754-7-2

Standards Compliance TIA 604-5

Quality Certification
