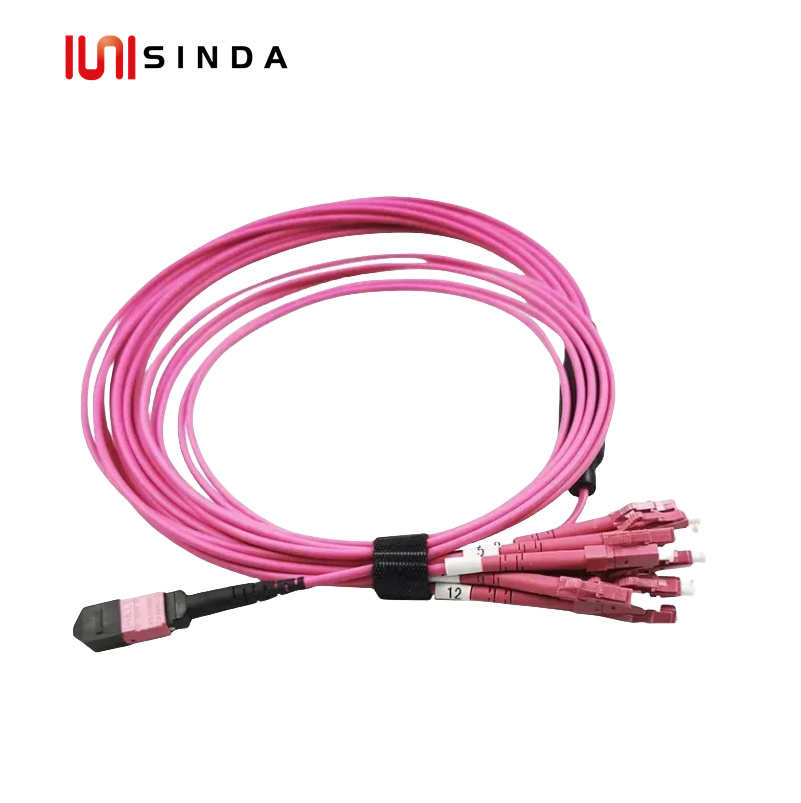

MTP® Harness ,MTP®-12 UPC (Female) to 6 LC UPC Duplex Uniboot , 12 Fibers, Multimode (OM4), LSZH, 0.35dB Max, Type A, Magenta

MTP® Harness ,MTP®-12 UPC (Female) to 6 LC UPC Duplex Uniboot , 12 Fibers, Multimode (OM4), LSZH, 0.35dB Max, Type A, Magenta

MTP® Harness , MTP®-12 UPC (Female) to 6 LC UPC , 12 Fibers, Multimode (OM4), LSZH, 0.35dB Max, Type A, Magenta,US Conec offers a full suite of MTP® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

Chat Now

Description

MTP® Harness , MTP®-12 UPC (Female) to 6 LC UPC Duplex Uniboot , 12 Fibers, Multimode (OM4), LSZH, 0.35dB Max, Type A, Magenta

US Conec offers a full suite of MTP® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

FEATURES

100% pre-terminated and tested in factory to ensure transfer performance

Rapid configuration and networking, reduce installation time

Supports 40G and 100G network applications

Jacket material: LSZH, OFNR, OFNP available

Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

SPECIFICATIONS

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Note:

1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)

Environment Conditions
Item	Criteria	Conformance
Operation Temperature	-40~60°C	IEC 61753-1
Storage Temperature	-45~85°C	IEC 61753-1

APPLICATIONS

FTTx hardened connector cabling infrastructure

MTP brand MPO cable assemblies

Optical backplane connectivity for OBO architectures

Standards Compliance IEC 61754-5

Standards Compliance IEC 61754-7-1; 61754-7-2

Standards Compliance TIA 604-5

Quality Certification
