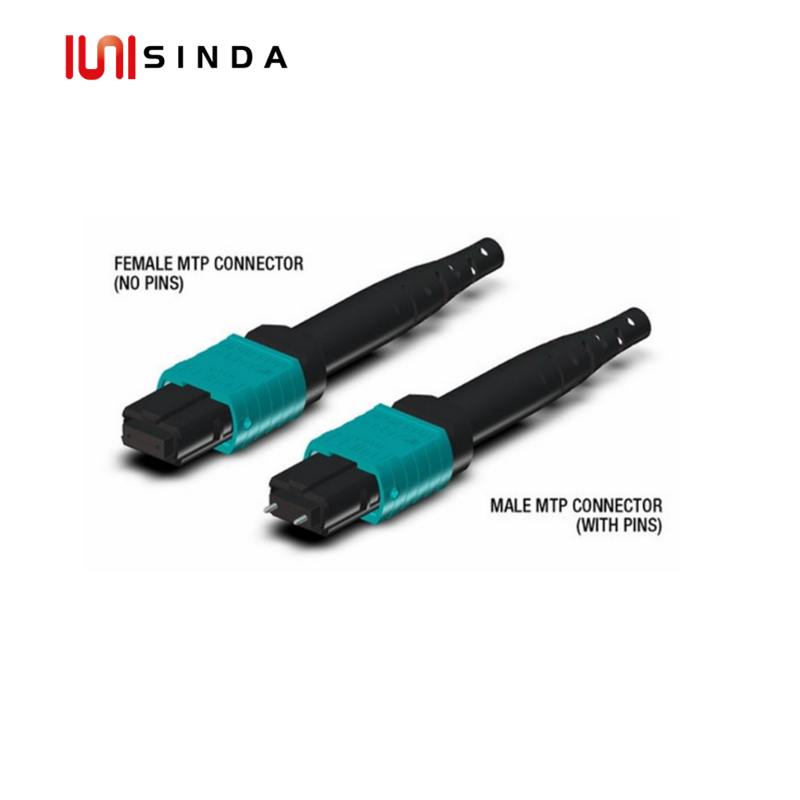

USCONE MTP® Jumper, MTP®-24 UPC (Female) to MTP®-24 UPC (Female), 24 Fibers, Multimode (OM4), Plenum (OFNP)

USCONE MTP® Jumper, MTP®-24 UPC (Female) to MTP®-24 UPC (Female), 24 Fibers, Multimode (OM4), Plenum (OFNP)

Introduction

The MTP connectors on each end have been specially designed to maximize the cable's high speed capability, allowing you to get the most out of your networking configuration with features like removable housing and ferrule float.

This 100Gb MTP fiber cable uses parallel optics technology, enabling it to transmit a single stream of data over multiple optical fibers, which is what makes 100Gb speeds possible.

Using OM4 fiber optics, experience data transfers over a 1Gbps link with a 50/125 micron glass fiber over a distance of up to 1100 meters at a wavelength of 850nm, and over a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data over a distance of up to 550 meters at 850nm.

Each cable is assembled in-house at our local facility, and tested for interferometry and insertion loss, so enjoy the American-made quality and high performance that LightWave cables provide.

SINDA MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.

Choose Your Polarity

Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.

Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.

Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.

100Gb MTP 24-Strand Fiber Cable Features

Rollover config for CFP to CFP

High density connections between network equipment in telecommunication rooms

Easy installation and removal with push-pull latching

Plenum-rated aqua jacket

Specifications

Simplex cable

24-Fiber count

Nominal Diameter: 3.8mm

Weight: 13.2 lbs

Bend Radius: 2.2in (Installation), 1.5in (Long-term)

Quality Certification
