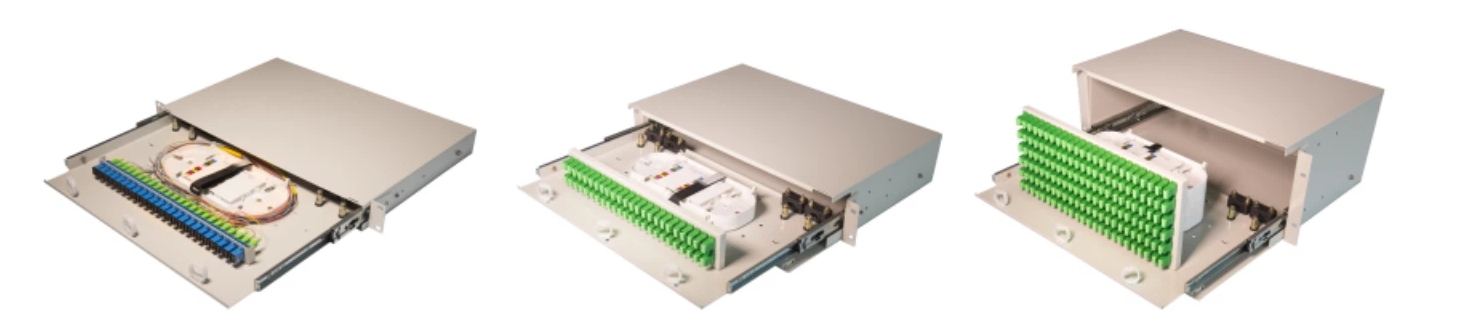

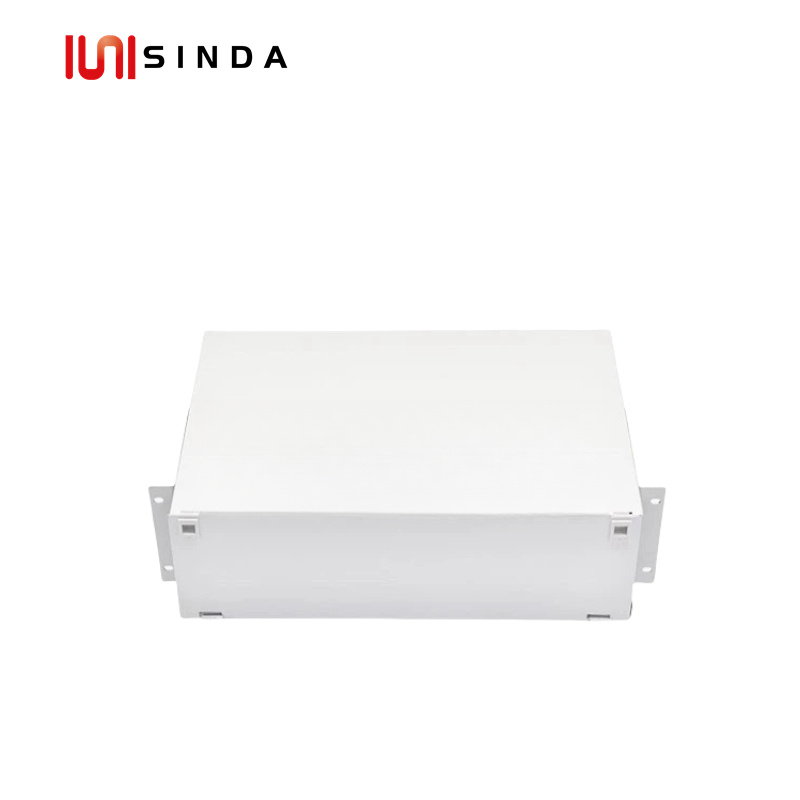

1~4U 96core Sliding Fiber Optic Patch Panel

1~4U 96core Sliding Fiber Optic Patch Panel,SD-CLD series products can be used on the terminal of the optical cables,19 "standard structure,rack-mounted.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description
Description

1~4U 96core Sliding Fiber Optic Patch Panel,

SD-CLD series products can be used on the terminal of the optical cables,19 "standard structure,rack-mounted.





Features


  • Allproperty indexes are in accordance with National YD/T925-2009 Standard.
  • The box body is made ofhigh-quality cold-rolled steel,and the surface is sprayed with plastic treatment technology,which has strong adhesion and is not easy to falloff,beautiful and durable;High-strength engineering plastics are used for the fiber splicing tray.
  • Cable entrance are sealed with oil resistance NBR to increase the flexibility.Users can choose to prick the entrance and exit.
  • Superimposed structure fibersplicing tray makes the core number configuration and expansion convenient and flexible.
  • Customized FC,SC,ST,LC adapter panels.











Specifications


Product Name Model NO. Size(Mm) Max Capacity
(Single Core)
SD-CLD
Fiber patch panel
SD-CLD-1U 430(482)*300*45 24
SD-CLD-2U 430(482)*300*90 48
SD-CLD-3U 430(482)*300*135 96
SD-CLD-4U 430(482)*300*180 144











Accesories


Type SD-CLD-1U SD-CLD-2U SD-CLD-3U SD-CLD-4U
Mounting ear 2pcs 2pcs 2pcs 2pcs
Adapter mounting screws 0~48pcs 0~96pcs 0~192pcs 0~288pcs
Fiber splice protective tube 24pcs 48pcs 96pcs 144pcs
M4*6 Nickel plated screw 6pcs 12pcs 12pcs 12pcs





















Quality Certification
