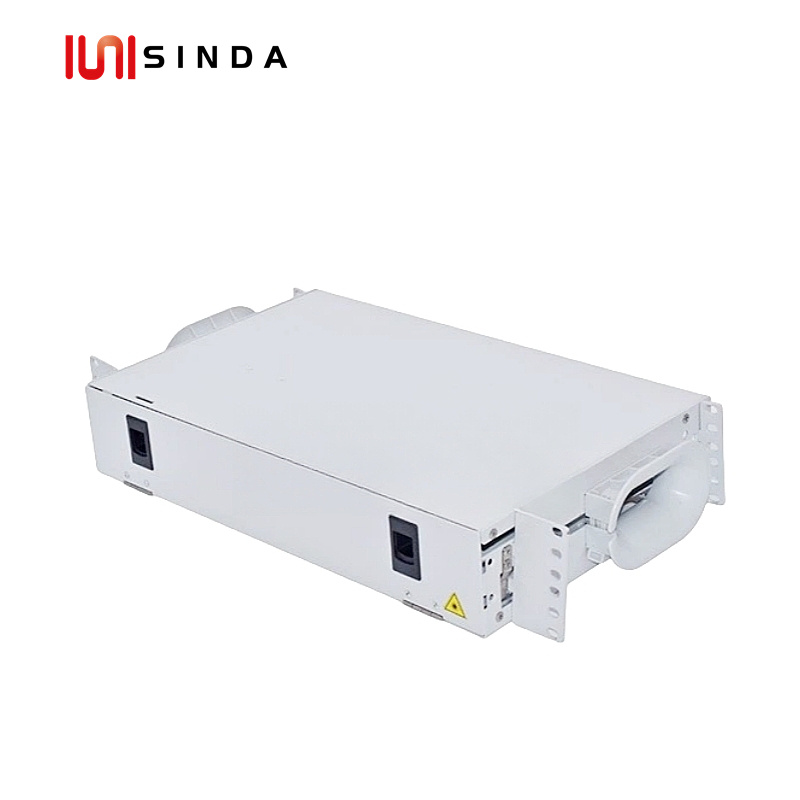

Sliding Fiber Optic Patch Panel Model: SD-RS

Sliding Fiber Optic Patch Panel Model: SD-RS,

ODF SD-RS is sliding type fiber optic patch panel that suitable for the protective connection of loose tube optical cables or bundled pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitters and jumpers,

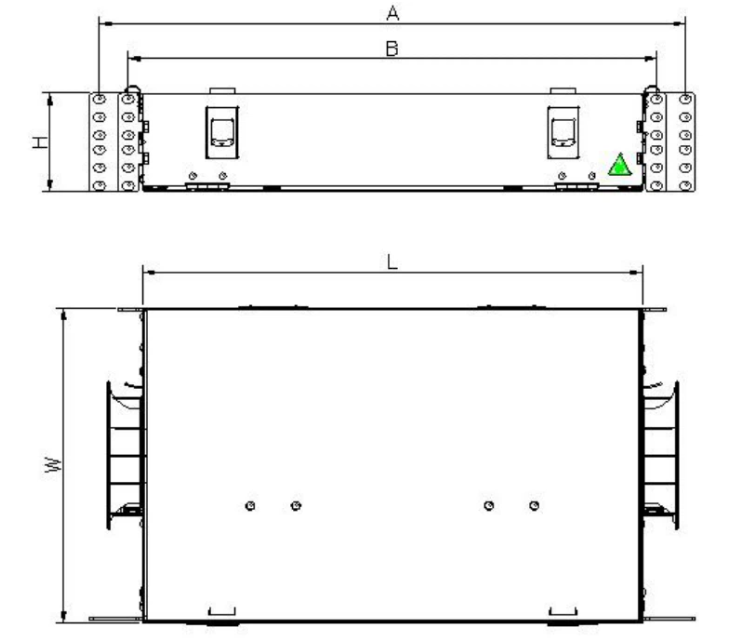

Specifications

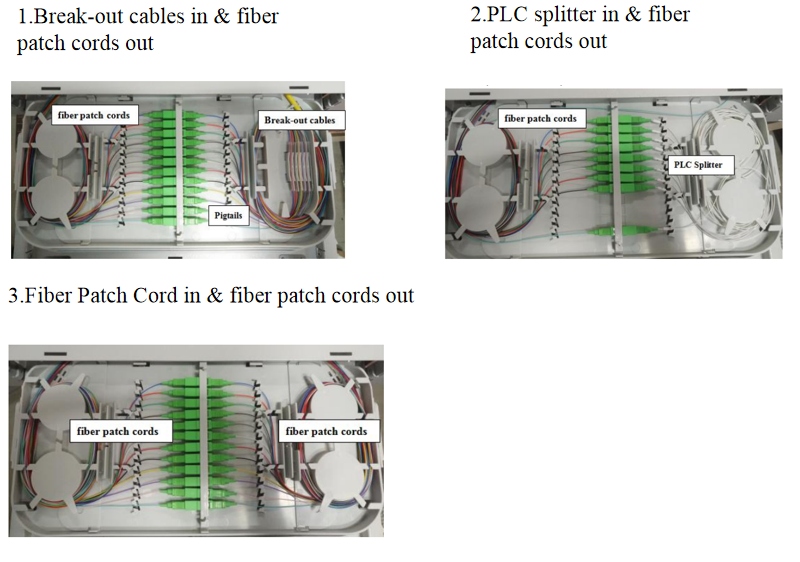

Applications

1) It is made of high-quality cold roll steel & the surface is sprayed with electrostatic powder.

2) The front door has a hinge, a flip-type structure with elastic door buckle locking method.

3) Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high

reliability.

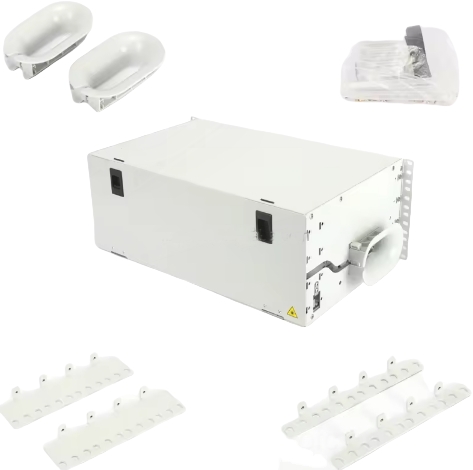

4) The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module, and adapter panel, which can be disassembled and interchanged.

5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There

are supporting members on the side of the tray, which can be flipped, and the fiber splicing is convenient.

6) There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.

7) Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation
