96 Core Patch Panel 1U MPO/MTP-LC 4 Cassette

96 Core Patch Panel 1U MPO/MTP-LC 4 Cassette

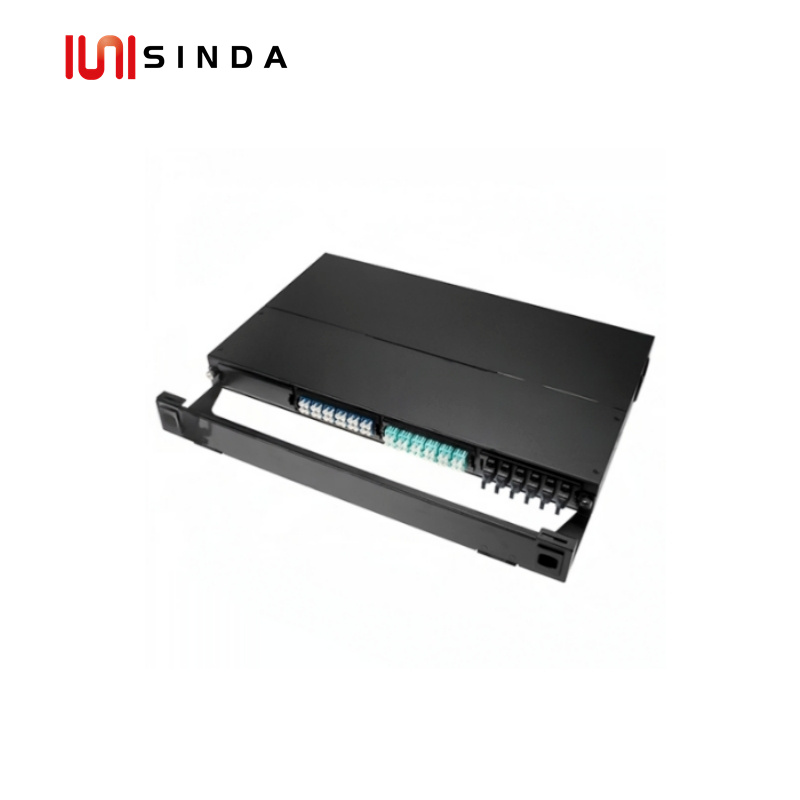

96 Core Patch Panel 1U UHD MPO/MTP-LC 4 Cassette is designed for the 19″ rack-mount cabinet.

Chat Now

Description

96 Core Patch Panel 1U MPO/MTP-LC 4 Cassette，

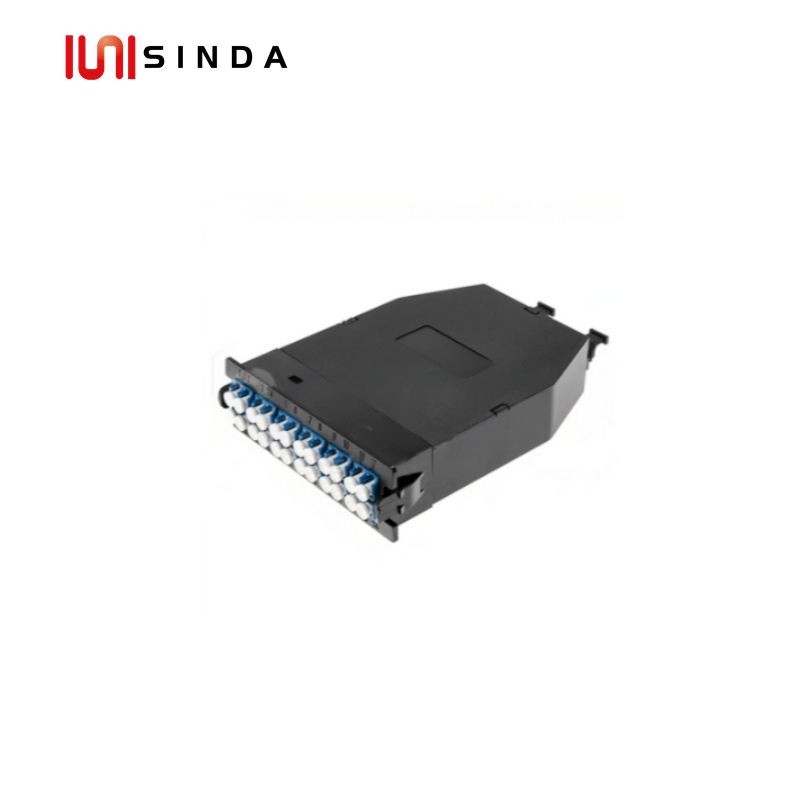

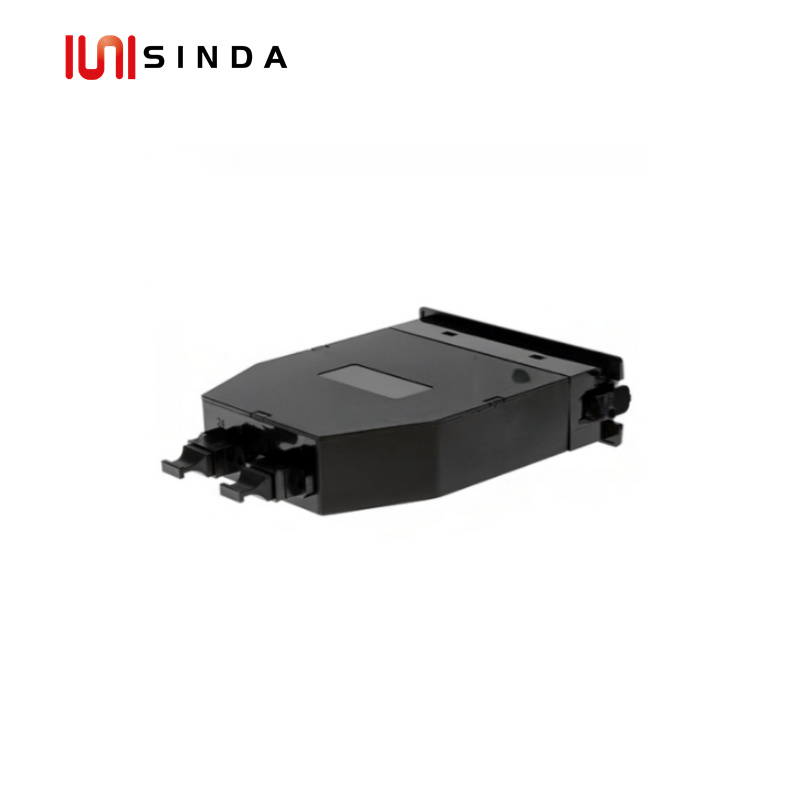

Rack mounted holds up to 4 pcs Fiber Adapter Panels or 4pcs of HD MTP/MPO-LC Cassettes. It provides a high-density flexible system for managing fiber terminations, connections, and patching in data center applications to maximize rack space utilization and minimizes floor space.

Features

Plug-and-play pre-terminated fiber solution reduces installation cost and time
Suitable for MPO/MTP to LC/SC modules
Ultra-High Density Datacenter Cabling system and management.
1U, 2U, and 4U are available to offer.
RoHS compliant

Applications

Telecommunications
Local Area Network
FTTx deployments
Data communication network
CATV

Specifications

ITEM	Standard EIA 19″ Rack
Dimension（mm）	482.6x350x44
Material	CRS Cold rolled steel
Max. cores	96
Adapter type	LC
Weight（kg）	2
MPO Cassette	4 pcs
Max Cores Per Cassette	24 cores

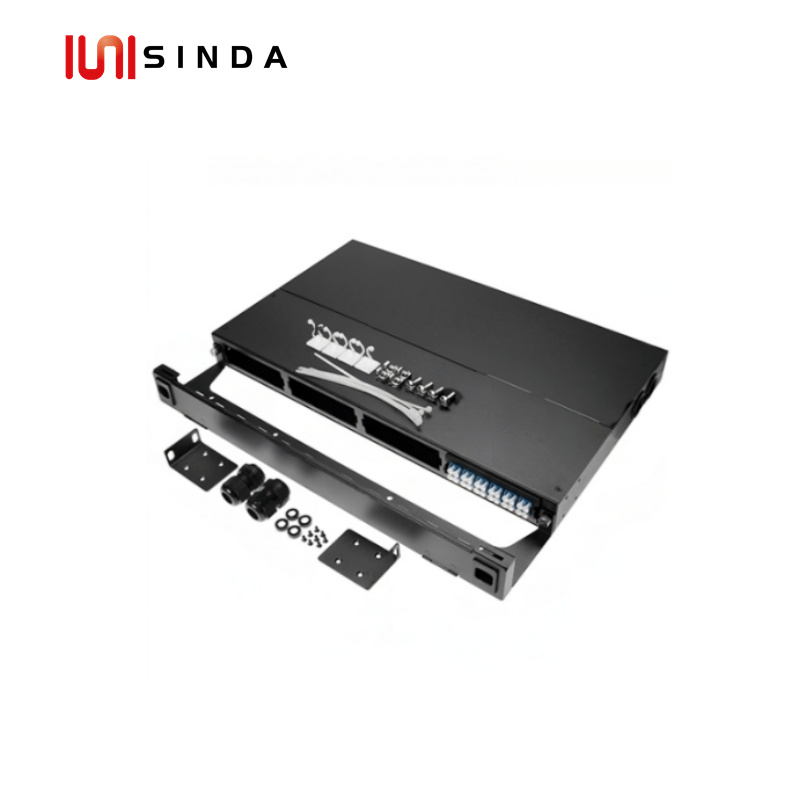

Cable ties	5*150mm 6 pcs
screw	4 sets
Lineation ring	4 pcs
Glandula	2*PG13.5

Quality Certification
