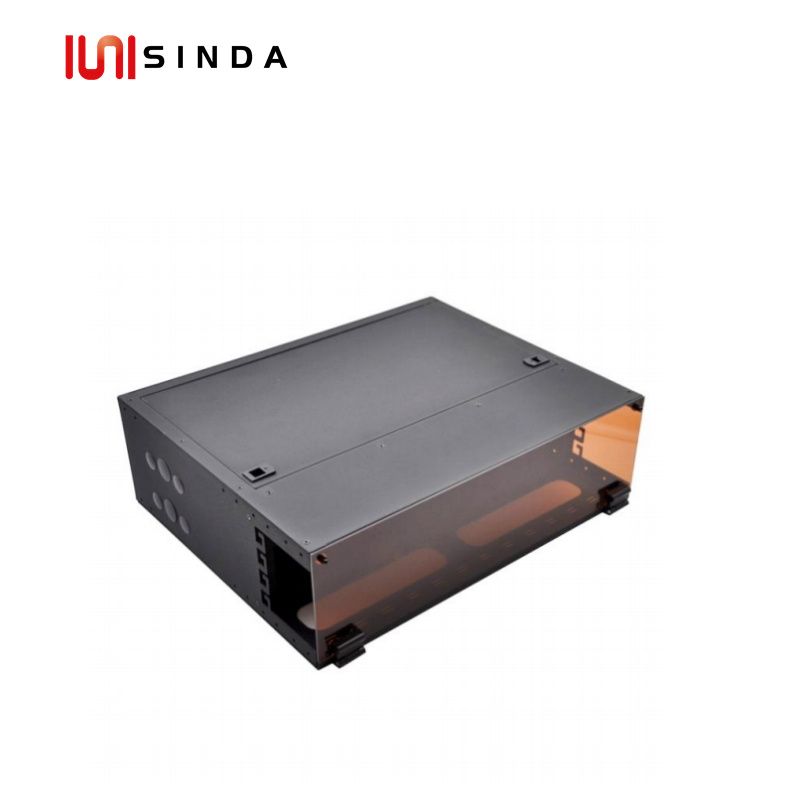

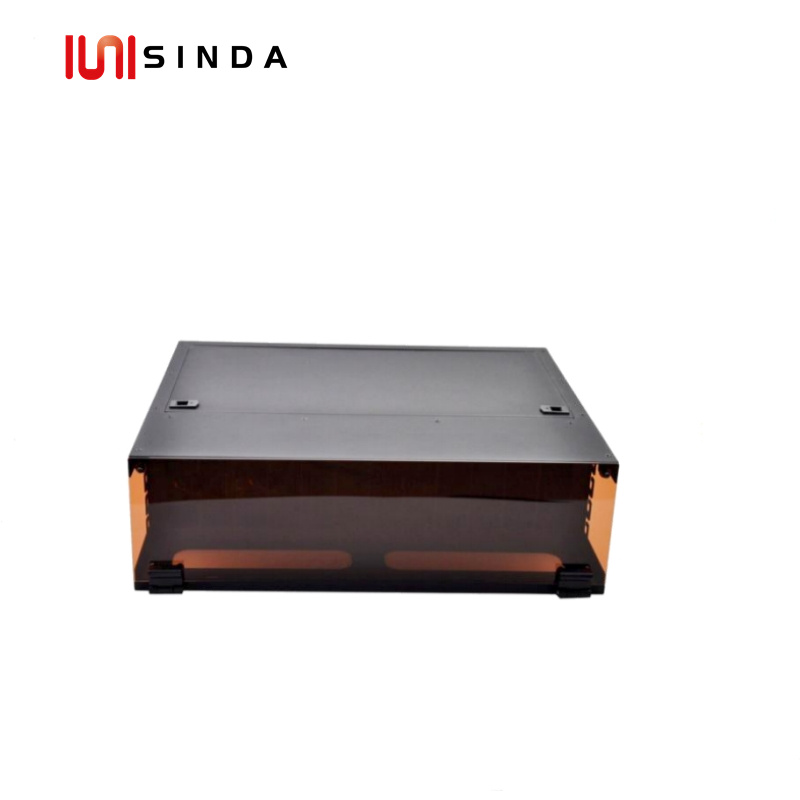

3U 288Core MPO/MTP Fiber Patch Panel

MPO 3U fiber optic distribution box, used for fiber optic trunk connection and distribution cable in the data center distribution area, installed in 19-inch racks and cabinets, can be installed with pre-connected MPO module boxes or MPO adapter panels, LC adapter panels.

Feature

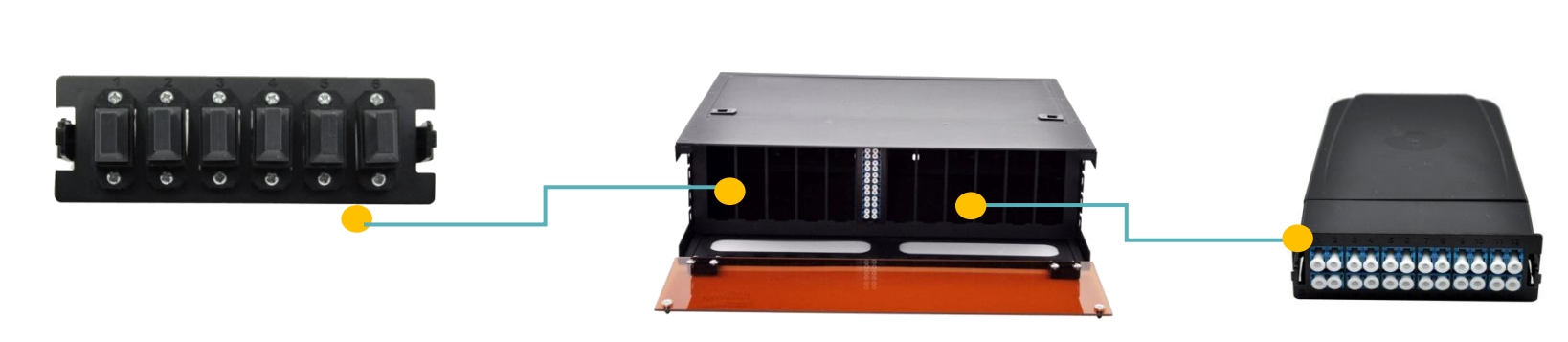

3U fiber box can be installed with 12 MPO pre-terminated module boxes, and the maximum number of fiber cores that can be managed is 288 cores;

3U fiber box can be installed with 12 MPO adapter panels, and the maximum number of fiber cores that can be managed is 864 cores;

Made of high-quality cold-rolled steel plate, the main body plate thickness is 1.5mm;

No burrs, no bubbles, no screw fixation, snap-on cover, tool-free opening;

High-quality acrylic cover, beautiful and generous;
