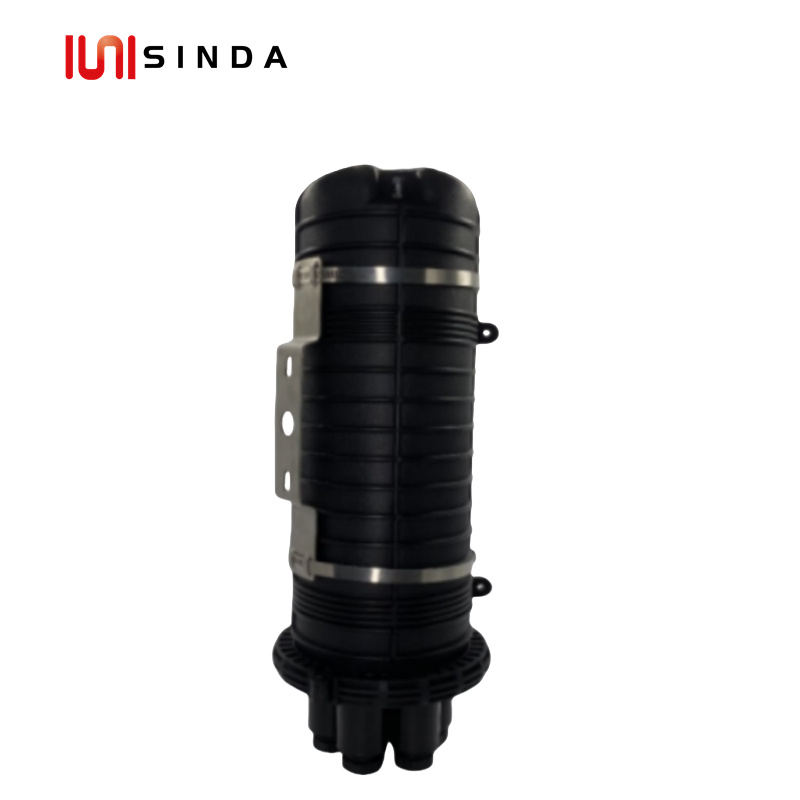

24~144c 6ports fiber Enclosure box

24~144c 6ports fiber Enclosure box

24~144c 6ports fiber Enclosure box,The Model SDGD-J106M2 FOSC is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch.

Chat Now

Description

24~144c 6ports fiber Enclosure box,

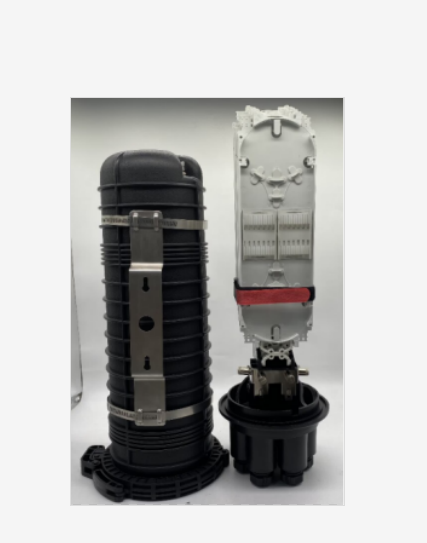

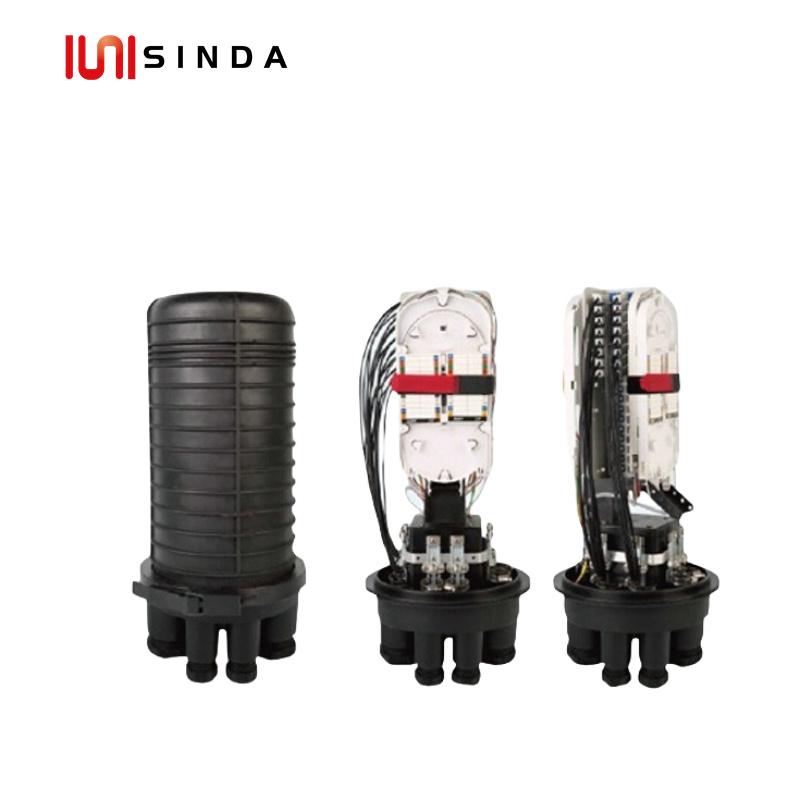

The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resistingwild environment and intensive climate changes and serious working environment.The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operatedindividually.The product can be opened again and reusedafter installation.

Specifications

Item	Fiber Optic Splice Closure 6PORTS
Dimension (mm)	550mm(440)×230mm
Material	PP+GF
Weight (Kg)	3.07kg
Diameter of	IN:8- 18 OUT: 6- 18
Cable(mm)	IN:8- 18 OUT: 6- 18
No. of Cable	2IN-4OUT
Inlet/Outlet	2IN-4OUT
Number of Fibers per	24 (single core)
Tray	24 (single core)
Max. Number of Trays	6
Max. Number of Fibers	144 (single core)

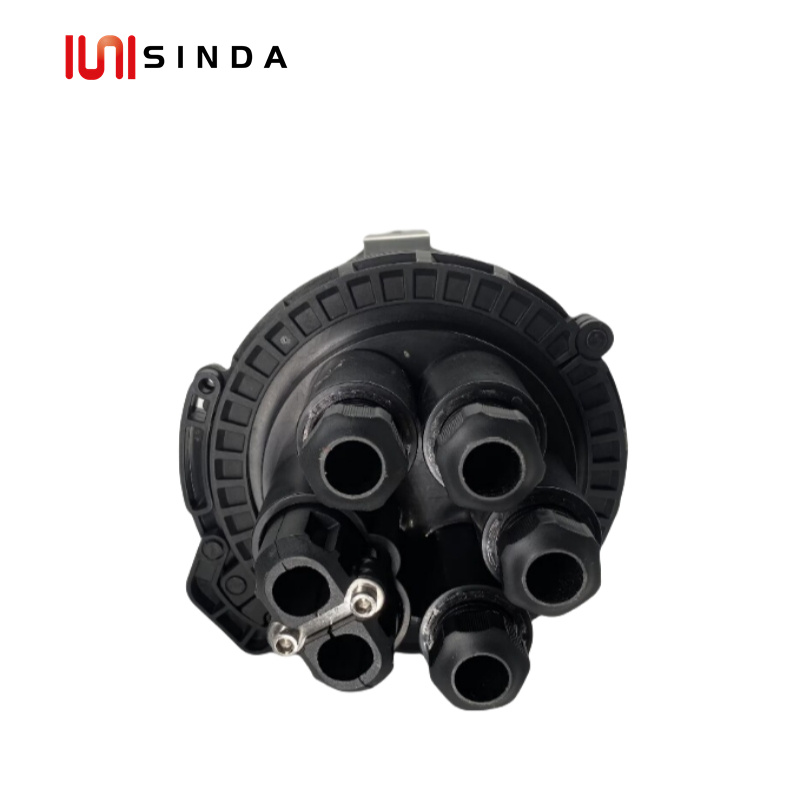

Sealing of Inlet/Outlet	Mechanical seal
ports	Mechanical seal
Sealing of Shells	Silicon rubber
Working Temperature	-40deg.C~80deg.C
Protection Grade	IP68

Packing Info

Carton packing: 6 sets/carton

Carton size: 64*49*58cm

Weight: 23.73kg/carton

Quality Certification
