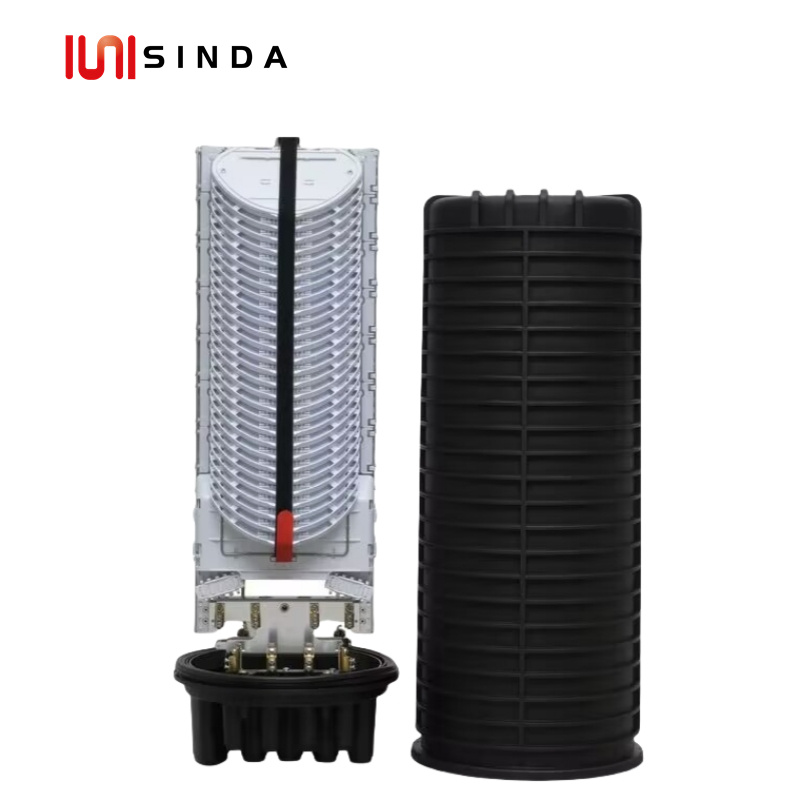

672/1008 cores Fiber Optic Splice Closure

672/1008 cores Fiber Optic Splice Closure

This closure box adopts heat-shrinkable seals only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 12mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection; IP safety rate is IP68; he sealing method adopts screw pressure; This model is suitable for different methods of branch connection, including branching of uncut cable. It could be used for aerial, pole-mounting, wall-mounting and underground application. The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

Chat Now

Description

672/1008 cores Fiber Optic Splice Closure

This closure box adopts heat-shrinkable seals only using silicone rubber sealing gasket to ensure the good

sealing performance of fiber cable with the diameter within 12mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection; IP safety rate is IP68; he sealing method adopts screw pressure; This model is suitable for different methods of branch connection, including branching of uncut cable. It could be used for aerial, pole-mounting, wall-mounting and underground application. The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

Features

1. Excessive fibers can be stored in storage baskets. Easy in fiber management.

2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.

3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

4 . The splice trays are hinged for access to any splice tray, without disturbing other trays.

5. The inner parts and fixing parts are made of stainless steel

6. With a earthing device protect it from damage by lightning

7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central

core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole,

manhole) and in many applications(tap-off, expressed, branch, and repair)

Technical Parameter

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade

2.Atmospheric Pressure: 70~ 150Kpa

3.Axial Tension: >2000N/ 1min

4. Stretching Resistance: 2500N/ 10 square centimetre( 1min)

5. Insulation resistance: >2*104MΩ

6. Voltage Strength: 15KV/ 1min, no arcover or breakdown

7. Pressure in the water: 50m/72hours

8. Splice tray with optical taking-in radius: 30mm. Low optical loss.

Application

It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large

capacity.

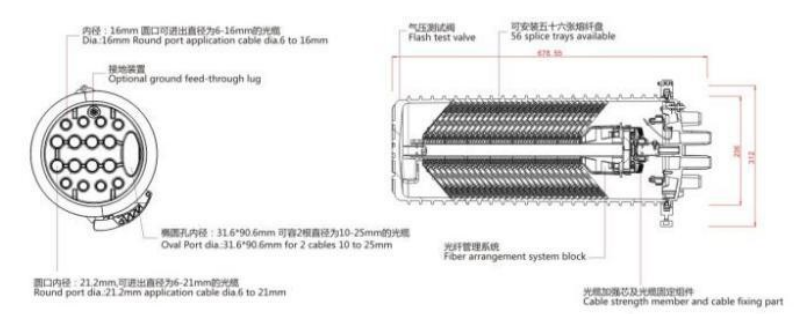

Specifications

Model	Trays	Tray capacity	Total Capacity(fibers)	Dimension(mm)	Entry Port dia.	Raw material
SDFIST-D5	56/112	12PE/9PE	672/1008	680*312	8round ports available for cable dia. < 21mm	Dome & base : Modified P.P +GF Tray: ABS
					8round ports available for cable dia. < 16mm
					1 oval port available for two pcs dia.≤ 25mm
Sealing Method			Mechanical and heat-shrinkable seals

Packing List

Packing Number(pcs)	Outer Box Size(mm)	Inner Box Size(mm)	Weight(kg)
2	800350680	740320310	4.5-5.5

Quality Certification
