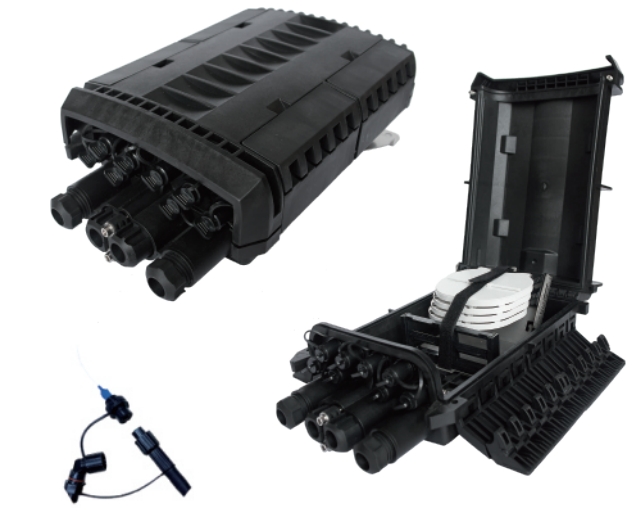

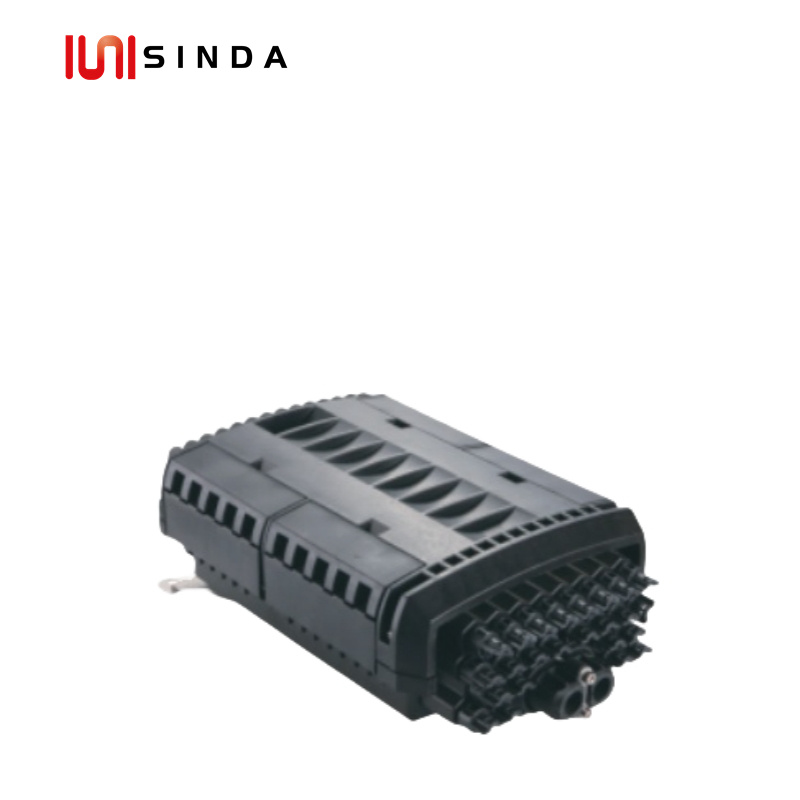

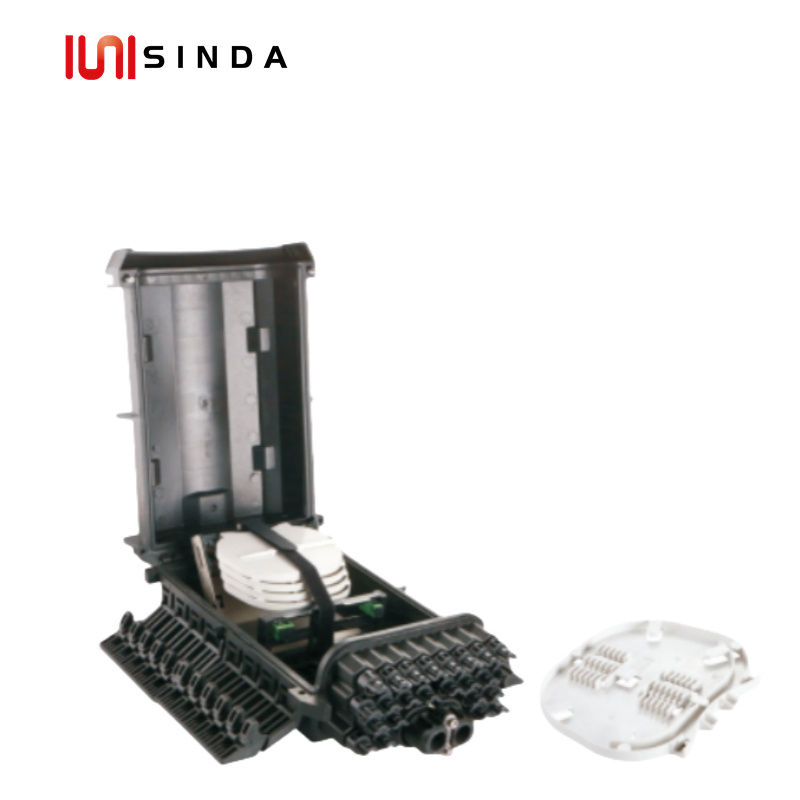

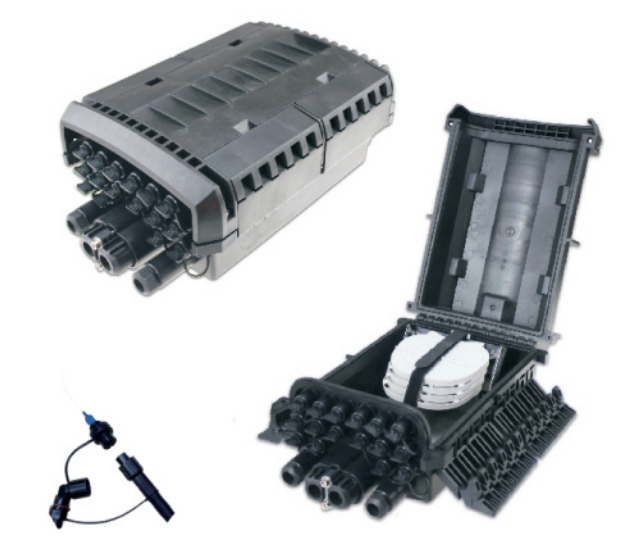

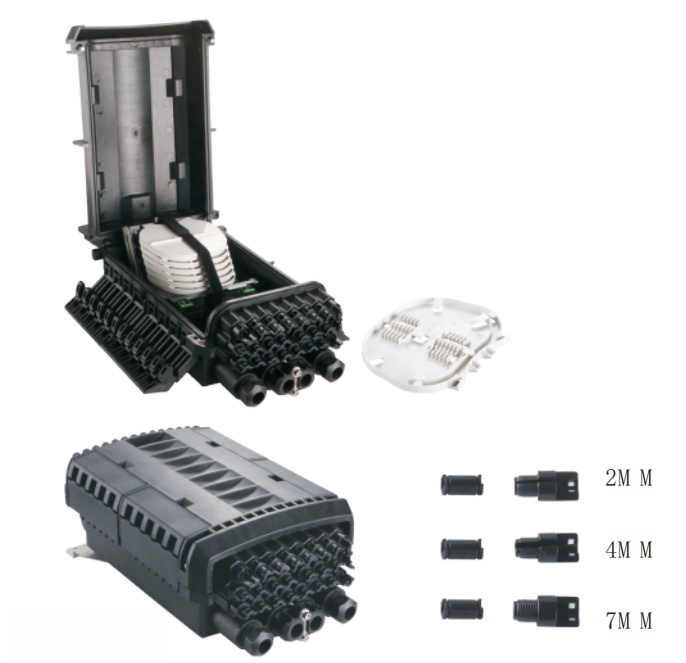

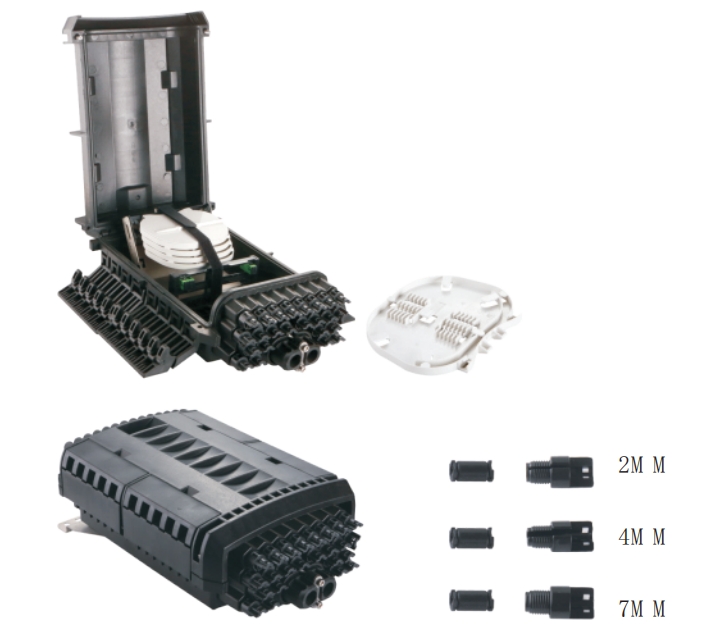

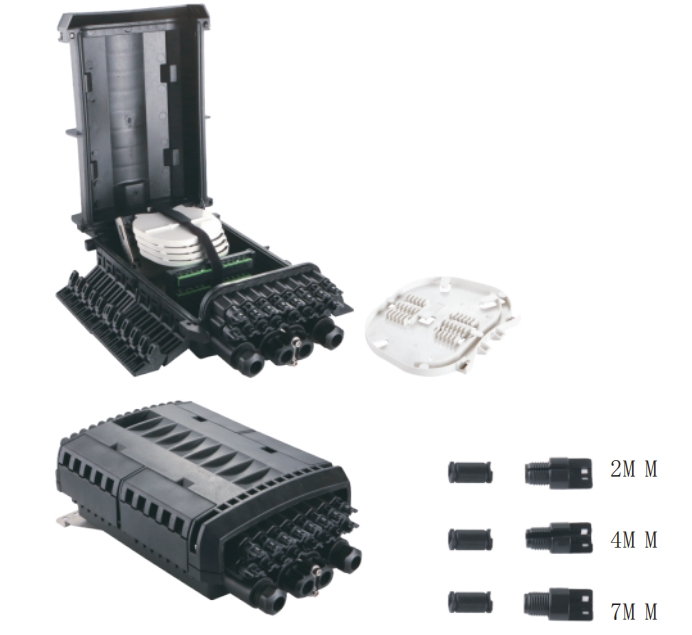

FTTH Outdoor Optical Fiber Distribution Box 8/16/24 cores

8/16/24 cores fiber distribution box used for FTTH

Fiber distribution box is Optical Network client FTTH wiring equipment, mainly for light transmission terminal into the heat sealing, spectral, wiring the output, and other functions, can be effective for terminating cable, protection and management, for the necessary equipment in the process of optical network transmission.

Features

1. The product is made of PC and glass fiber hybrid after granulation after high temperature injection molding, plastic industry"alloy steel" title, product appearance smooth lines, is to prevent water, prevent fire, to prevent the impact of threeprotective function, reach the grade IP55 protection ability.
2. Matching line equipment products for a variety of purposes, both can be used for optical fiber distribution box use can alsobe used as optical fiber branching box use, convenient and flexible to operate.
3. The clasp design, adopt unique lock box opening and closing flexible, protective performance is good.
4. The frame structure, to the port configuration and distribution of high density optical fiber devices.
5. Use a variety of installation accessories connection, can be fixed on the carrier of plane and surface.
6. Into the outlet using silica gel protective sleeve, completely avoid water and dust into the interior.
7. A variety of use, the user can configure their circuit part, realize other functions.
8. sets of fiber optic cable splicing, disk storage, wiring three functions into one.
9. Welding lifted the lid can be opened, the installed directly above, also reveal a box outside operation, simple to use.
10. The loading and unloading type adapter plate with dip Angle, can avoid activities generated when the connector plug plug the light damage to the human eye, and make the fiber has a large bending radius.
11. Suitable for ordinary optical cable, can also be applied to the welding ribbon cable.
12. With the advanced device, fiber optic cabling management ensures that the wiring of the fiber and the fiber core installation, construction and maintenance is convenient.

Technical Parameters

SDFATC-005

SDFATC-006

SDFATC-001

SDFATC-002

SDFATC-002B

Quality Certification

Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber Box is 100% optically inspected  before you receive it.

High Quality Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
