256C Closure Box

256C Closure Box

There are 4 independent cable channels at one end. Each allows for personalized input of at least two medium capacity multi fiber cables (dual inputs) and up to six small capacity optical cables (7mm).

Due to the use of clip type sealing, the sealing cap can be completely installed and removed without the need for special tools.

The sealing of the cable entering the box is carried out through a rubber joint with a pre cut inlet.

Input/output cables with a diameter of 22 to 7 millimeters. Up to 256 F.O combinations (double layer).

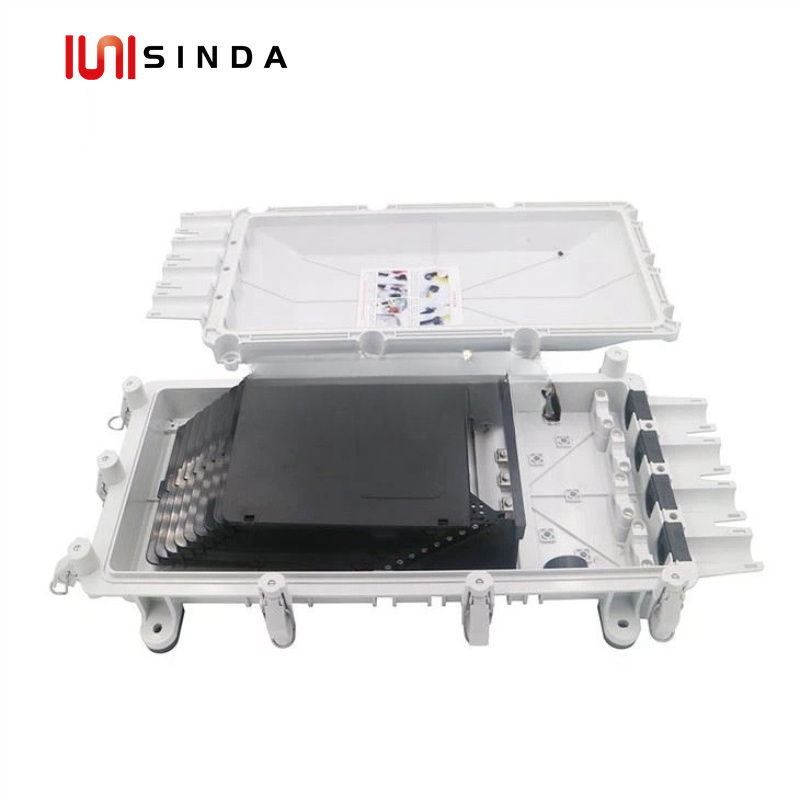

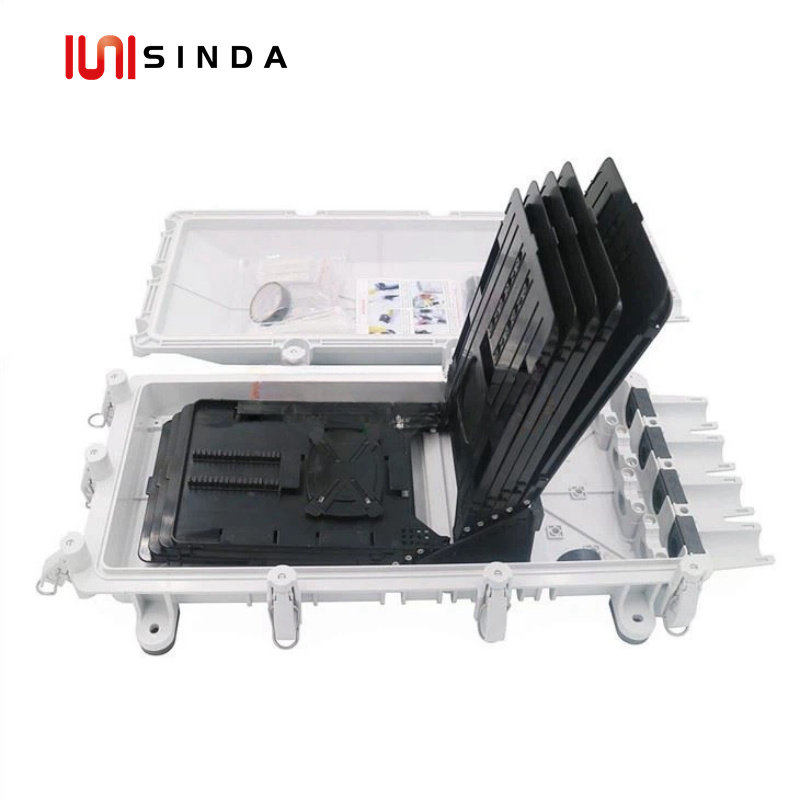

Rectangular splicing tray, wide and easy to access, with expandable labels for better storage of up to 32 F.O. (double layer) fibers. Both the support blocks and individual trays allow for 90 degree turns and are interlocked in fixed positions for easy installation.

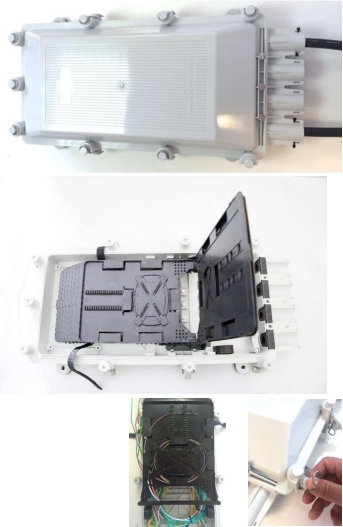

The box can be opened, closed, and operated without interrupting the operating circuit. It allows for the connection and isolation of cables without cutting all fibers, and the appropriate storage of remaining pipes and/or fibers in the cables.

Cable axial tension load>D/45 mm x 1000 N. D: Cable diameter. 1 hour cable TV. Cable displacement<3mm

This is a universal access junction box that can continuously and isolate medium capacity optical cables for deploying optical power and transmission networks.

The design of the box allows the mechanical continuity of the cable traction elements and protects the optical fibers, connectors and optical equipment by promoting the organization of the connectors and the storage of the remaining optical fibers.

This box is sealed and weather resistant, so it can be installed inside and outside buildings such as recording rooms, arches, walls, power poles, or galleries

Feature

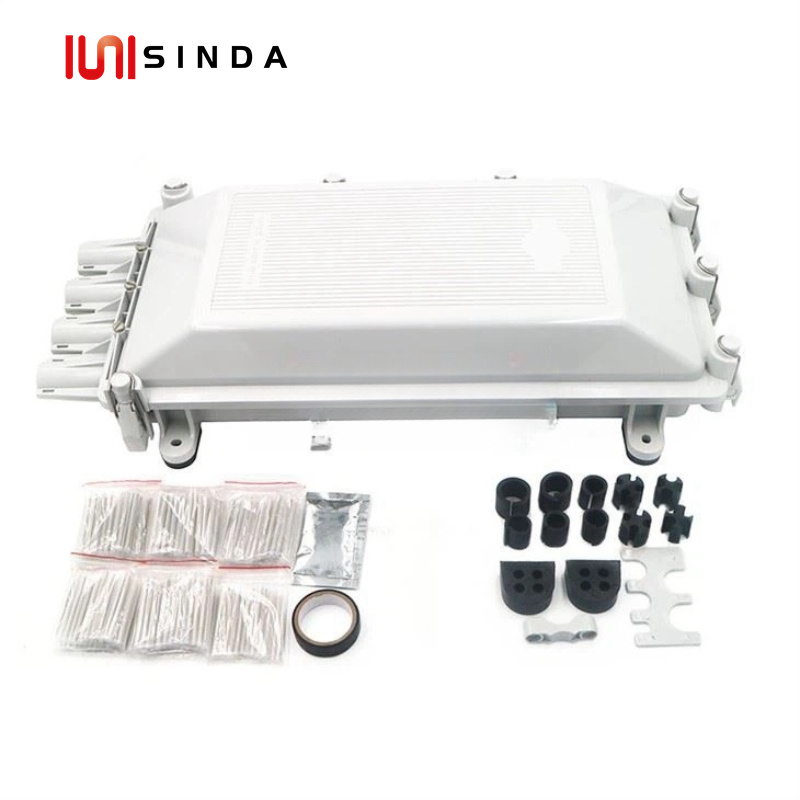

*Universal access box 64/128 F.O. (8 junction boxes with 6 pre installed cable entry louvers).

*Louvers and rubber thickeners for KT cables.

*Aligner input cable

*Installation accessories (belt, Vaseline pipe, cable diameter table).

*Installation manual
