Description

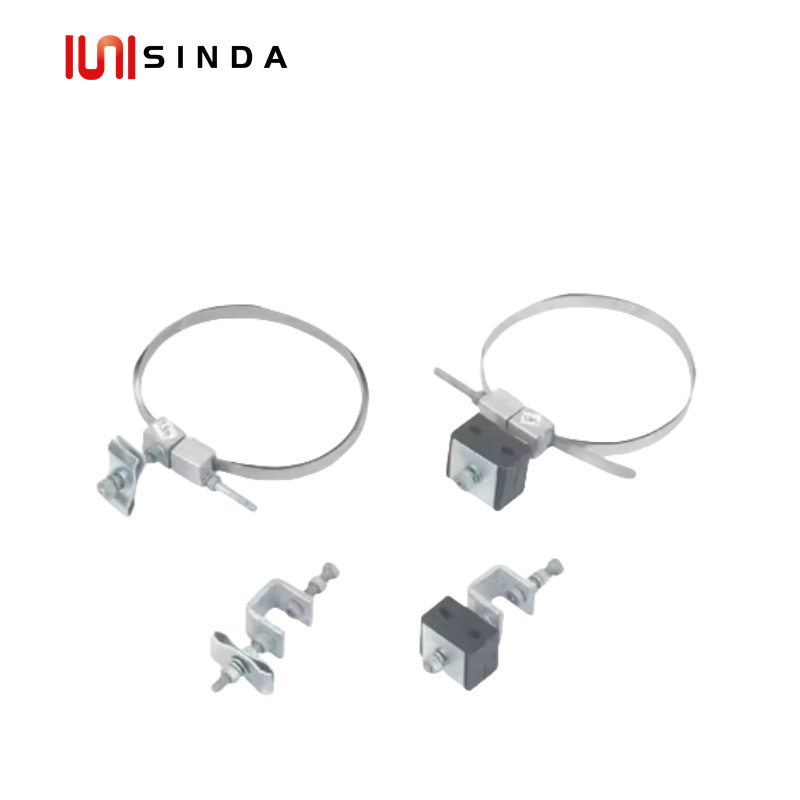

Adjustable Stainless Steel Strapping Clamp for Power Accessories Steel Clip Banding with Down Lead for ADSS and OPGW Pole

Down lead clamp is used for fixation of OPGW and ADSS on the power or tower. It is applied to different cable diameters. Its installation is reliable, convenient and fast. It is divided into two basic types: pole used and towel. Each basic type is divided into rubber and metal type, rubber type for ADSS, metal type for OPGW.

Specifications

Pipe clamps type	Down Lead Clamp
Material	Steel,aluminum,hot dip galvanized
Application	General Industry
Customized support	OEM, ODM
Product name	Down Lead Clamp
Color	Silver
Surface treatment	galvanized
Package	Carton,pallet

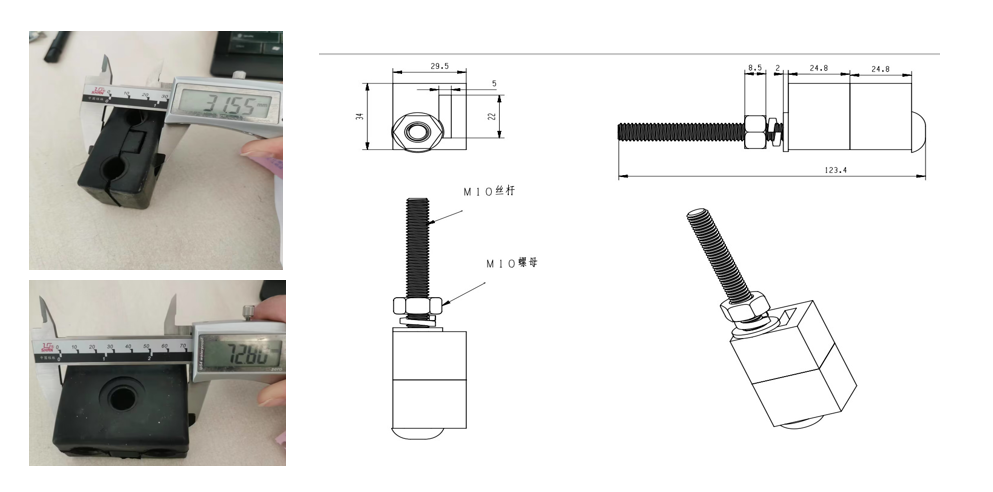

Steel strip size	1.2M (Length), 19mm (Width)
Steel strip material	201 Steel, thickness 0.5mm
Applicable cable diameter	9~20mm

ADSS rubber down load clamp

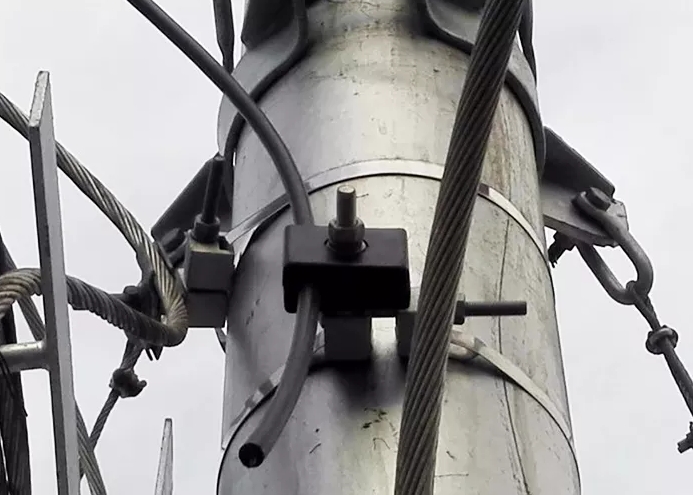

Installation

Quality Certification

Hot Tags : Down lead clamp with straps Strapping clamp with down lead for ADSS Down lead Strapping clamp for power accessories Strapping clamp Down lead clamp
