ADSS Cable J Hook Suspension Clamp

ADSS Cable J Hook Suspension Clamp

ADSS Cable J Hook Suspension Clamp,ADSS Suspension Clamp Overhead support clamp J Hook clamp, Suspension clamp for adss cable J hook other calls adss cable supporting clamp designed to hold and suspend all dielectric self-supporting cable in outdoor ftth line constructions.

Chat Now

Description

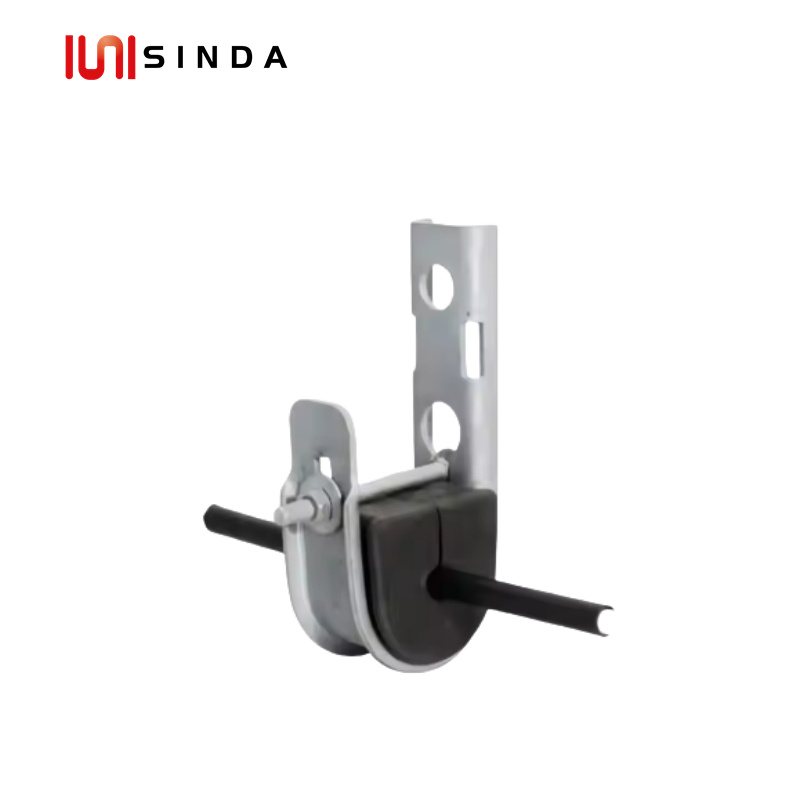

ADSS Cable J Hook Suspension Clamp

ADSS Cable J Hook Suspension Clamps is designed to provide a suspension for aerial ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.

The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced form stainless steel materials according to you request.

Main Features

1.Easy operation, free tools
2.High mechanical strength,up to 4KN
3.Stainless steel J-shape hook and UV proof insert
4.Can be installed on poles with stainless steel strap or pole bolt
5.Excellent environmental stability

This suspension clamp is consists of plastic insert, it's made of UV resistant thermoplastic by plastic injection technology. The metal hook of this clamp is made of galvanized steel which is corrosion resistant and with high mechanical strength.It can be installed on wooden,concrete pole by stainless steel straps, pole bolt or hooks.
All four assemblies passed a series of standard related type tests which are available in our internal laboratory, suchas+70°C~-40RC Temperature and humidity cycling test, Tensile strength test, Aging test,Corrosion resistance test etc. welcome to contact us for this adss suspension clamp price.

Specifications

Item No.	Cable size, mm	MBL,KN	Weight, KG	Material
SDPT 5-8	5-8	4	0.19	Galvanized steel UV resistant plastic
SDPT 8-12	8-12	4	0.19
SDPT 10-15	10-15	4	0.19
SDPT 15-20	15-20	4	0.19

Quality Certification
