ADSS Optic fiber cable universal pole bracket UPB bracket aluminum alloy installation hardware

ADSS Optic fiber cable universal pole bracket UPB bracket aluminum alloy installation hardware

ADSS Optic fiber cable universal pole bracket UPB bracket aluminum alloy installation hardware,

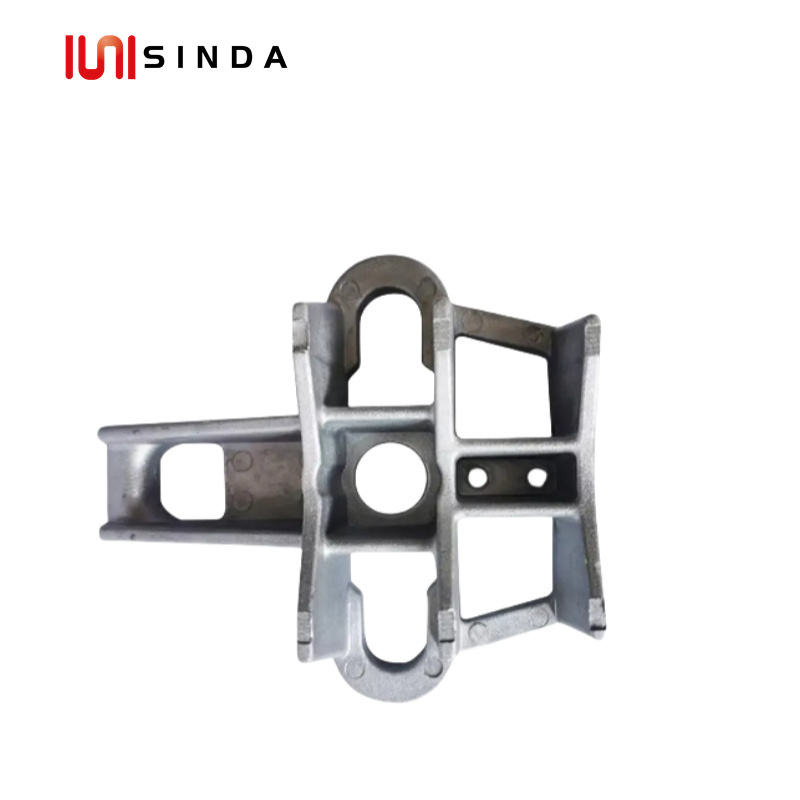

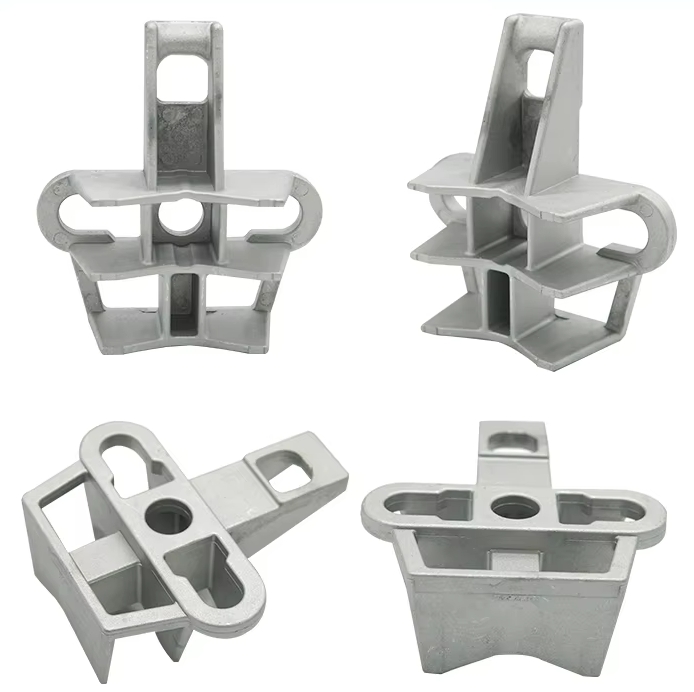

The UPB bracket is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.Installation

Chat Now

Description

ADSS Optic fiber cable universal pole bracket UPB bracket aluminum alloy installation hardware

Ø With steel bands.

The UPB bracket can be installed on any type of pole – drilled or undrilled – with two 20x0.7 mm stainless steel bands plus two buckles . Usually allow two bands of one meter each per bracket.

Ø With bolts

If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness).

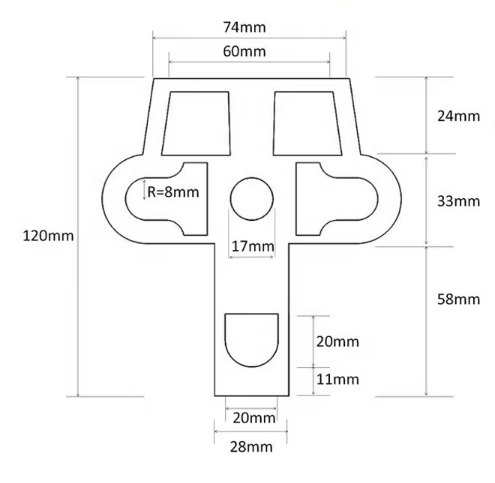

Specifications

MODEL	Size	Material	Band Size	MBL	Weight
SDPM-UPB	5/14 and 5/15mm	Galvanized steel	14/16 /20mm	1.5kN	209g

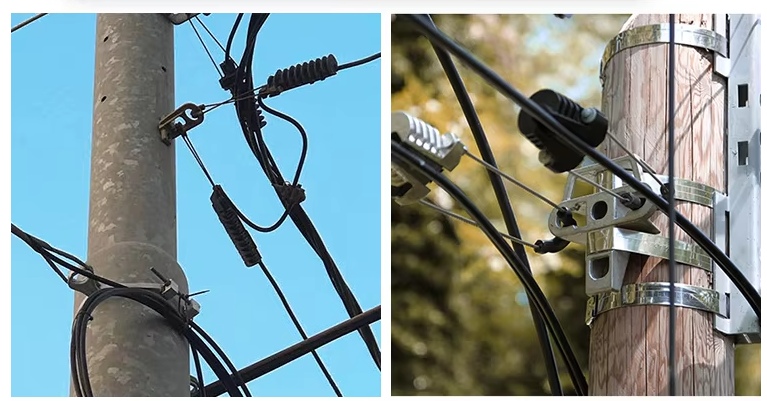

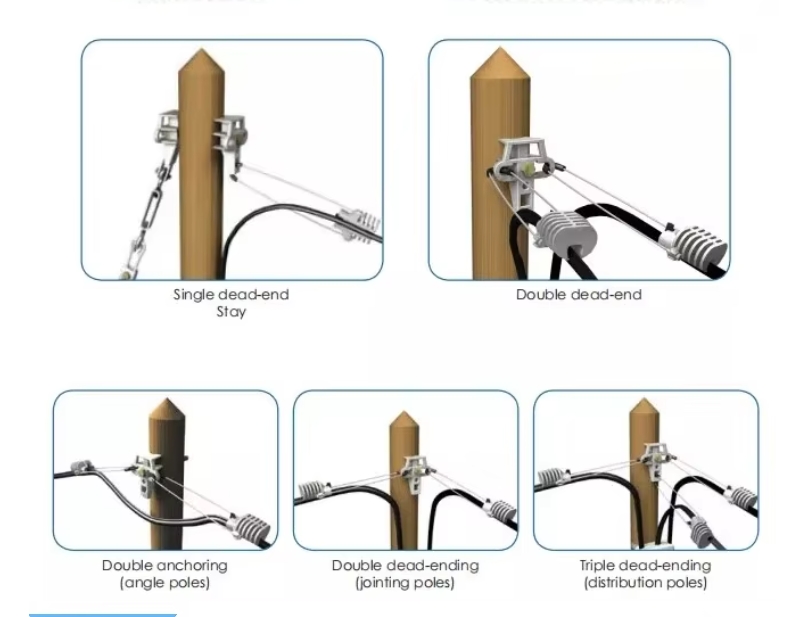

Installation

Quality Certification
