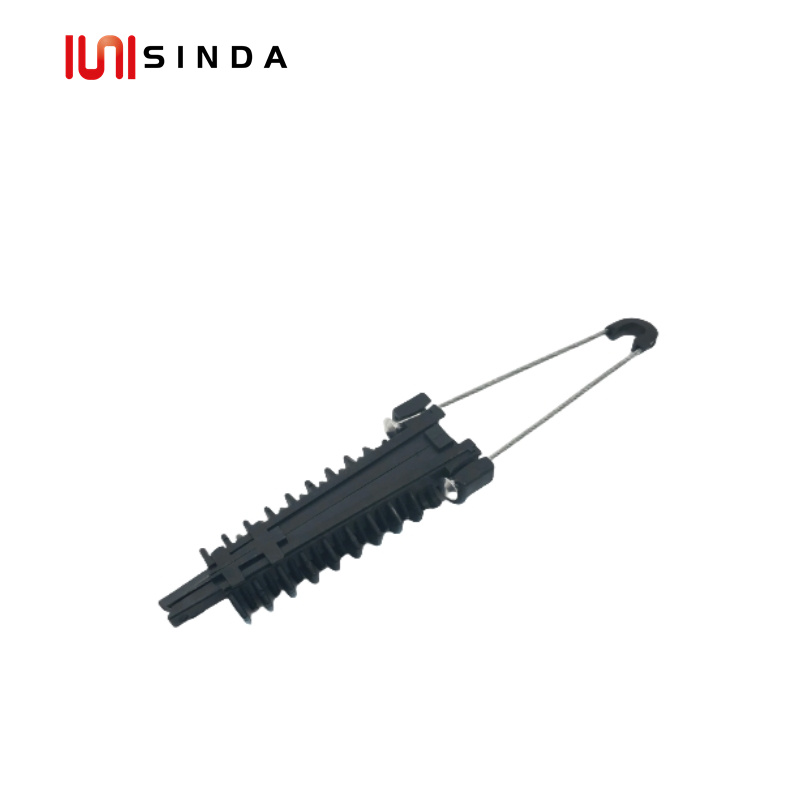

Wedge type plastic anchor clamp dead end clamp PA2000 for ADSS cable 8-14mm

Wedge type plastic anchor clamp dead end clamp PA2000 for ADSS cable 8-14mm

Wedge type plastic anchor clamp dead end clamp PA2000 for ADSS cable 8-14mm,PA2000 anchor clamp/tension clamp is used for ADSS fiber optic cable fixing on pole(span meter: 100m),it has the characteristic of Automatic conical tightening and Opening bail which is easy to be installed.

Chat Now

Description

Wedge type plastic anchor clamp dead end clamp

PA2000 for ADSS cable 8-14mm,PA2000 anchor clamp/tension clamp is used for ADSS fiber optic cable fixing on pole(span meter: 100m),it has the characteristic of Automatic conical tightening and Opening bail which is easy to be installed.

Material

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

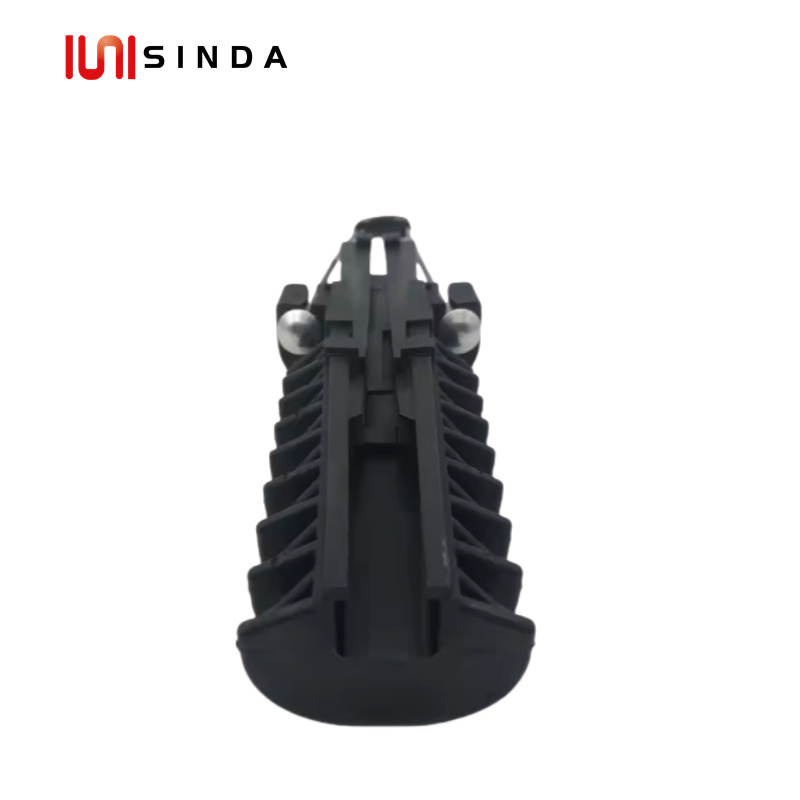

A pair of wedges grips the cable automatically within the conical body.

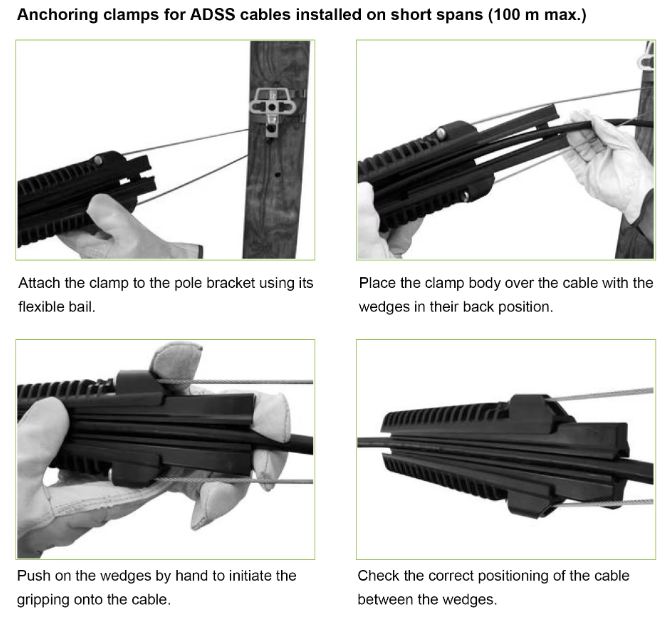

The installation does not require any specific tools and the operating time is drastically reduced.

Specifications

Item	ADSS anchor clamp
Type	PA2000
Applicable cable dia.	8-14mm
Breaking load	8kn
Material	Nylon + fiber glass
Span Meter	100m
Application	for fix ADSS cable or other aerial cable on pole

Application

Quality Certification
