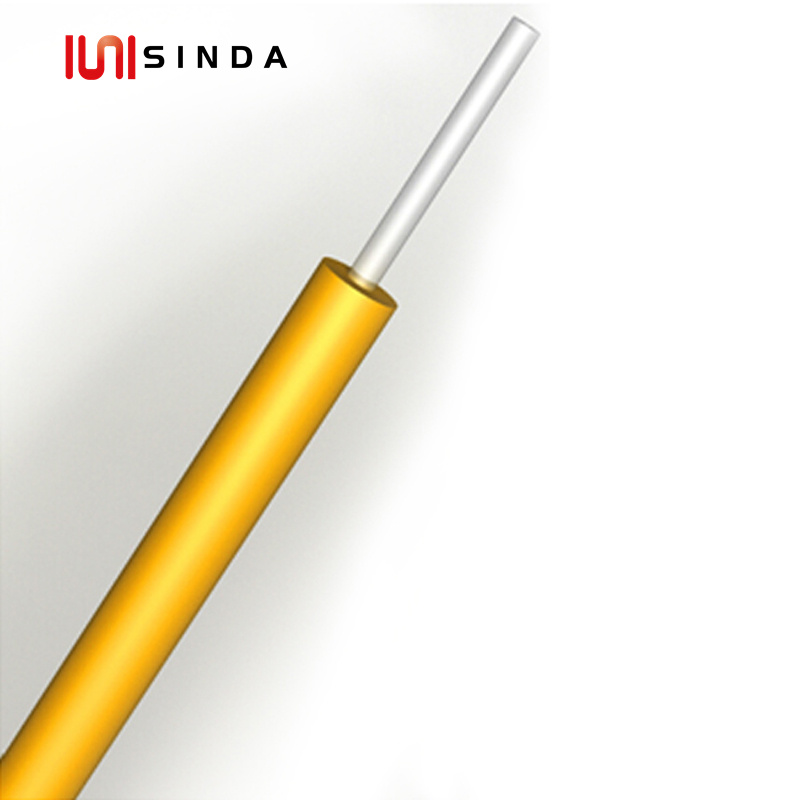

0.6/0.9mm LSZH/ PVC/ NylonTight Buffer Fiber (GJFJV)

0.6/0.9mm LSZH/ PVC/ NylonTight Buffer Fiber (GJFJV)

0.6/0.9mm LSZH/ PVC/ NylonTight Buffer Fiber (GJFJV),Tight-buffered fiber is the basic element of various indoor cables. Because of different buffer materials, the relevant indoor cables made out of tight-buffered fibers can meet different mechanical and environmental requirements, for example, large tensile (crush), high or low temperature, frequent bends, low smoke, no corrosive, environmental, field use, distribution cabinet (frame) and other generic use, etc.

Chat Now

Description

0.6/0.9mm LSZH/ PVC/ NylonTight Buffer Fiber (GJFJV),

Tight-buffered fiber is the basic element of various indoor cables. Because of different buffer materials, the relevant indoor cables made out of tight-buffered fibers can meet different mechanical and environmental requirements, for example, large tensile (crush), high or low temperature, frequent bends, low smoke, no corrosive, environmental, field use, distribution cabinet (frame) and other generic use, etc.

Features

Soft. Easy to strip
High quality tight buffered or Loose tube.
Excellent mechanical and environmental performance.
Small cable volume. Ling weight.

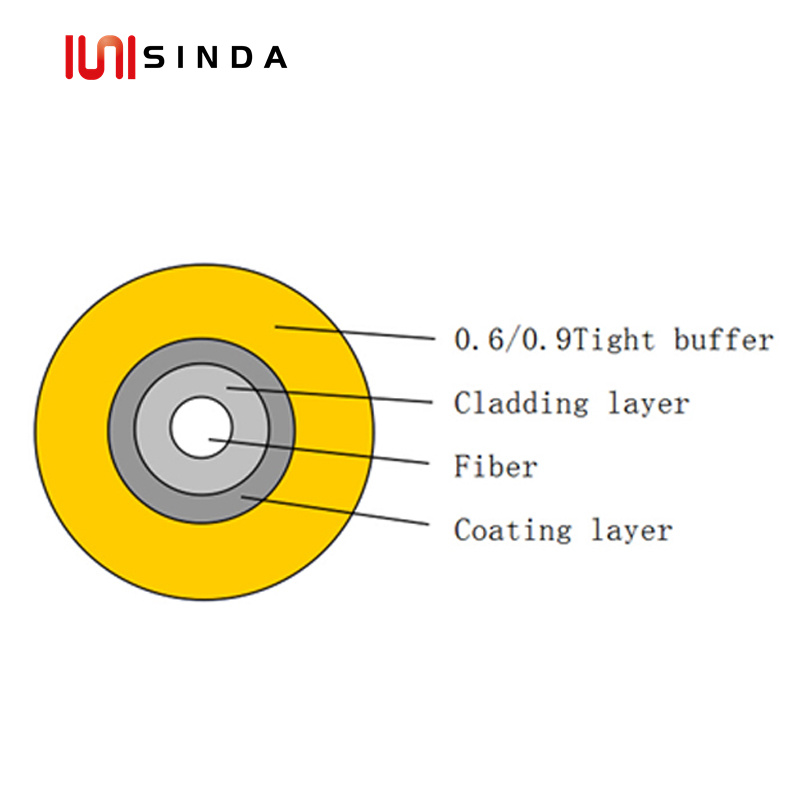

Cable construction details

Technical Parameters:
Out Diameter(MM)	0.6			Weight(KG)	0.7
	0.9				0.9
Storage temperature（℃）			40
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D

Min allowable Tensile Strength(N)		Long term	50

Min allowable Tensile Strength(N)		Short term	100

Crush Load (N/100mm)		Long term	80
Crush Load (N/100mm)		short term	100

Fiber characteristic

Fiber style		Unit	SM	SM	MM	MM	MM
			G652	G652D	50/125	62.5/125	OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
			0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302,	----	----	≧ 1295,
				≤1322			≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*km)	≤0.12	≤0.08	----	----	----

Fibre cutoff wavelength λc		nm	≧ 1180,	≧1180,	----	----	----
			≤1330	≤1330
Cable sutoff		nm	≤1260	≤1260	----	----	----
wavelength λcc
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical			----	----	0.200+/	0.275+/-0.	0.200+/-0
Aperture(NA)					-0.015	15	0.015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08

Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0

Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

Applications

Components for various indoor cables;
Suitable for patch cords and pigtails;
Suitable for communication equipment served.

Quality Certification
