144F Single Mode Mini bare fiber breakout fiber optic cable

144F Single Mode Mini bare fiber breakout fiber optic cable

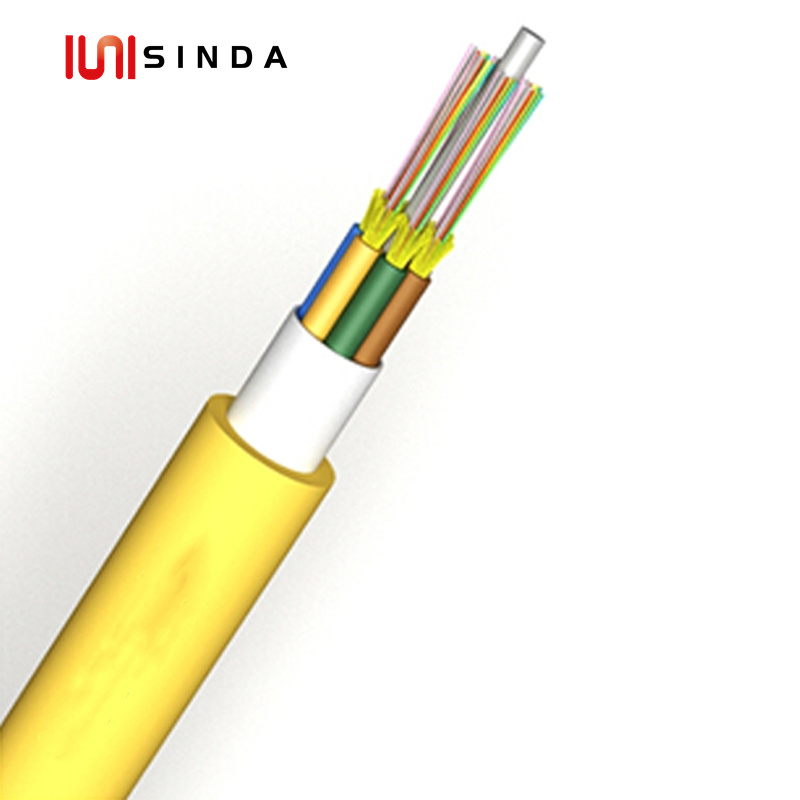

144F Single Mode Mini bare fiber breakout fiber optic cable, Multi Purpose Breakout cable uses bare fiber as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a LSZH (Low Smoke, Zero halogen, Flame-retardant) jacket.

Chat Now

Description

144F Single Mode Mini bare fiber breakout fiber optic cable,

Multi Purpose Breakout cable uses bare fiber as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a LSZH (Low Smoke, Zero halogen, Flame-retardant) jacket.

Features

Stranded non-metallic strength member structure ensure the cable endure larger tensile strength
The outer jacket material have many advantages such as anti-corrosion, anti-water, anti-ultra violet radiation, flame-retardant and harmless to environment etc.
All dielectric structure protect it from electromagnetic influence.
Scientific design with serious processing art.

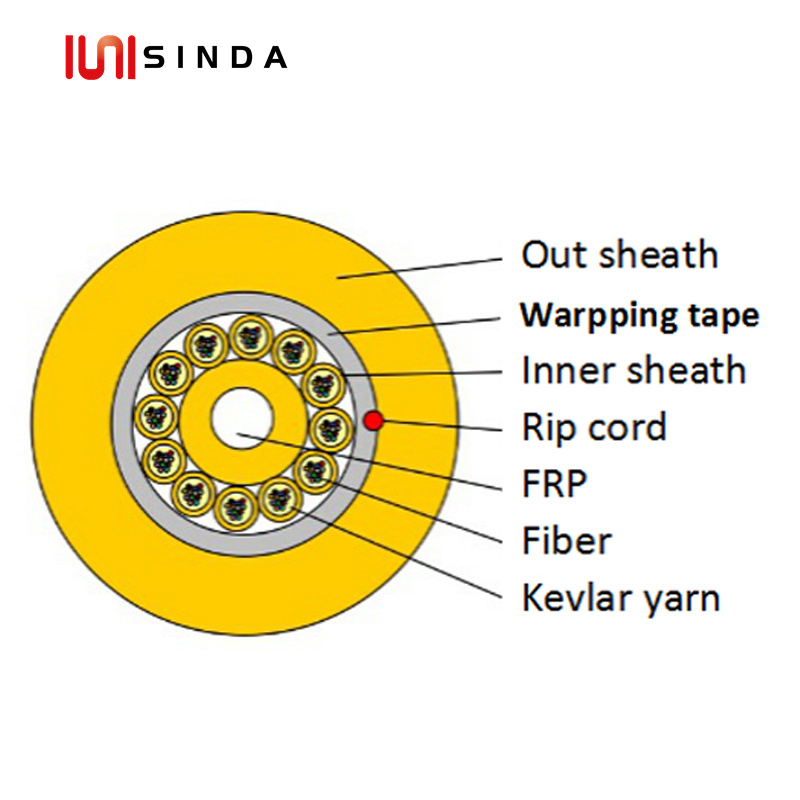

Cable construction details

No.of fiber	144F
SM fiber	Fiber type	SM G652D	Concentricity error	≤0.5um
	MFD	8.6～9.8um	Cladding non-circularity	≤0.7%
	Cladding diameter	124.8±0.7um	Fiber color	standard spectrum
Inner sheath	Material	Bare fibe	Colore	standard spectrum
		LSZH	Diameter	2.4±0.05mm
		Kevlar yarn	Type	1000D*4/subunit
Stranding	Wrapping tape		Type	0.18*24mm
	FRP		Diameter	2.0mm
	LSZH layer		Thickness	2.5mm
Out sheath	LSZH		Diameter	15.0±0.5mm
			Thickness	1.8±0.1mm
	Ripcord		Type	111021

Cable mechanical and environment characteristics

Tensile strength	Long term（N）	400N
	Short term（N）	1320N
Crush load	Long term（N）	300N/100mm
	Short term（N）	1000N/100mm
Bending radius	Dynamic	20D
	Static	10D
Temperature	-20℃～+70℃

Fiber characteristics

Fiber style	Unit	SM G652D	MM 50/125	MM 62.5/125
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Cladding diameter	um	125±1	125±1	125±1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±7	242±7	242±7

Applications

Indoor any purpose cable distribution, Backbone distribution cable in a building.
