Single Armored Fiber optical Cable for Indoor（GJFJV）

Single Armored Fiber optical Cable for Indoor（GJFJV）

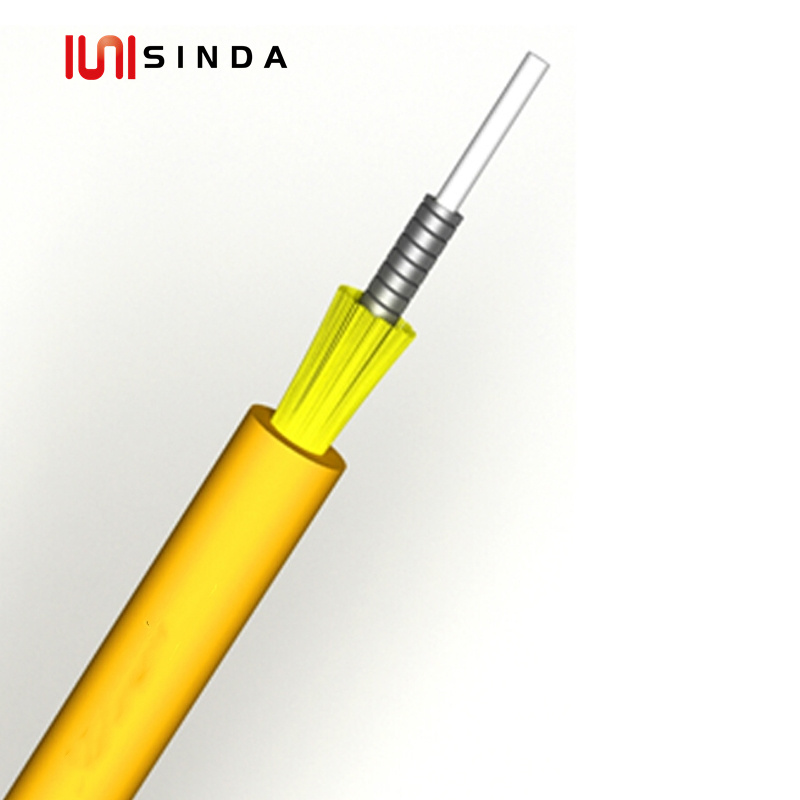

Single Armored Fiber optical Cable for Indoor（GJFJV）,Indoor cable.1 fiber, Φ900μm or Φ600μm tight buffer , spiral steel armor, layer of Kevlar yarn, LSZH/ PVC/ OFNR Jacket.

Chat Now

Description

Single Armored Fiber optical Cable for Indoor（GJFJV）,

Indoor cable.1 fiber, Φ900μm or Φ600μm tight buffer , spiral steel armor, layer of Kevlar yarn, LSZH/ PVC/ OFNR Jacket.

Features

Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevant standards;
The mechanical characteristics meet the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

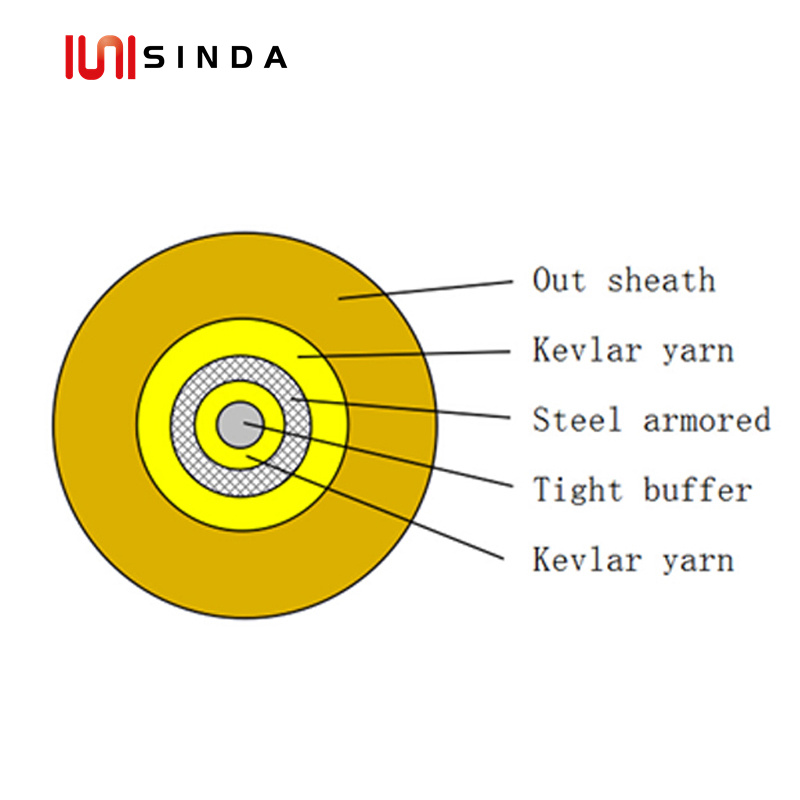

Cable construction details

Technical Parameters:
Out Diameter(MM)	2			Weight(KG)	15
	2.8				18
	3				18
Storage temperature（℃）			40
Min Bending Radius(mm)		Long term	10D
Min Bending		Short term	20D
Radius(mm)
Min allowable		Long term	300
Tensile Strength(N)
Min allowable		Short term	1000
Tensile Strength(N)
Crush Load (N/100mm)		Long term	500
Crush Load (N/100mm)		short term	1000

Fiber characteristic

Fiber style		Unit	SM	SM	MM	MM	MM
			G652	G652D	50/125	62.5/125	OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
			0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302,	----	----	≧ 1295,
				≤1322			≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k	≤0.12	≤0.08	----	----	----
		m)
Fibre cutoff wavelength λc		nm	≧ 1180,	≧1180,	----	----	----
			≤1330	≤1330
Cable sutoff		nm	≤1260	≤1260	----	----	----
wavelength λcc
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical			----	----	0.200+/	0.275+/-0.	0.200+/-0
Aperture(NA)					-0.015	15	0.015
Step(mean of bidirectional		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
measurement)
Irregularities over fiber		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
length and point
Dicontinuity
Difference backscatter		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
coefficient
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
concentrically error
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

Applications

Used in pigtails and patch cords;
Used in optical connections in optical communication equipment rooms and optical distribution frames;
Used in optical connections in optical apparatus and equipments.

Quality Certification
