2.0mm / 3.0mm Duplex Indoor Fiber Optic Cable GJFJV

2.0mm / 3.0mm Duplex Indoor Fiber Optic Cable GJFJV

2.0mm / 3.0mm Duplex Indoor Fiber Optic Cable GJFJV, Duplex zipcord cable use 900μm tight buffer fiber as optical communication medium. The tight buffer fiber wrapped, and aramid yarn as strength member units, then the cable is completed with a layer of LSZH jacket as out sheath .

Chat Now

Description

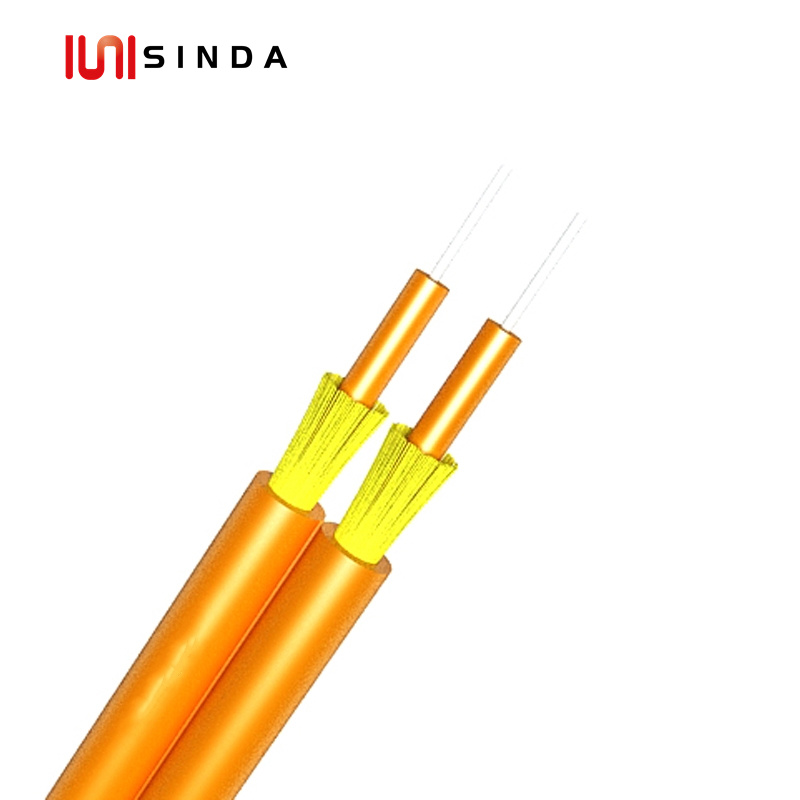

2.0mm / 3.0mm Duplex Indoor Fiber Optic Cable GJFJV,

Duplex zipcord cable use 900μm tight buffer fiber as optical communication medium. The tight buffer fiber wrapped, and aramid yarn as strength member units, then the cable is completed with a layer of LSZH jacket as out sheath .

Features

Hight strength kevlar yarn member.
High quality tight buffered or loose tube.
Soft and easy to strip.
Round construction.

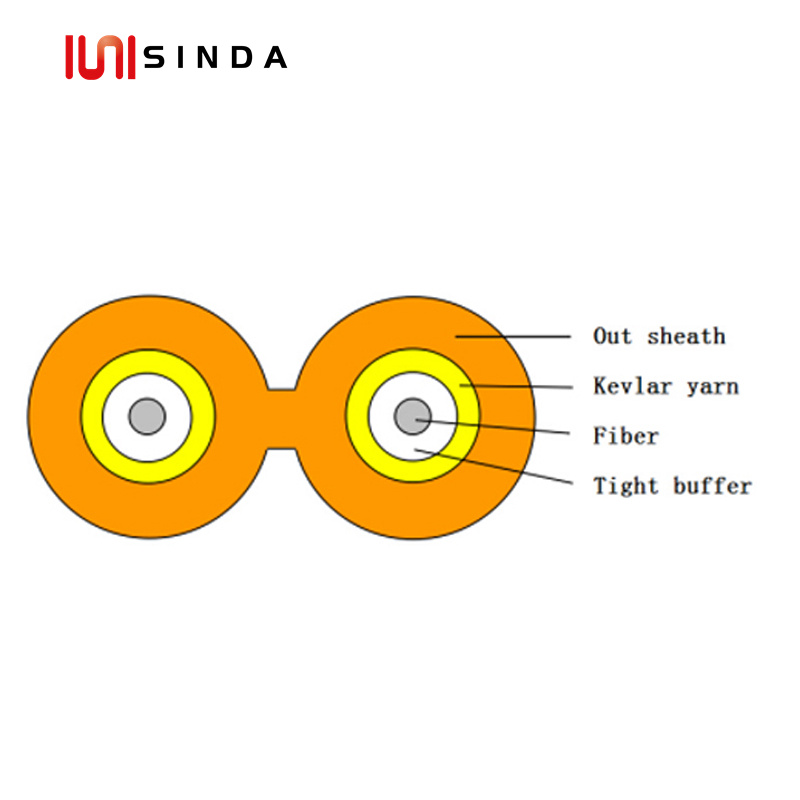

Cable construction details

No. of fiber	2F
SM fiber	Fiber type	Single mode	Concentricity error	≤0.5um
	MFD	8.6～9.8um	Cladding non-circularity	≤0.7%
	Cladding diameter	125±1um	Fiber color	white and blue
Tight buffer	Material	PVC	Color	white
	Diameter	0.9±0.05mm	Thickness	0.32±0.05mm
Yarn	Material	Kevlar yarn	Color	yellow
	Type	1000D	Qty	3 strands/unit
				4 strands/unit
Out sheath	Material	LSZH	Color	yellow
	Diameter	1.9±0.05mmx3.9±0.1 mm	Thickness	0.35±0.05mm
		2.9±0.05mmx5.9±0.1 mm		0.45±0.05mm
Gross weight	8.5±2kg/km (2.0mm)
	15±3kg/km (3.0mm)

Cable mechanical and environment characteristics

Tensile strength	Long term（N）	90 (2.0mm)	120 (3.0mm)
	Short term（N）	150 (2.0mm)	225 (3.0mm)
Crush load	Long term（N）	100N/100mm
	Short term（N）	500N/100mm
Bending radius	Dynamic	20D
	Static	10D
Temperature	-20℃～70℃

Applications

Adopted to indoor distribution..
As pigtail of communication equipment.
Suitable for communication equipment served.
Can be installed conveniently.

Quality Certification
