Distribution Tight Buffer Optical Cable（GJFJV）

Distribution Tight Buffer Optical Cable（GJFJV）

Distribution Tight Buffer Optical Cable（GJFJV）,Distribution Tight Buffer Optical Cable use 2~24 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.
The tight buffer fiber wrapped with a layer of aramid yarn as strength member ,then completed with a layer of PVC or LSZH material as out jacket.

Chat Now

Description

Distribution Tight Buffer Optical Cable（GJFJV）,

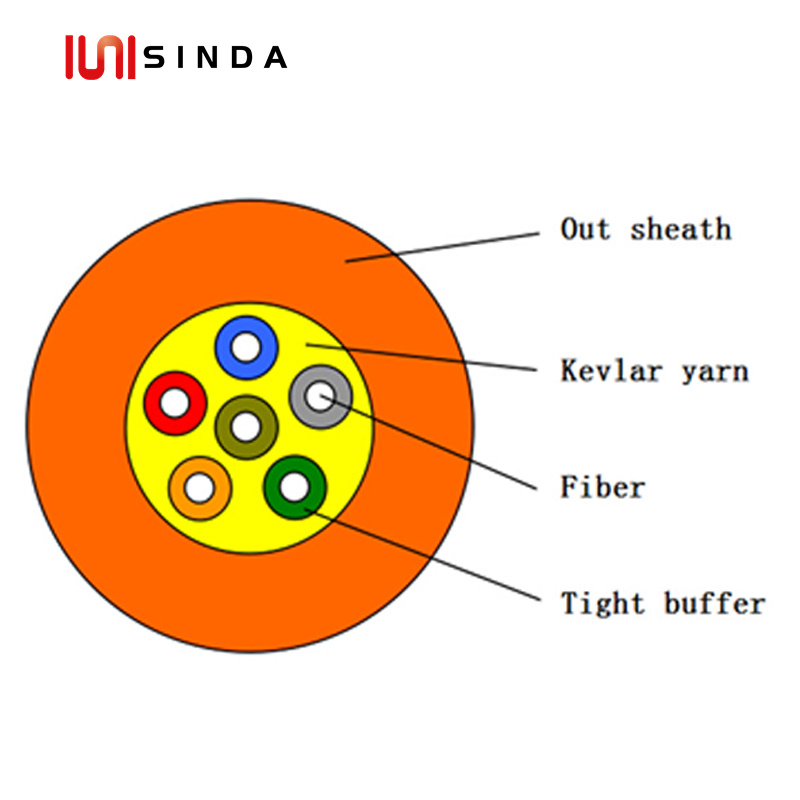

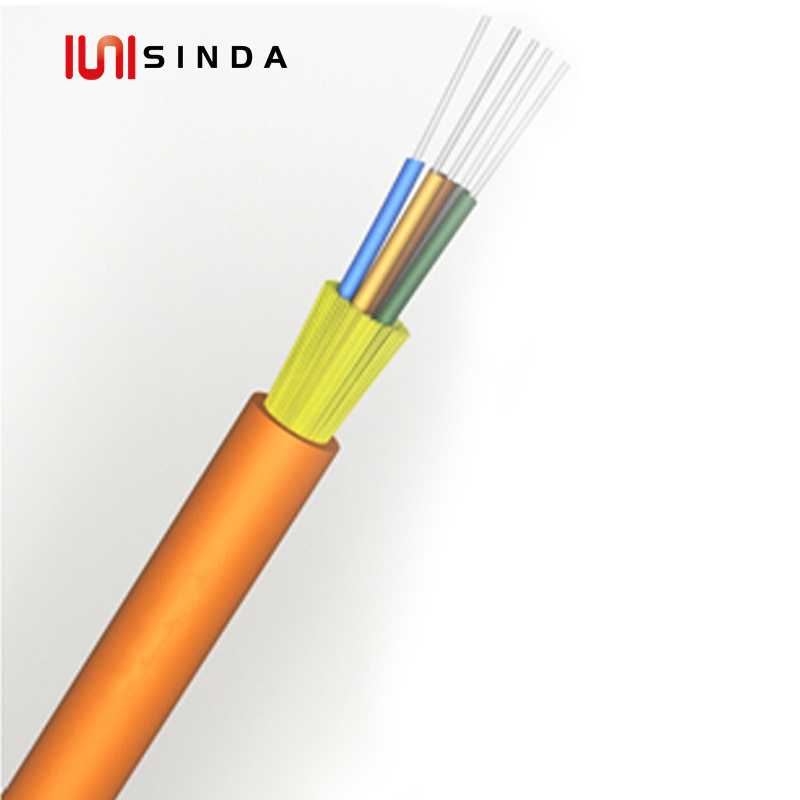

Distribution Tight Buffer Optical Cable use 2~24 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.
The tight buffer fiber wrapped with a layer of aramid yarn as strength member ,then completed with a layer of PVC or LSZH material as out jacket.

Features

Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards
The mechanical characteristics of jacked meet the requirements of relevant standards
Soft,flexible,easy to lay and splice,and with big capacity data transmission
Meet various requirements of market and clients.

Cable Mechanical characteristic

Items		Cable diameter	Weight
2 cores		4.0mm	22.00kg/km
4 cores		4.0mm	22.00kg/km
6 cores		4.0mm	23.00kg/km
8 cores		5.0mm	27.00kg/km
10 cores		5.5mm	30.00kg/km
12 cores		6.0mm	35.00kg/km
Storage temperature（℃）		40
Min Bending Radius(mm)	Long term	10D
Min Bending	Short term	20D
Radius(mm)
Min allowable	Long term	200
Tensile Strength(N)
Min allowable	Short term	600
Tensile Strength(N)
Crush Load (N/100mm)	Long term	200
Crush Load (N/100mm)	short term	1000

Fiber characteristic

Fiber style		Unit	SM	SM	MM	MM	MM
			G652	G652D	50/125	62.5/125	OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
			0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302,	----	----	≧ 1295,
				≤1322			≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----

Fibre cutoff wavelength λc		nm	≧ 1180,	≧1180,	----	----	----
			≤1330	≤1330
Cable sutoff		nm	≤1260	≤1260	----	----	----
wavelength λcc
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical			----	----	0.200+/	0.275+/-0.	0.200+/-0
Aperture(NA)					-0.015	15	0.015
Step(mean of bidirectional		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
measurement)
Irregularities over fiber		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
length and point
Dicontinuity
Difference backscatter		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
coefficient
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
concentrically error
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

Applications

Used in pigtails and patch cords
Used as interconnect lines of equipments,and used in optical connections in optical
communication rooms and optical distribution frames
Used in indoor cabling,especially used as distribution cable

Quality Certification
