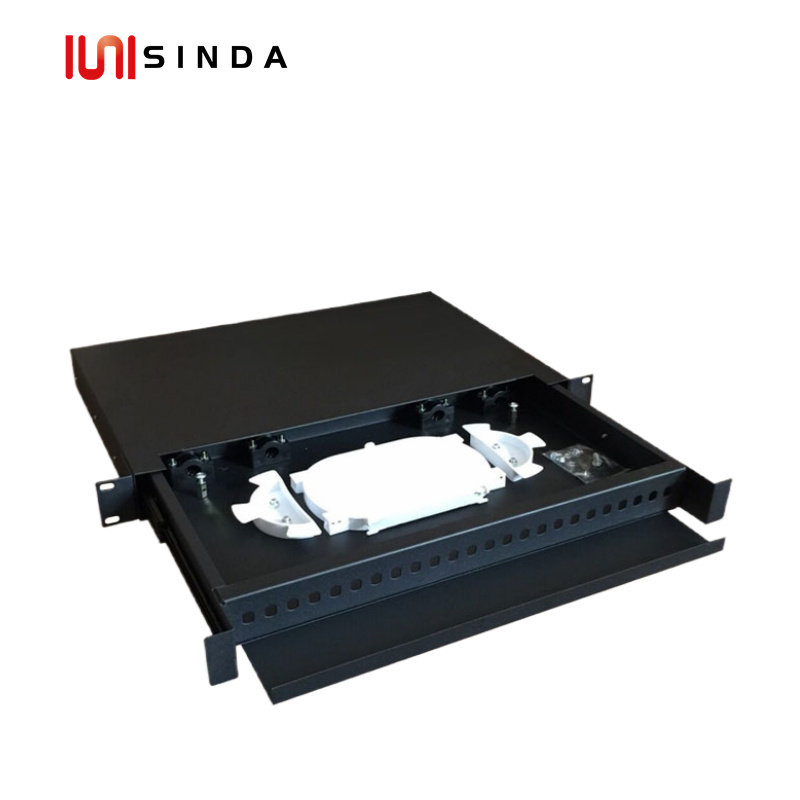

19‘ 1~4RU Slide Rail Rack mount patch panel

19‘ 1~4RU Slide Rail Rack mount patch panel

SINDA provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST/ MPO/E2000 adapter, the box can be installed on the indoor wall and terrace.

Features and Advantages

• Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
• The box has a pothook, which is convenient to install and dismantle
• The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
• The box is of unique structure, reasonable layout, and has adequate room for operation
• Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
• The indoor type is of excellent seal performance, which could prevent water from entering effectively
• Can be installed with SC/LC/FC/STadapter
• Up to 192cores splice capacity MAX in 2U patch panel
• Rack Mount andSliding drawer design both available

Specifications

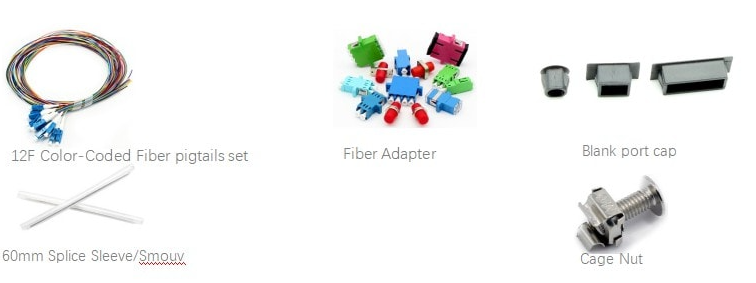

Full loaded Accessories

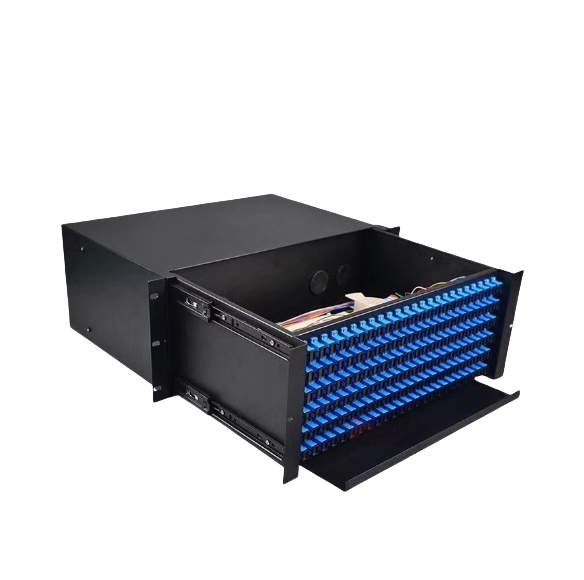

4U

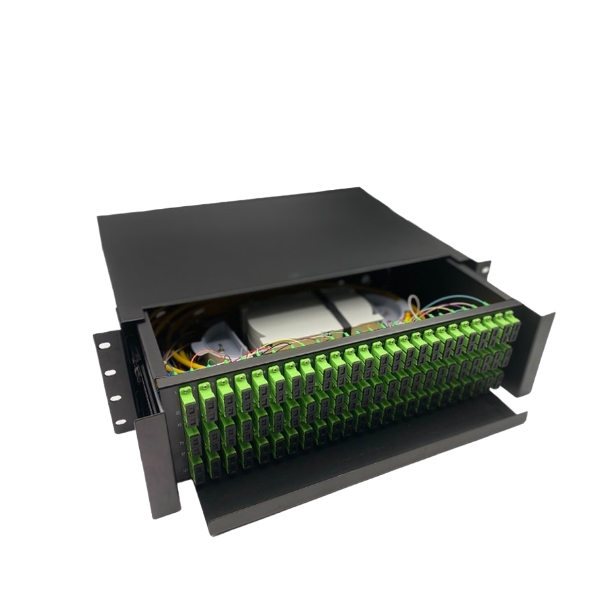

3U

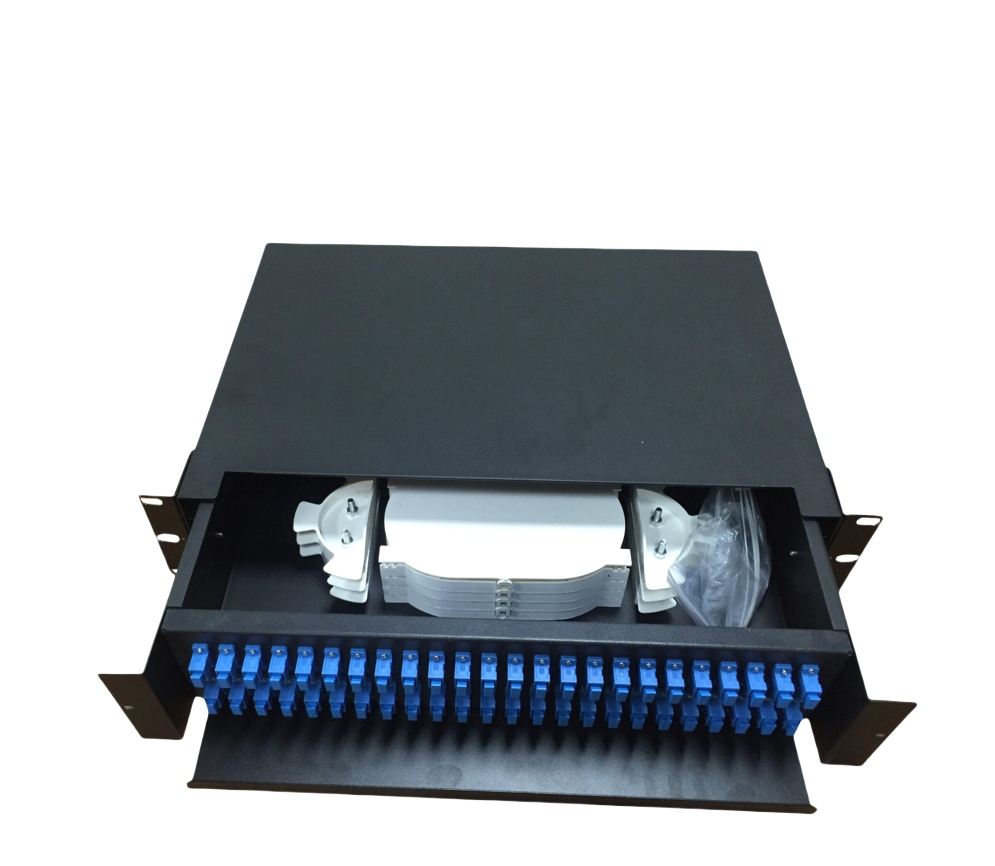

2U

Quality Certification
