192C Fiber Optic ODF with 8pcs Splice Trays

192C Fiber Optic ODF with 8pcs Splice Trays

192C Fiber Optic ODF with 8pcs Splice Trays, ODF SD-RS is sliding type fiber optic patch panel that suitable for the protective connection of loose tube optical cables or bundled pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitters and jumpers,jumpers and jumpers. It is 4U height for 96~192 fibers connection and distribution. Its bracket support

19inch or 21inch rack mounted application.

Chat Now

Description

192C Fiber Optic ODF with 8pcs Splice Trays

Applications

1) It is made of high-quality cold roll steel & the surface is sprayed with electrostatic powder.

2) The front door has a hinge, a flip-type structure with elastic door buckle locking method.

3) Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high reliability.

4) The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module, and adapter panel, which can be disassembled and interchanged.

5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There are supporting members on the side of the tray, which can be flipped, and the fiber splicing is convenient.

6) There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.

7) Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation

Specifications

Dimension(mm)	Material	Splice tray Qty	Splicing capacity	Each splice tray adapter ports
440x277x177.8	Cold roll steel chassis+ABS plastic splice tray	8pcs	Each tray with 12FO module,max.96fibers;Each tray with 24FO module,max.192 fibers	12 FC simplex,12 SC simplex, 12 LC duplex

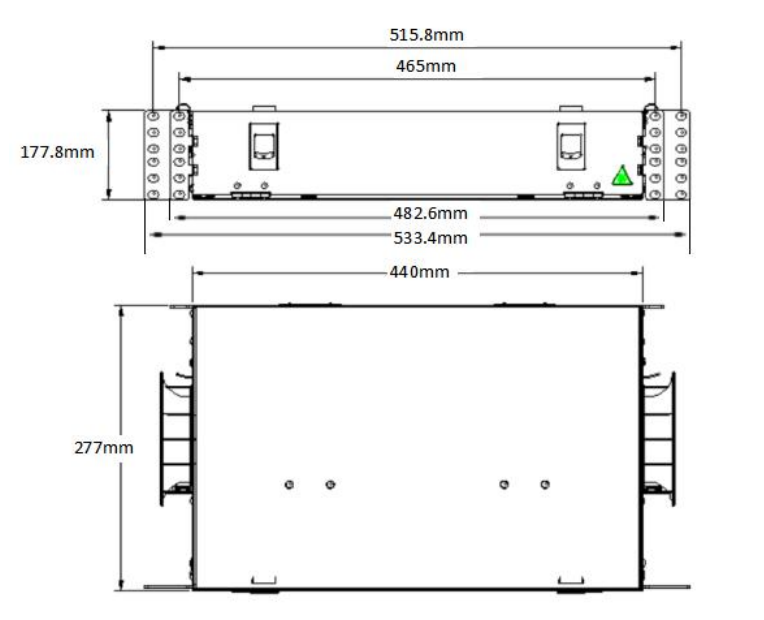

Dimension

Instruction

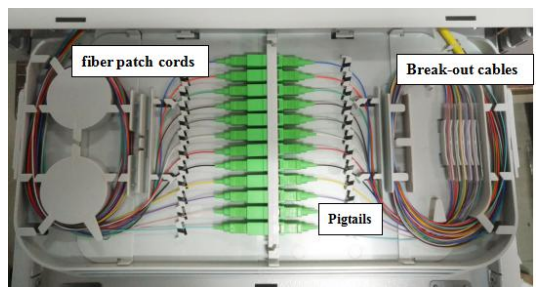

Break-out cables in & fiber patch cords out

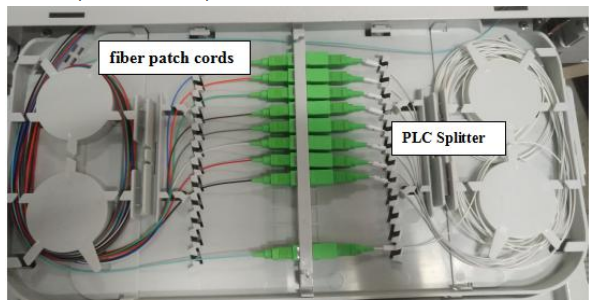

PLC splitter in & fiber patch cords out

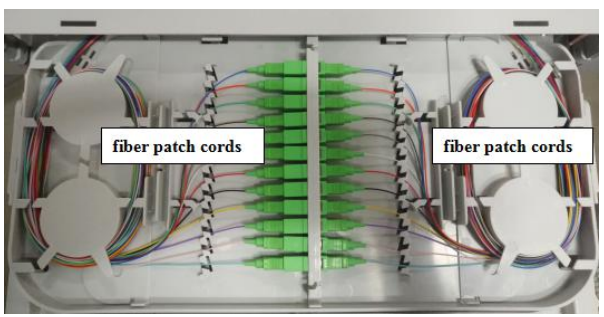

Fiber Patch Cord in & fiber patch cords out

Packing Information

1pc per carton, 59x33x22cm, net weight 11kgs
