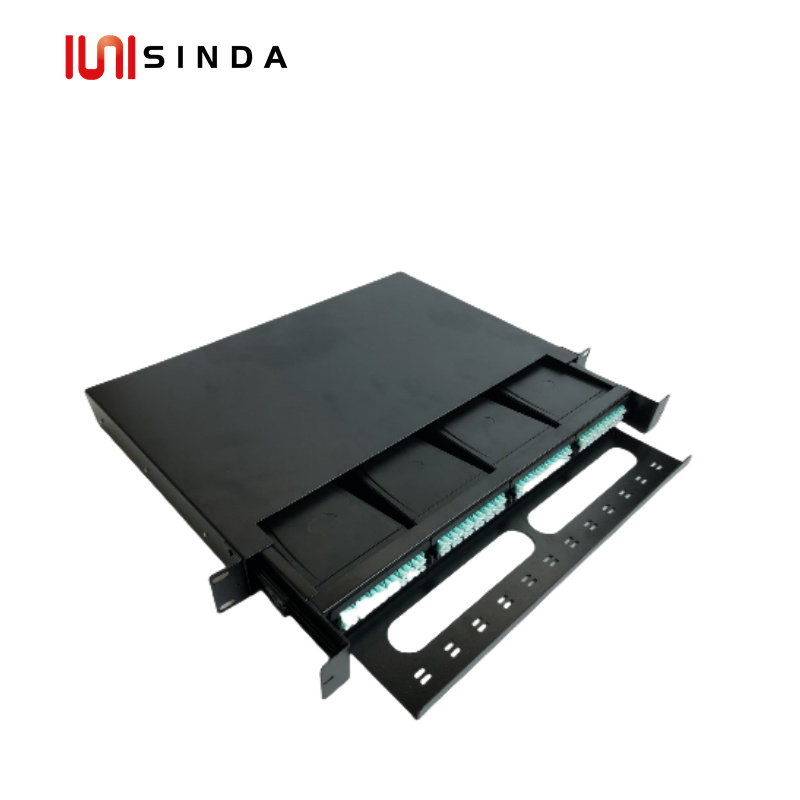

1U pull-out optical fiber distribution box

1U fiber optic distribution box, used for fiber optic trunk connection and distribution cable in the data center distribution area, installed in 19-inch racks and cabinets, can be installed with pre-connected MPO module boxes or MPO adapter panels, LC adapter panels.

Features

◆Drawer-style design, with three-section smooth rails, makes operation more flexible and smooth;

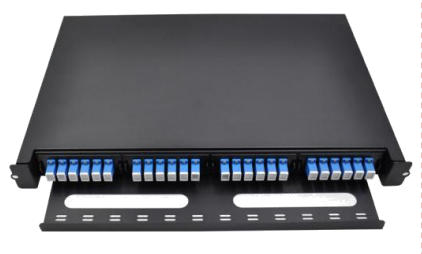

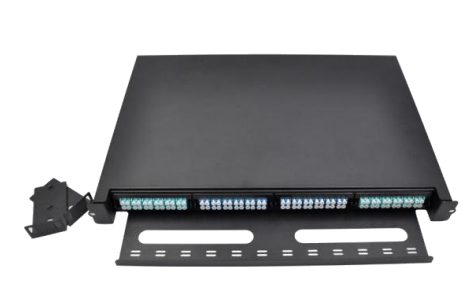

◆4 fiber adapter panels can be installed, and the maximum number of fiber cores that can be managed is 96 cores;

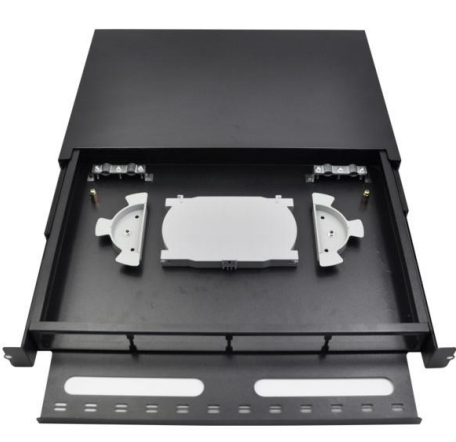

◆The conventional configuration is 2 layers of fiber splicing trays with ears, which can meet the 48-core splicing solution; 4 sets of thin fiber splicing trays can be pre-installed as required to achieve 96 cores. ◆Made of high-quality cold-rolled steel plate, the main plate thickness is 1.2mm;

◆With built-in cable tray, multiple wiring methods;
