Drawer Type Optical Patch Panel

Drawer Type Optical Patch Panel

Drawer Type Optical Patch Panel,Slidable Rack-mount Fiber Optic Distribution BOX has aluminum sliding fittings with self-locking functions prevent thedrawerfrom falling when moved;

Chat Now

Description

Description

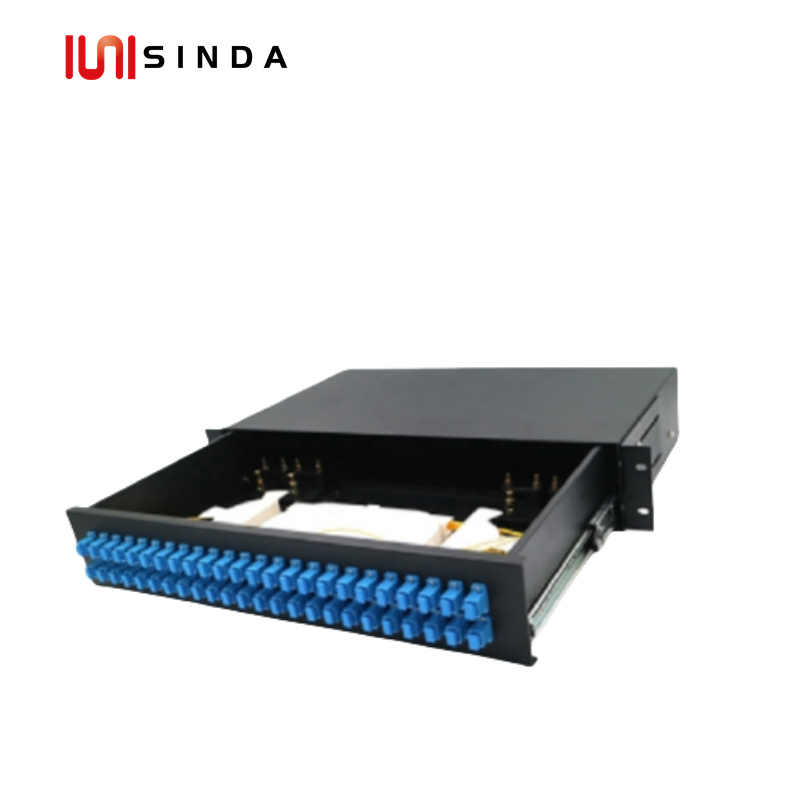

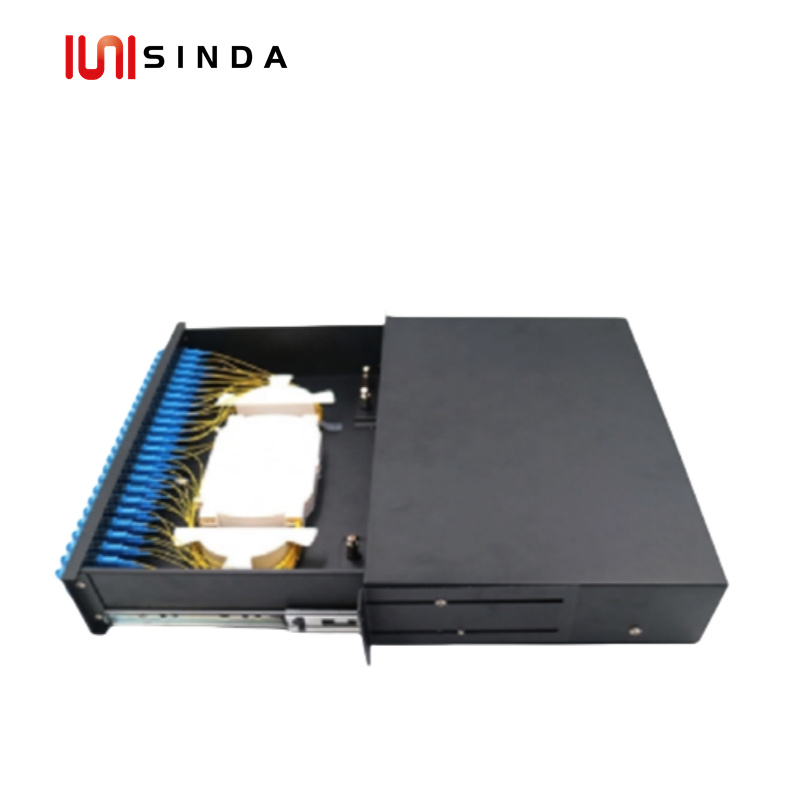

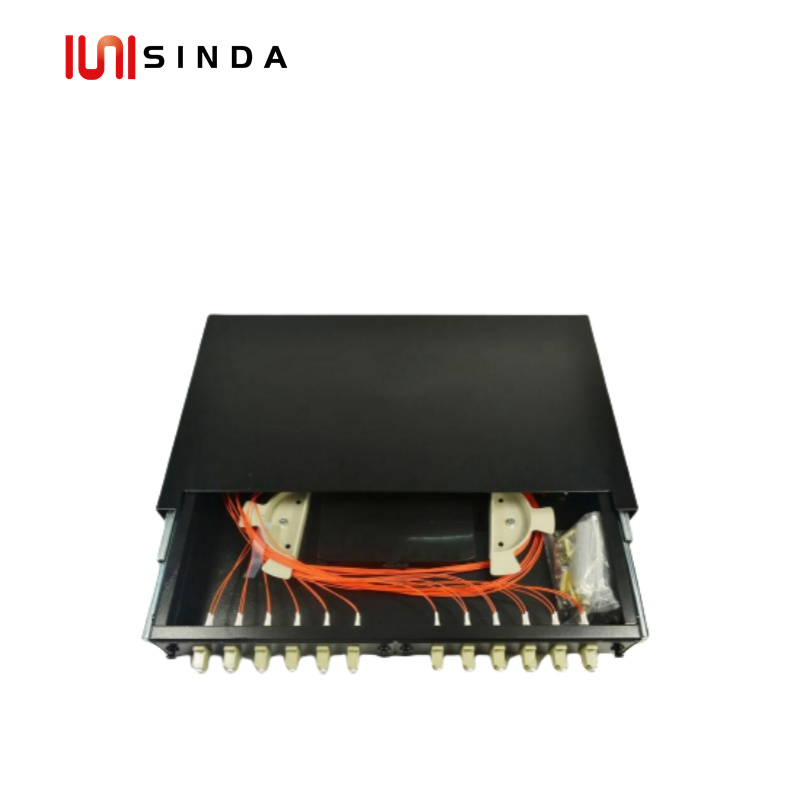

Drawer Type Optical Patch Panel

19-inch rack mount for ST, SC, LC, E2000, FC adapters. The drawer is the holding boardfor splicing,easyto withdraw the fibers when testing and distributing.The wiring box is made of cold rolled materials, and the paint surfaceadoptselectrostatic spraying method

Features

Standard size, light weight and reasonable structure.

Slide out drawer for easy cable management.

Suitable for ribbon and single fiber.

Compact design for space saving.

Various panel plate to fit different adapter interface.

Front mark on the plate is easy for identification and operation.

Easy for management and operation.

Application

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV

Mechanical and environmental characteristics

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Light Grey or Black

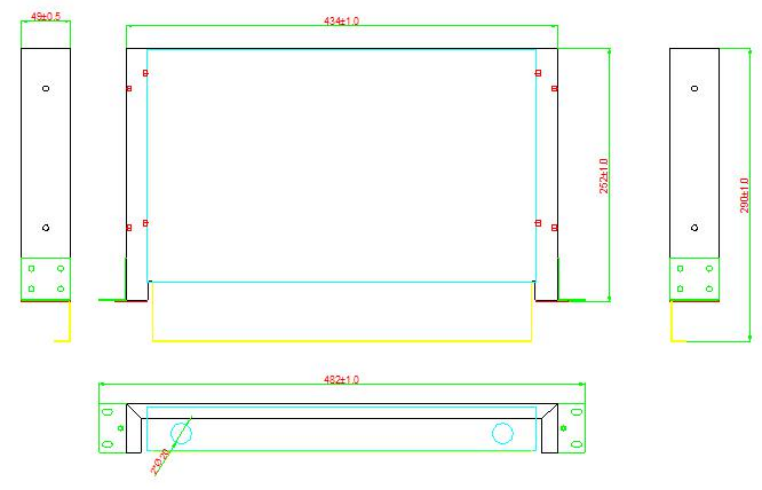

Specifications

Model NO.	Fiber Quantity		Height	Dimension	Weight(kg)
	FC,SC,ST,E2000	LC
SD005-12C	12	24	1U	48230544.5mm	3.5

Quality Certification
