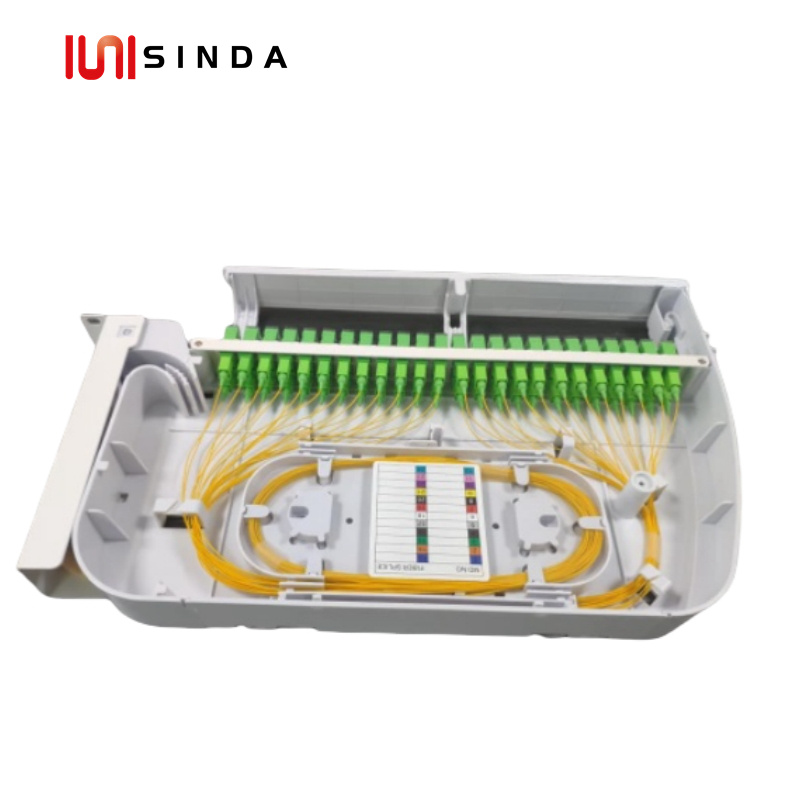

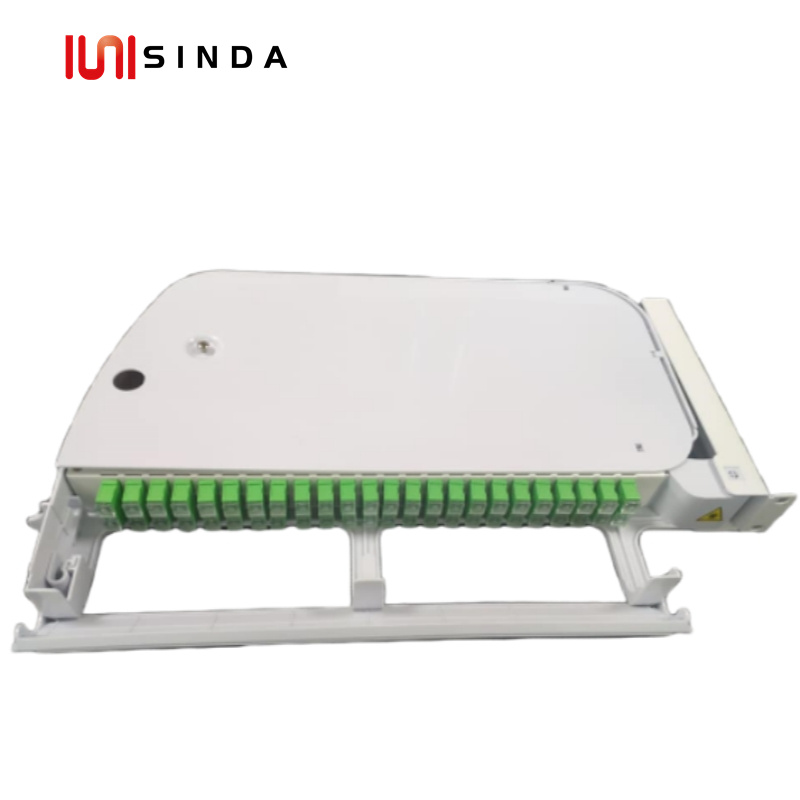

ROTARY FIBER OPTIC PATCH PANEL

ROTARY FIBER OPTIC PATCH PANEL

ROTARY FIBER OPTIC PATCH PANEL,Rotary patch panel apply to the protective connection of cable and pigtail, the Material is High quality ABS, brackets is cold rolled steel, this panel mainly installed in fiber optic cabinet and rack.

Chat Now

Description

ROTARY FIBER OPTIC PATCH PANEL

Rotary patch panel apply to the protective connection of cable and pigtail, the Material is High quality ABS, brackets is cold rolled steel, this panel mainly installed in fiber optic cabinet and rack.

Features

1）Max capacity is 120cores ( LC 4port adapters)

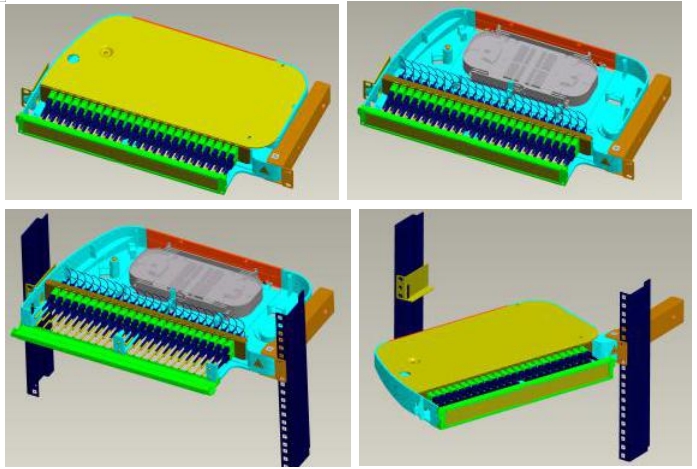

2）Special rotary design, operation convenient

3）Variety of coled-rolled steel adapter plate for choice based on different demands

4）Material is ABS plastic, light weight.

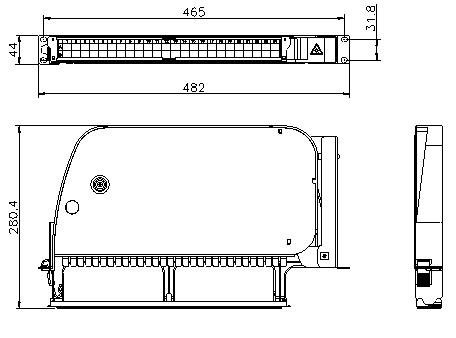

Size

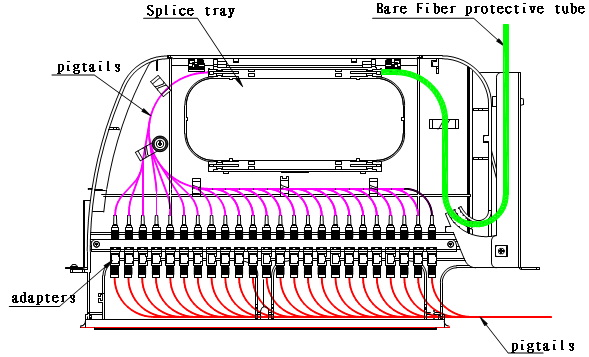

Fiber arrangement drawings

Configuration

Model	Fiber core	Adapter	Splice tray	Splice tray model
ODF-SDPRW-1U/24C	24	SC simplex	1PCS	OST-022/010G
ODF-SDPRW-1U/48C	48	SC simplex (no screw hole type)	2PCS	OST-022/010G
ODF-SDPRW-1U/120C	120	LC 4port(no screw hole type)	5PCS	OST-022

Packing info

Carton size	GW	Qty/ctn
545544cm	15KG	5pcs

Quality Certification

Hot Tags : Rotary patch panel Patch panel organization 19' Rack mount panel 19'c rotary fiber patch panel Rack mounted fiber panel ABS patch panel
