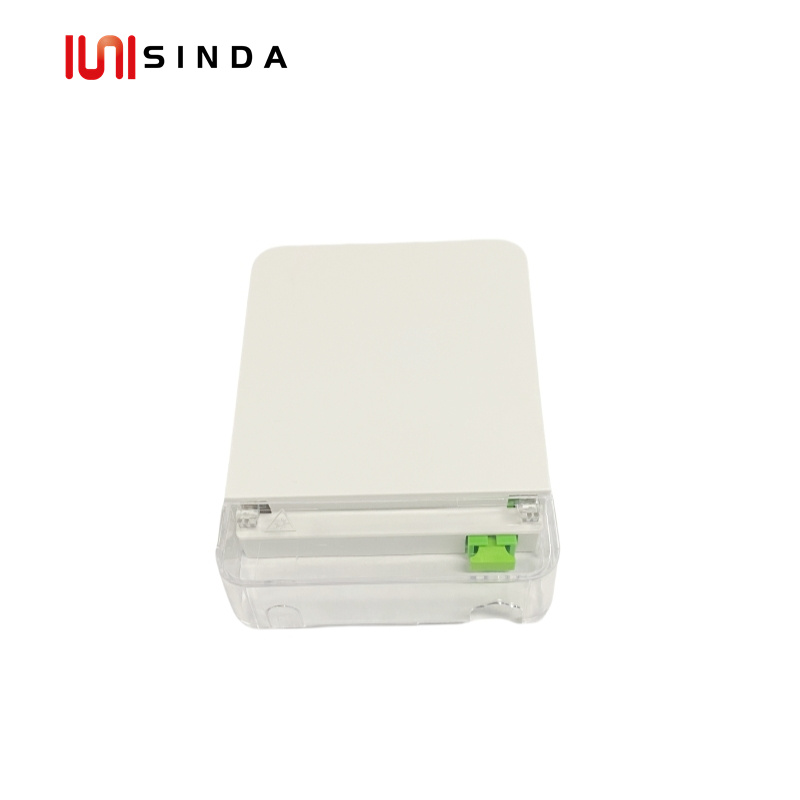

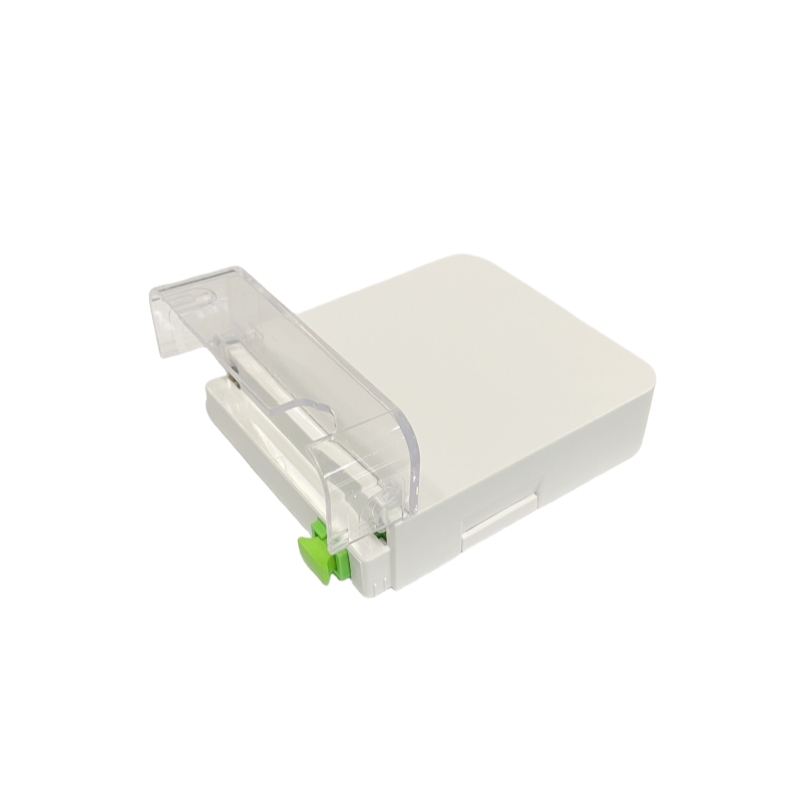

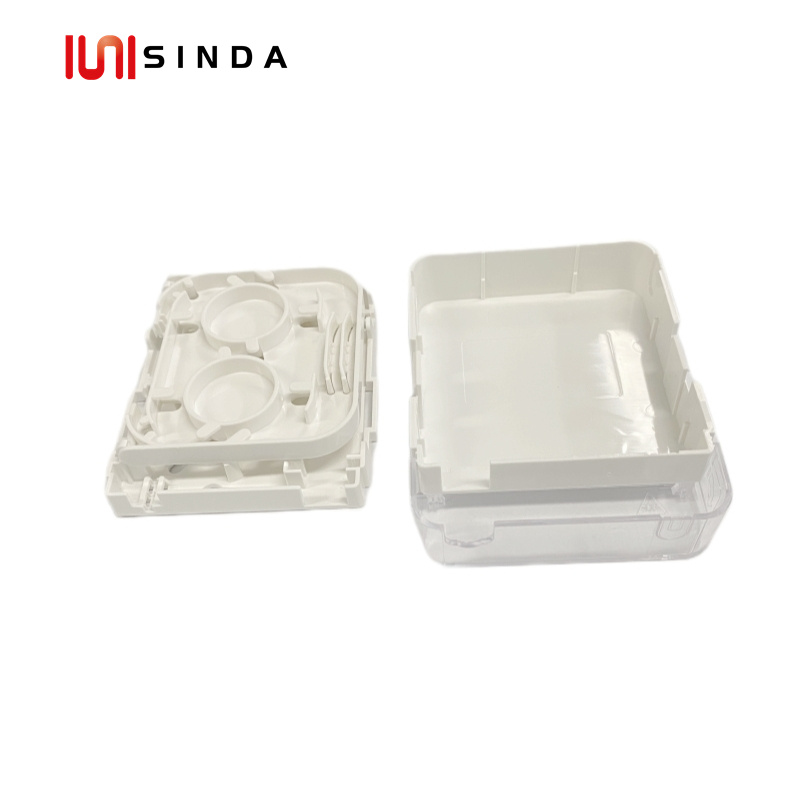

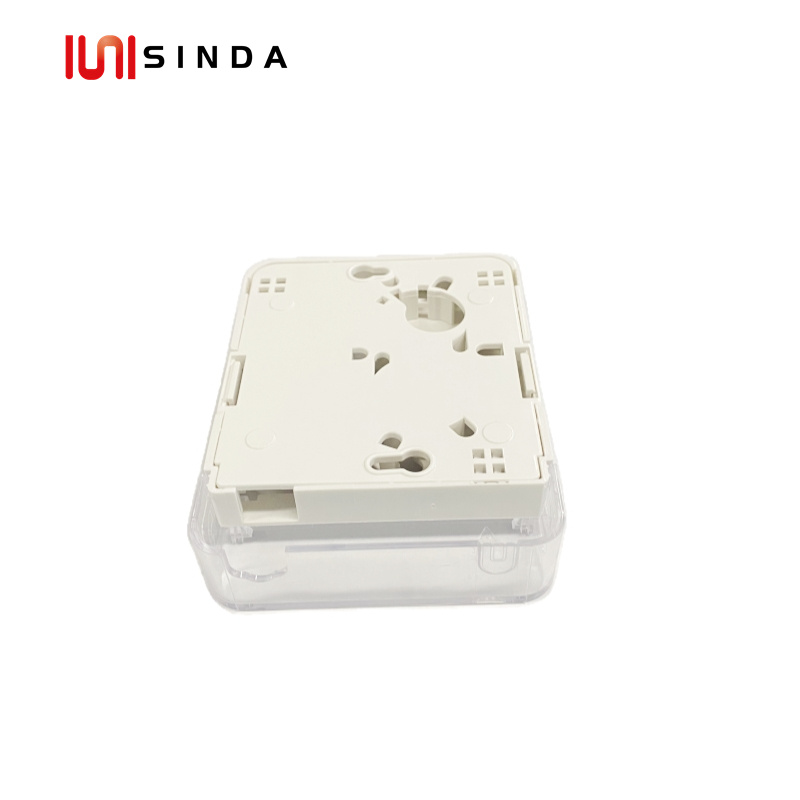

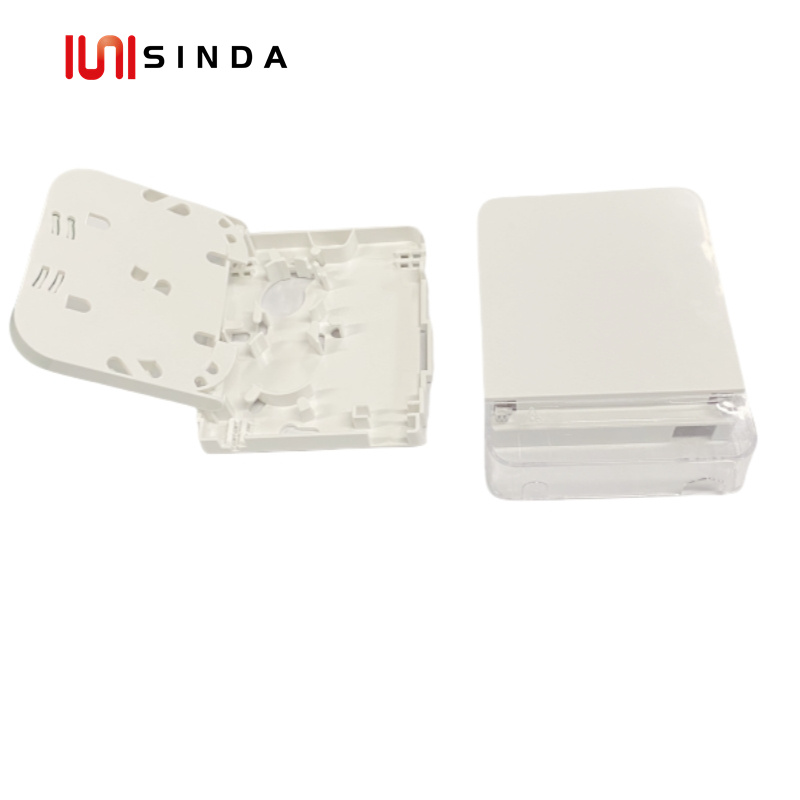

SDFRB-1A Optical Fiber Panel

SDFRB-1A Optical Fiber Panel

SDFRB-1A Optical Fiber Panel, The SDFRB-1A is a floor mounted or wall mounted termination box for end user, indoor use,capable to handle fiber fusion, fiber cables and pigtails.

Chat Now

Description

SDFRB-1A Optical Fiber Panel

The SDFRB-1A is a floor mounted or wall mounted termination box for end user, indoor use,capable to handle fiber fusion, fiber cables and pigtails.

Features & Benefits

(1).Support termination, splicing and storage for fiber optic cable systems

(2).uitable for one adapter, LC Duplex ,SC simplex or 2SC configuration，

(3).Compatible with G.657A1 and G.657B3

(4).Compact structure and perfect fiber management

(5).Engineered fiber routing protect bend radius through the unit to ensure signal integrity

(6).Applicable for wall-mounted and compatible with flush-mount outlet.

Specifications

Parameter	Value	Remark
Model	SDFRB-1A
Outside Dimension(mm)	1168623
Material	Plastic
Color	White
Storage of fibers	G.657
Splice capacity	2fiber
Splice Method	Fusion Splice	45mm sleeve
Adapter type and count	SC,2SC
Input cable	3mm or figure 8(2x3mm)	From side or bottom

Accessories

No.	Name	Qty
1	Fiber splice protection sleeve	2pcs
2	Expansion bolts for the outlet wall-mounted	2set

Quality Certification
